Buy Metabo 613216900 Chopsaw 216 mm 30 mm 1200 W

Metabo 613216900 Chopsaw 216 mm 30 mm 1200 W-1

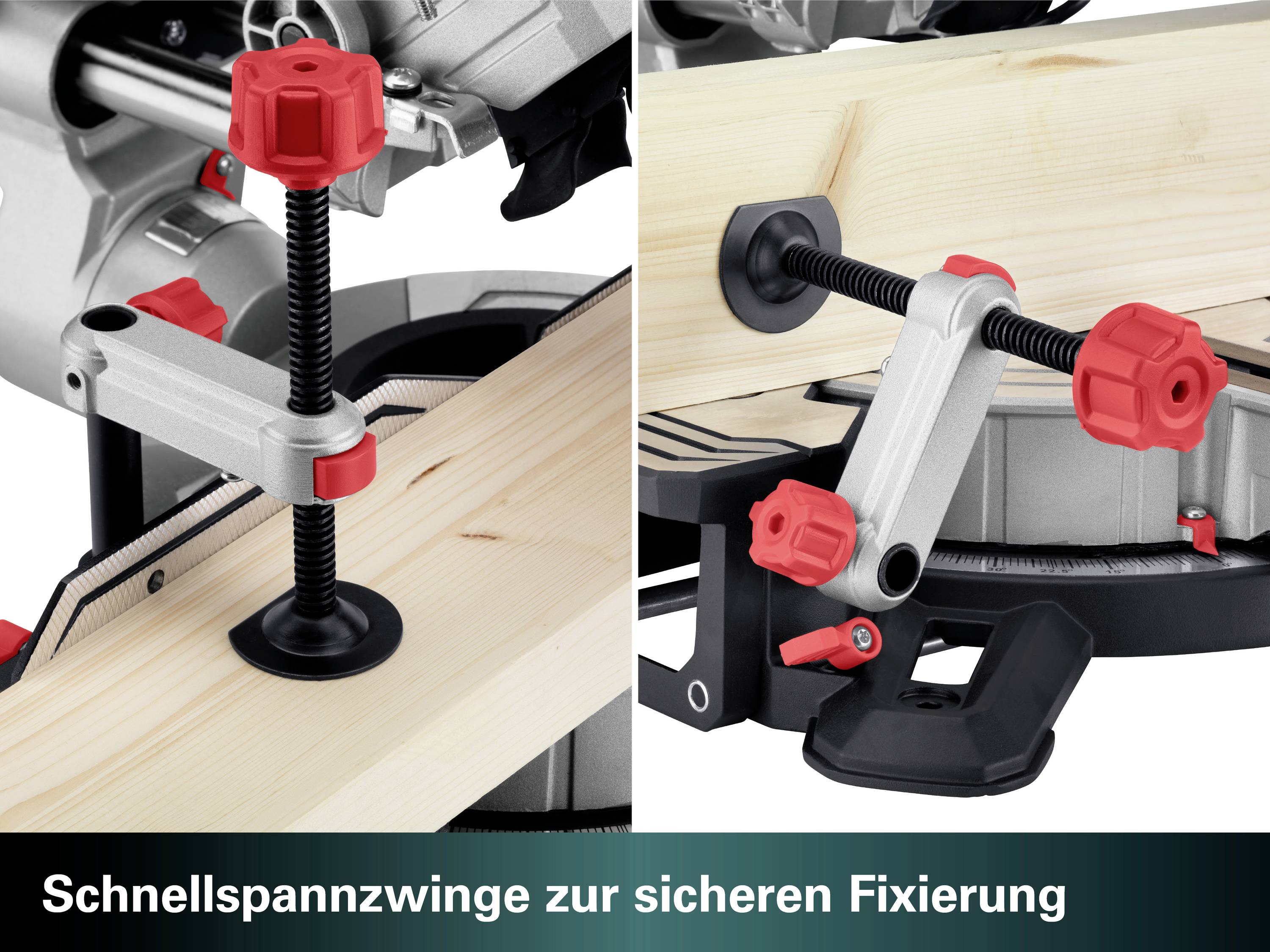

Quick-release clamp secures wood firmly on a cutting table. Two views: side view and top view. Red handles visible.

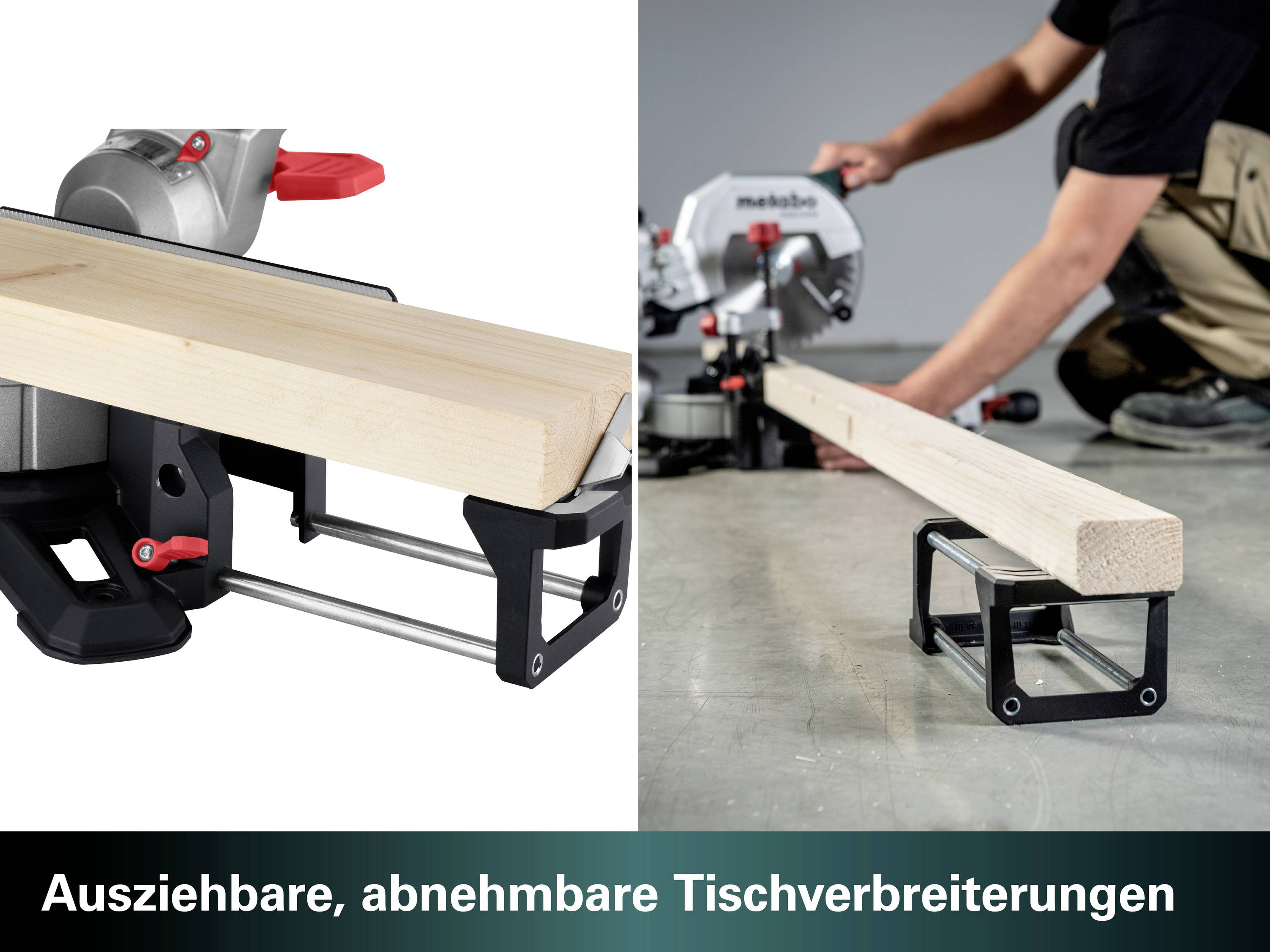

'Makita saw with extendable table extensions; one shows wood on the extension, the other in use on a concrete floor.'

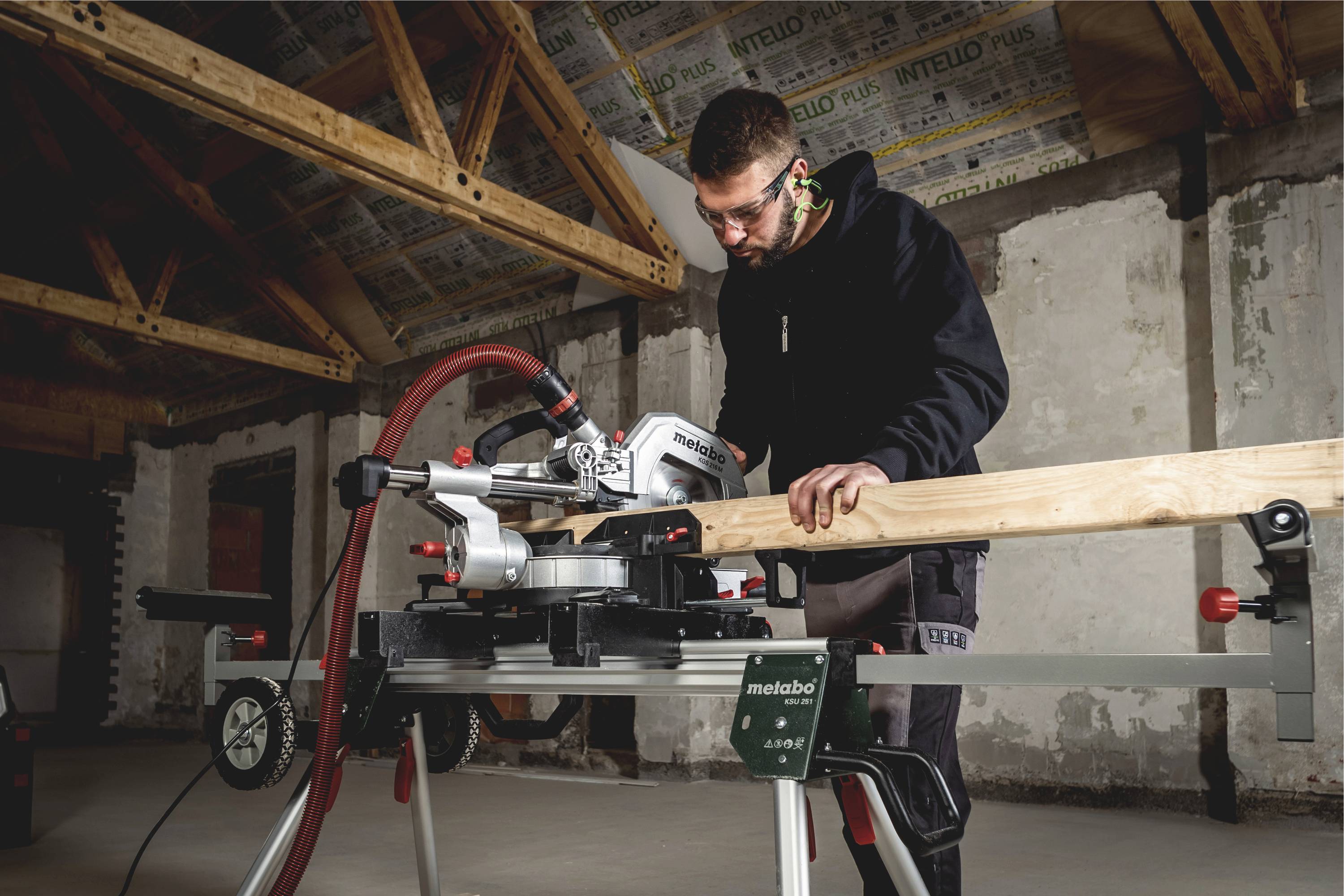

A craftsman is cutting a wooden board with a table circular saw in a workshop. The surroundings appear unfinished or under construction.

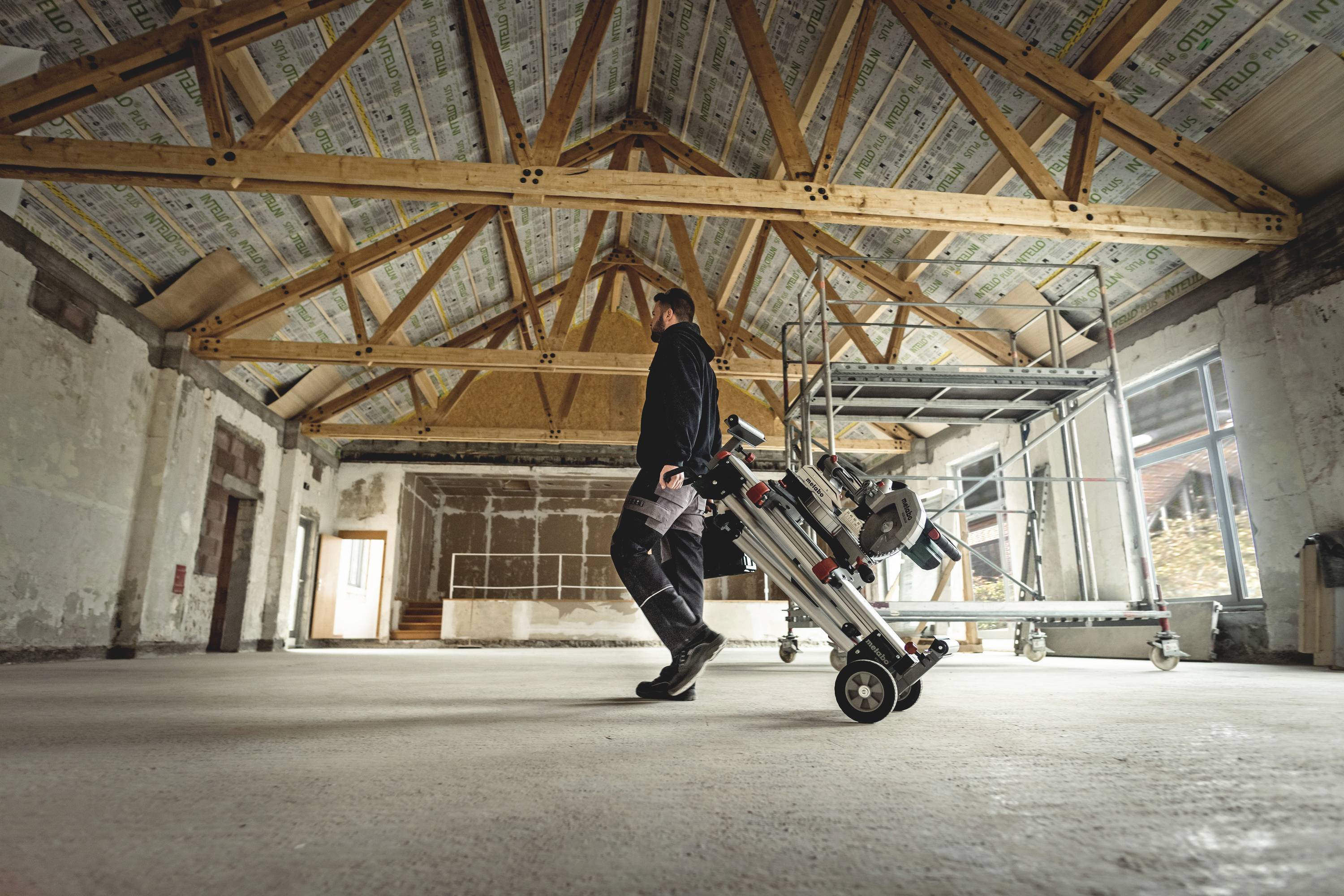

A person is pulling a large saw on wheels through an unfinished building. The room has exposed wooden beams and large windows.

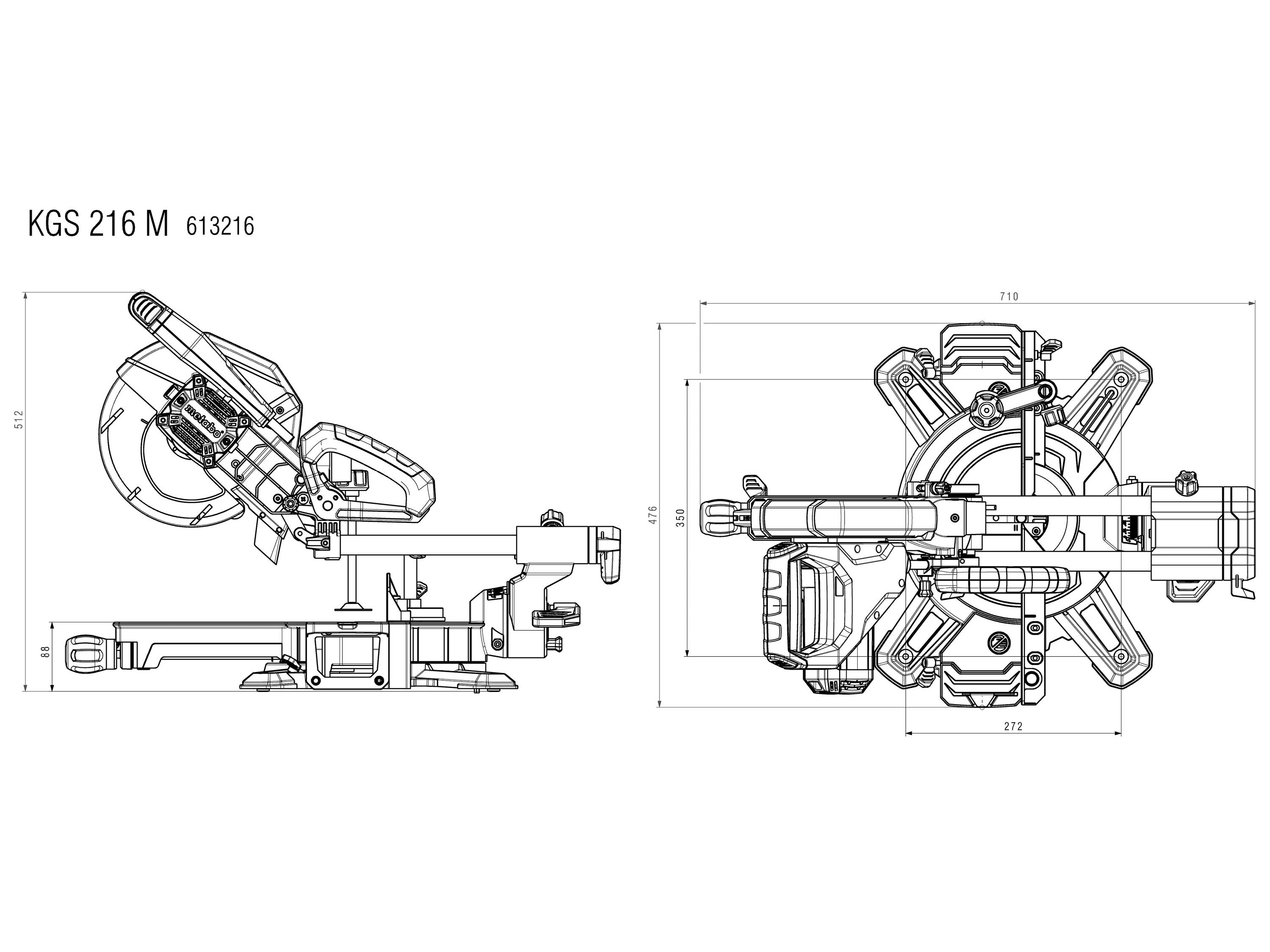

Construction drawing of a mitre saw, Model KGS 216 M, with dimensions and technical details. Top view and side view.

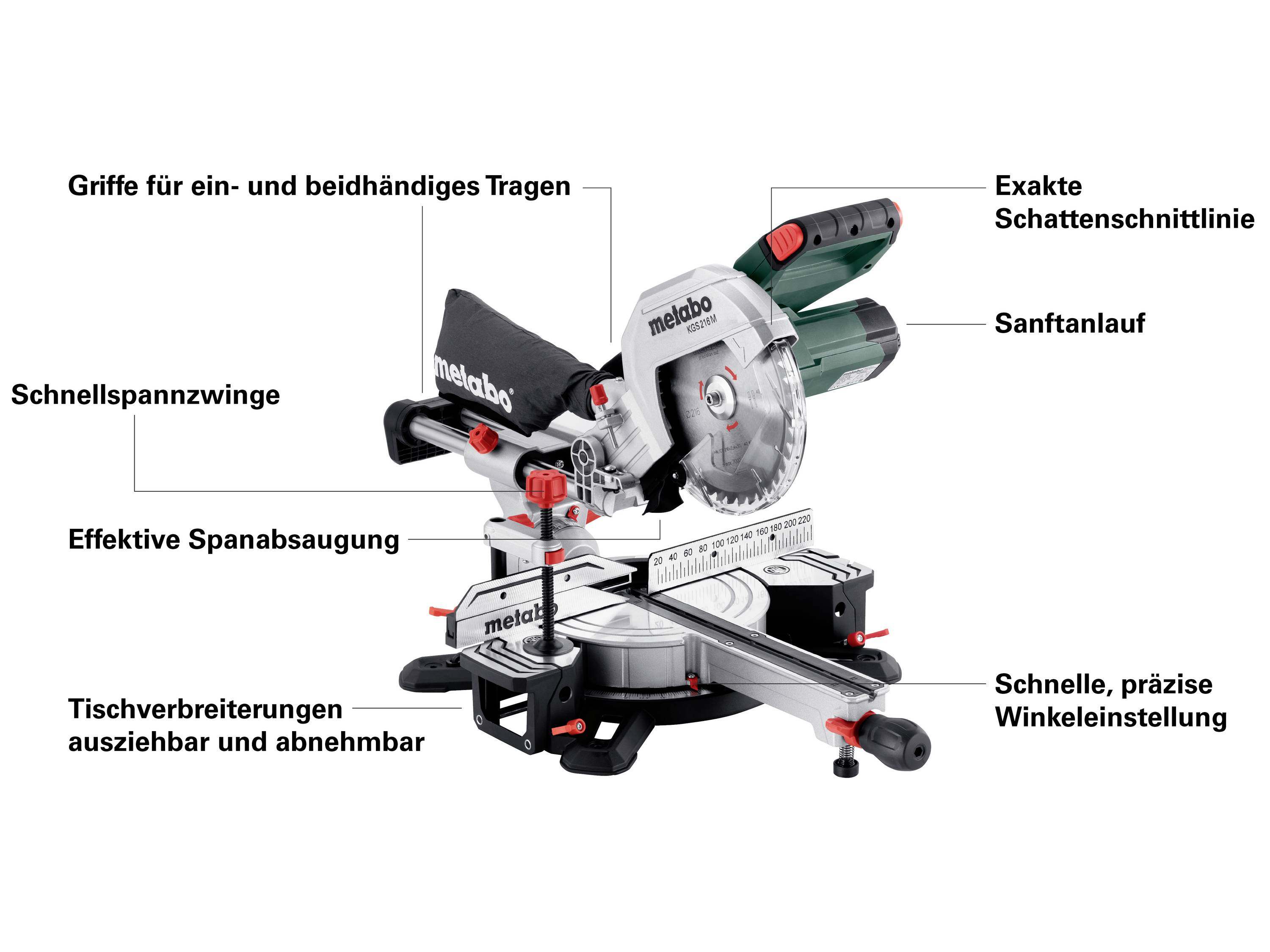

A mitre saw with excellent features: handles, quick-release clamp, dust extraction, precise shadow line, and soft start.

1/8

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 231.09 / piece)

€ 231.09

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

KGS 216 M set chopsaw

1200 W
Cutting depth (max.) (45°/ 90° ): 40 mm/70 mm

Technical specifications

Supporting surface 345 x 730 mm
Max. Cutting width 90°/45° 305/215 mm
Cutting capacity 90°/90° 305 x 70 mm
Cutting capacity 45°/45° 215 x 40 mm
Turntable setting left/right: 50 / 50 °
Saw-blade inclination left/right: 47 / 2 °
Rated power S1 100% 1200 W
Rated power S6 20% 1500 W
Speed at rated load 3750 rpm
Cuting speed 57 m/s
Cable length: 2 m

Saw blade diameter: 216 mm

Bore Ø: 30 mm

: 1200 W

Cutting depth (max.) (45°): 40 mm

Cutting depth (max.) (90°): 70 mm

Dim: (L x W x H) 710 x 476 x 512 mm

Length: 710 mm

Width: 476 mm

Height: 512 mm

Weight: 13.4 kg

Content: 1 pc(s)

Idle speed: 5000 U/min

UKCA: not relevant

Product type: Chopsaw

Documents & Downloads

Datasheet

Datasheet 2973443 Metabo 613216900 Chopsaw 216 mm 30 mm 1200 W

User & Safety Instructions

User & Safety Instructions 2973443 Metabo 613216900 Chopsaw 216 mm 30 mm 1200 W

Description

Chop and miter saw from mobile M class with train function - light, precise, user-friendly. Precision Cut Line (PCL): Exact shadow cutting line without adjusting by cleverly placed LED.

This text is machine translated.

Features

Large cutting capacity by traction function for broad work pieces
Turntable with fast, precise setting of common angles via locking points
Saw-blade inclination of -2 to 47°, as such suitable for rear-cuts
Robust design made of die-cast aluminum for the toughest requirements
Effective chip-suction via the integrated chip-collection funnel
Soft start for long life of motor and gear
Detachable table extensions, also detachable for placing extremely long work pieces
Quick clamp to securely fix the work piece from above or from the front
Depth stop for easy creation of grooves
All scales and control elements can be viewed and used intuitively from the working position

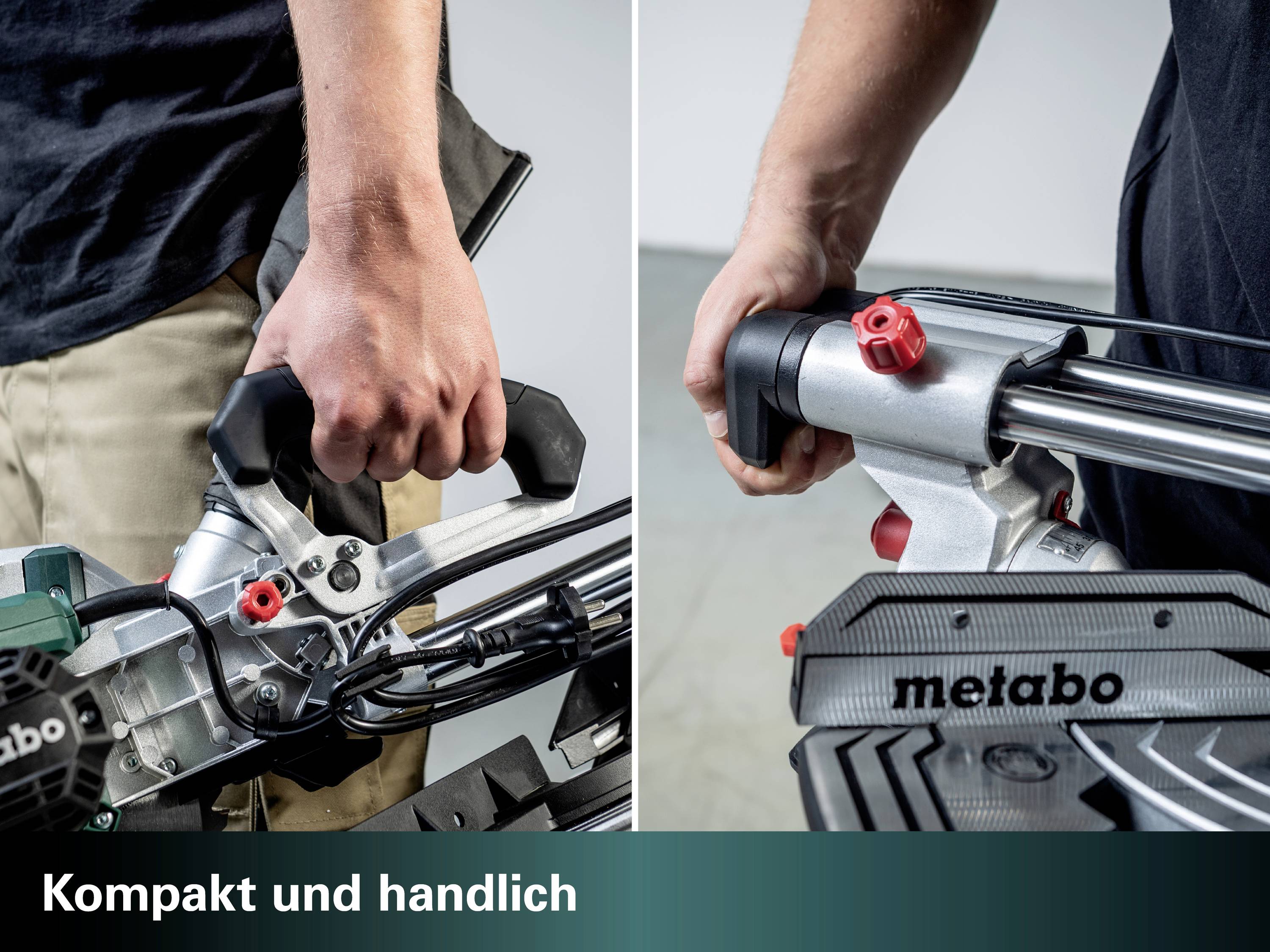

Ergonomic grip for one or both-handed carrying
