Name: Metrix AX 1360 Bench PSU (adjustable voltage) 0 - 30 5 - 6 A USB programmable No. of outputs 3 x
Brand: Metrix
SKU: 1925311
Availability: BackOrder

Laboratory power supply with digital display showing two channels: CH1 with '10.0' volts and '0.30' amperes, CH2 with '20.0' volts and '0.60' amperes.

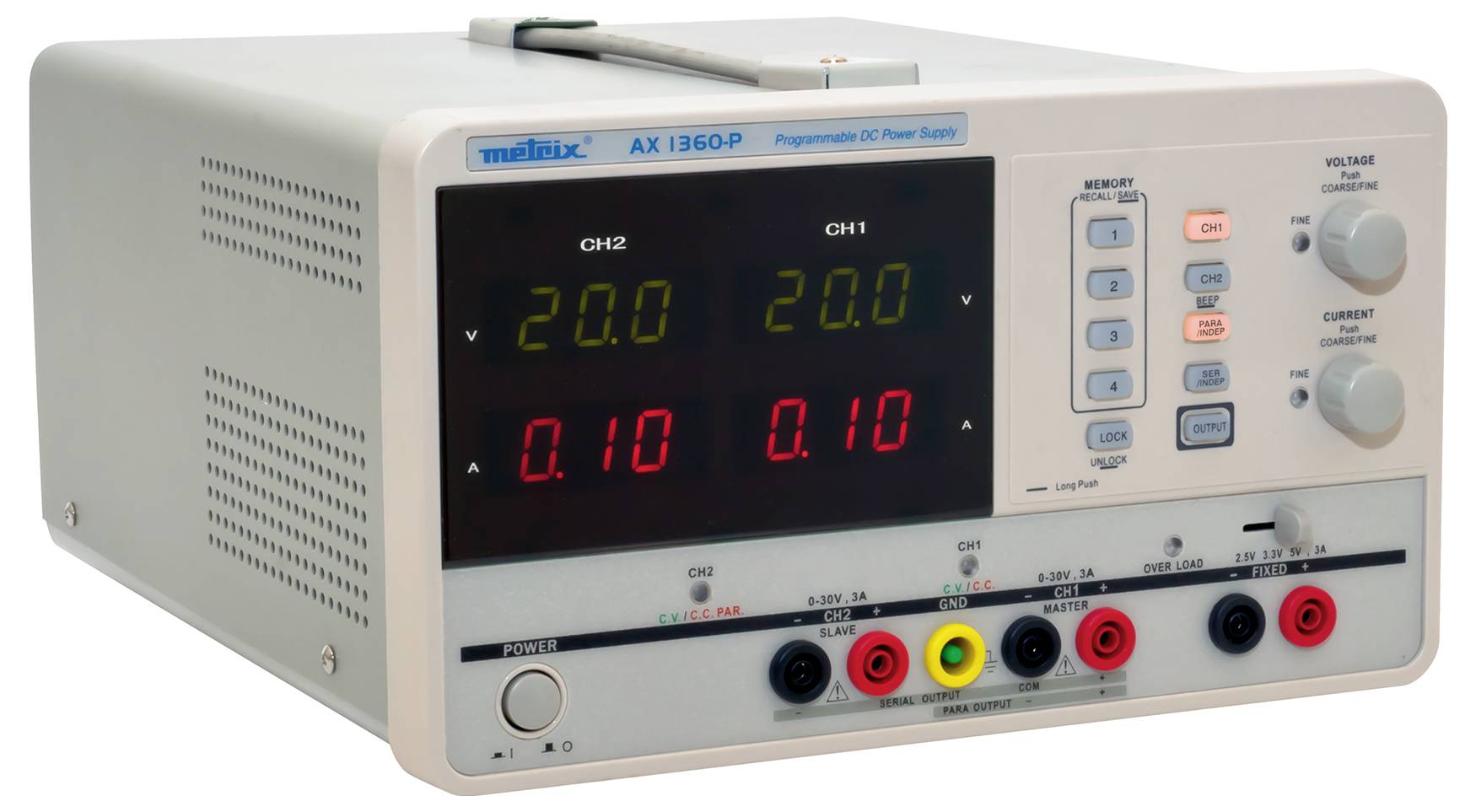

Laboratory power supply with two channels. LCD displays voltage of 20V and current of 0.10A for both channels. Control buttons and connectors visible.

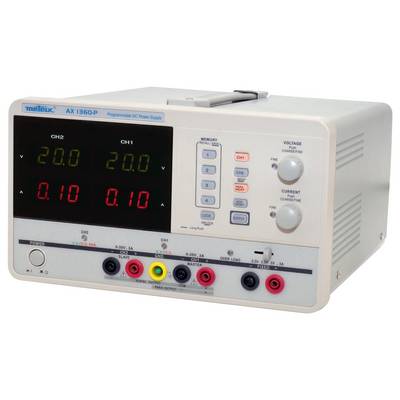

Programmable DC power supply with two channels, displaying a voltage of 20.0V and current of 0.10A per channel. Controls visible.

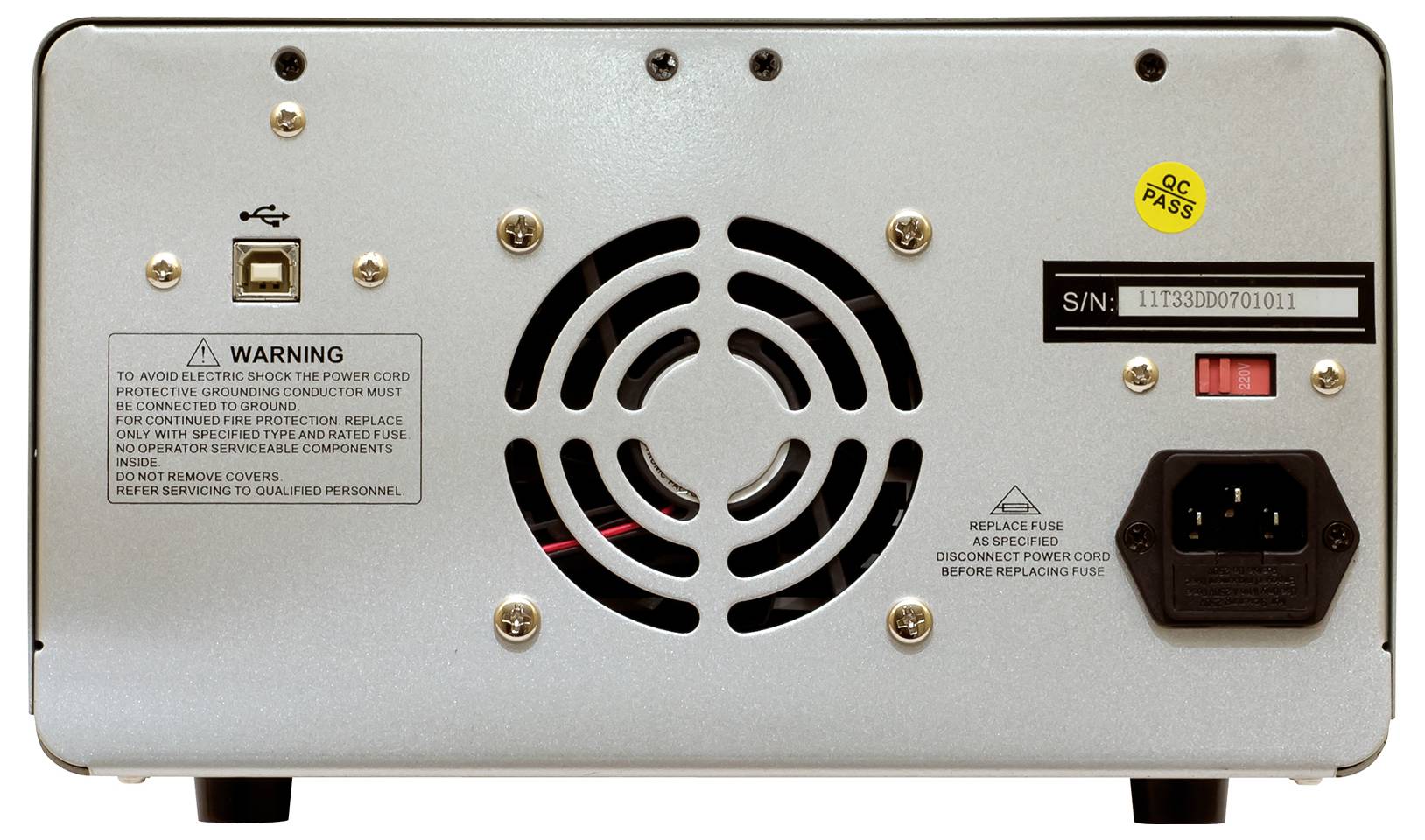

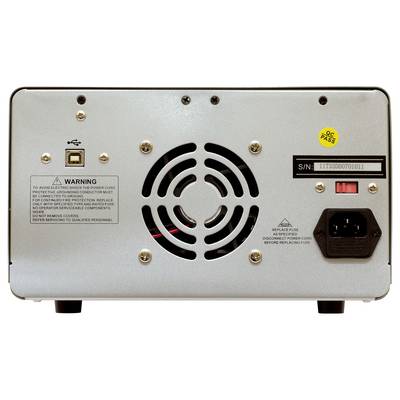

The rear of an electrical device with a fan in the centre, USB and power connection on the right, warning label in the top left.

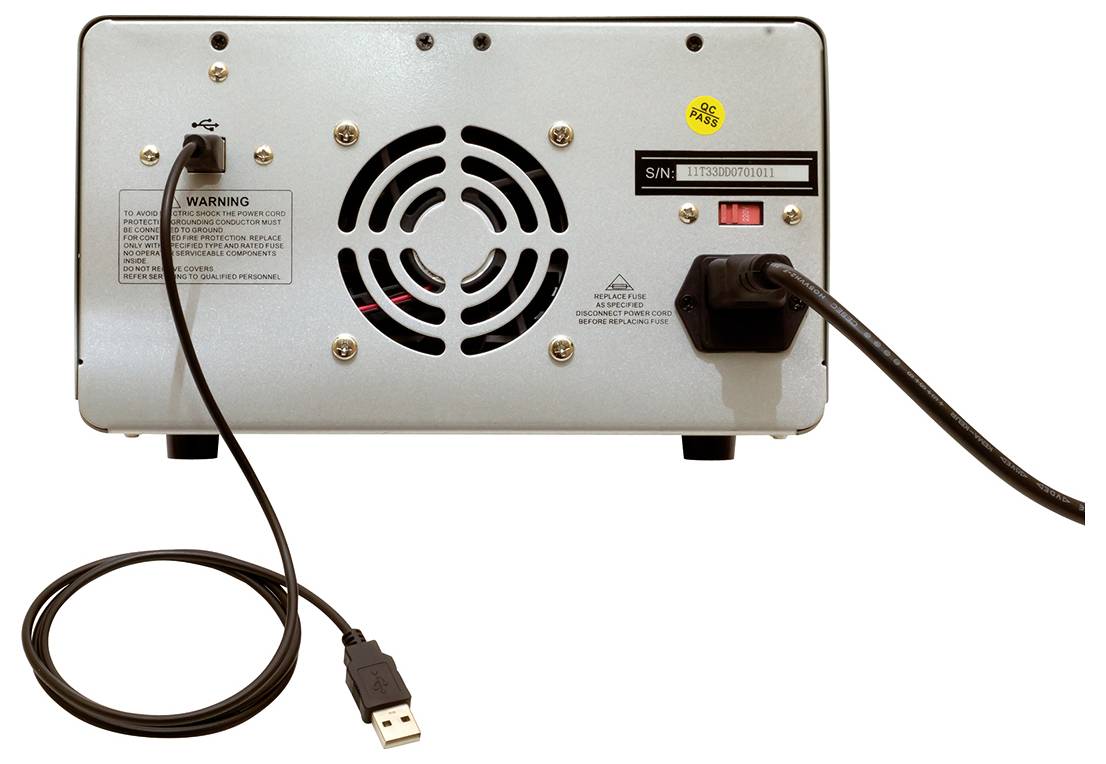

Back of an electronic device with ventilation grille, cable connections, and USB cable; warning notices and serial number visible.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,279.00 / piece)

€ 1,279.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

AX 1360-P - controlled, programmable laboratory power supply

No. of outputs 3 x
0 - 30 / 5 - 6 A
0 - 30 V / 5 - 10 A
2.5 - 5 V / 3 A
USB
programmable

Technical specifications

Accuracy voltage: ±(0.5 % display + 2 digits)
Accuracy current: ±(0.5 % display + 5 digits)

Type: AX 1360

Product type: Bench PSU (adjustable voltage)

No. of outputs: 3 x

Interfaces: USB

Features: programmable

Dim: (L x W x H) 150 x 310 x 250 mm

: Manufacturer's standards (no certificate)

Weight: 7500 g

Output: USB

Output voltage (max.): 30 V

Output voltage (min.): 0 V

Output voltage 2 (max.): 30 V

Output voltage 2 (min.): 0 V

Output voltage 3 (max.): 5 V

Output voltage 3 (min.): 2.5 V

Max. output current: 6 A

Output current (min.): 5 A

Output current 2 (max.): 10 A

Output current 2 (min.): 5 A

Output current 3 (max.): 3 A

Output current 3 (min.): 3 A

Width: 310 mm

Height: 250 mm

Length: 150 mm

Residual ripple: <1 mV RMS

Documents & Downloads

Datasheet

Datasheet 1925311 Metrix AX 1360 Bench PSU (adjustable voltage) 0 - 30 5 - 6 A USB programmable No. of outputs 3 x

User & Safety Instructions

User & Safety Instructions 1925311 Metrix AX 1360 Bench PSU (adjustable voltage) 0 - 30 5 - 6 A USB programmable No. of outputs 3 x

Description

This regulated, programmable laboratory power supply was developed especially for research and development laboratories, as well as for test laboratories in electrical engineering and electronics. This device also finds its place in production and training. The AX 1360-P is very easy to use: The outputs can be connected in series or parallel without cable by simply pressing a button with automatic adjustment of the operating mode. Through current limitation and display with red LED, the device offers short-circuit protection as well as an overcurrent protection through safety fuse.

This text is machine translated.

Features

Display: Digital with LEDs – voltage and current simultaneously and in color
Setting of voltage/current: Output 1 and 2 by rotary knob, output 3 by sliding switch

Scope of delivery

1 mains connection cable
1 USB cable
1 software on CD-Rom
1 user manual
