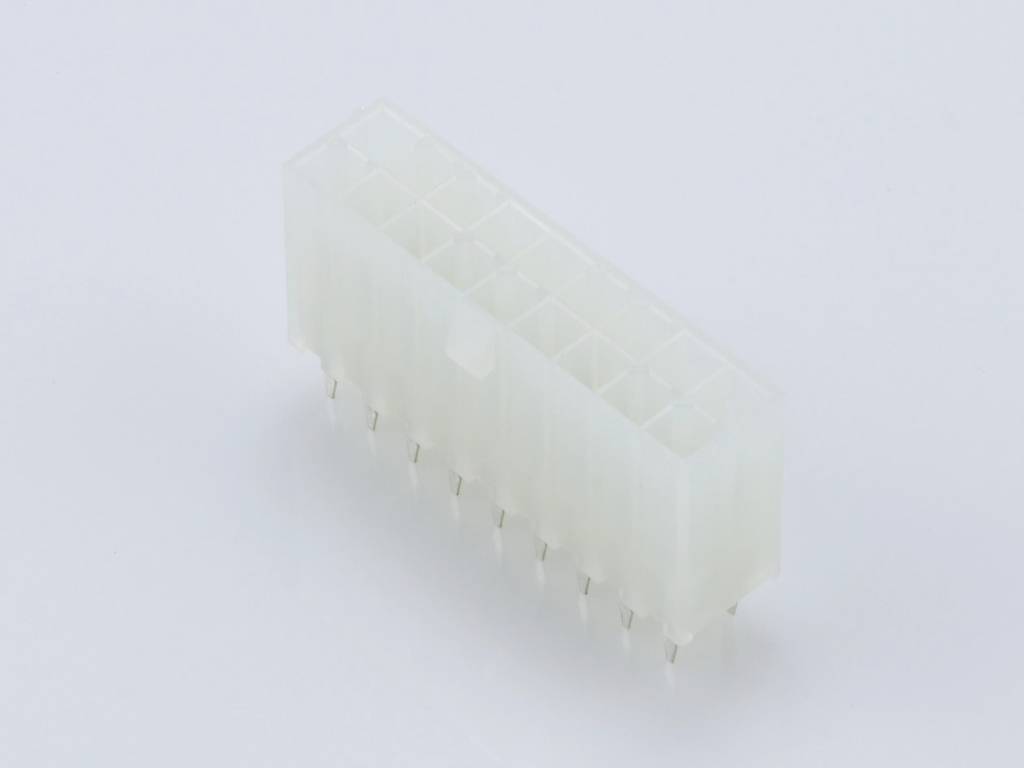

Molex Built-in SIL socket (standard) Total number of pins 18 Contact spacing: 4.2 mm 39281183 1 pc(s) Bag
Product type
Built-in SIL socket (standard)
No. of rows
2
CS
4.2 mm
Total number of pins
18
Packaging type
Bag
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2.29 / piece)
€ 2.29
incl. VAT
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 18
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in SIL socket (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
4.2 mm
- Total number of pins
18
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
0.889 µm
- Connector coating thickness
0.889 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
39281183
- Factory colour
Ecru
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5566-18A
- Engineering Series Name
MINIFIT JR HDR VERT
- Engineering Series No
05566
Documents & Downloads
Datasheet
Datasheet 2448363 Molex Built-in SIL socket (standard) Total number of pins 18 Contact spacing: 4.2 mm 39281183 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2448363 Molex Built-in SIL socket (standard) Total number of pins 18 Contact spacing: 4.2 mm 39281183 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448363 Molex Built-in SIL socket (standard) Total number of pins 18 Contact spacing: 4.2 mm 39281183 1 pc(s) Bag
Description
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 18 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
