Molex Molex MOL Power & Signal Sol. 1727040163 D-SUB plug Number of pins: 9 Soldering 1 pc(s) Carton
EAN:
Part number:
Item no:
Packaging type
Carton
Product type
D-SUB plug
Connector type
Socket
Number of pins
9
Connection
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Highlights & Details
D-Sub
- D-SUB plug
- No. of rows: 2
- Number of pins: 9
Technical specifications
- Shielding: YesConnections (equipped): 9Type of front panel mounting: FlangeWire size AWG: 20Front panel mounting: Can be used from the rearMaximum current per connection: 7.5AOrientation: Straight
- Packaging type
Carton
- Product type
D-SUB plug
- Connector type
Socket
- Number of pins
9
- Connection
Soldering
- No. of rows
2
- Content
1 pc(s)
- Mating cycles
200
- Manufacturer part #
1727040163
- Factory colour
White
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- CS
2.84 mm
- RoHS-compliant
Yes
IP20
- Temperature range
-55° - +125 °C. °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
F09S0G2
- Engineering Series Name
FCT GENERAL
- Engineering Series No
172704
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2447527 Molex Molex MOL Power & Signal Sol. 1727040163 D-SUB plug Number of pins: 9 Soldering 1 pc(s) Carton
User & Safety Instructions
User & Safety Instructions 2447527 Molex Molex MOL Power & Signal Sol. 1727040163 D-SUB plug Number of pins: 9 Soldering 1 pc(s) Carton
Description

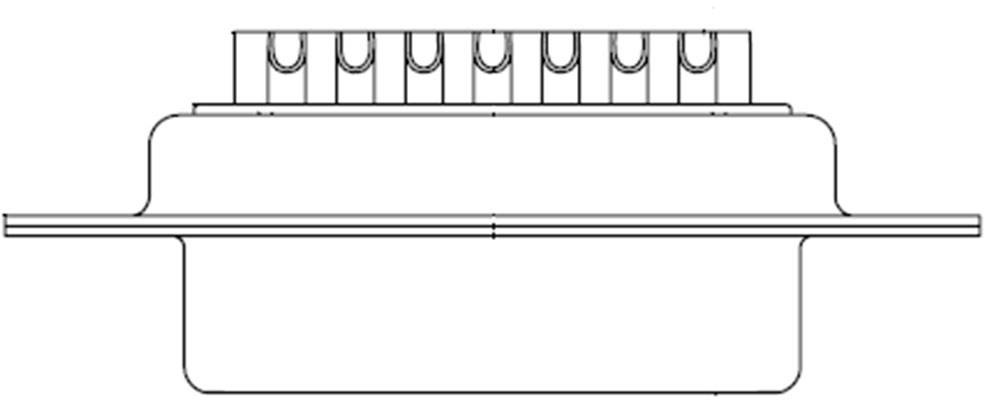

FCT Standard-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 9 Circuits, White Insulator
