Molex Molex MOL Power & Signal Sol. 1727040170 D-SUB plug Number of pins: 25 Soldering 1 pc(s) Carton

A 36-pin Centronics connector, typically used for printers or other peripheral devices, with two mounting screws.

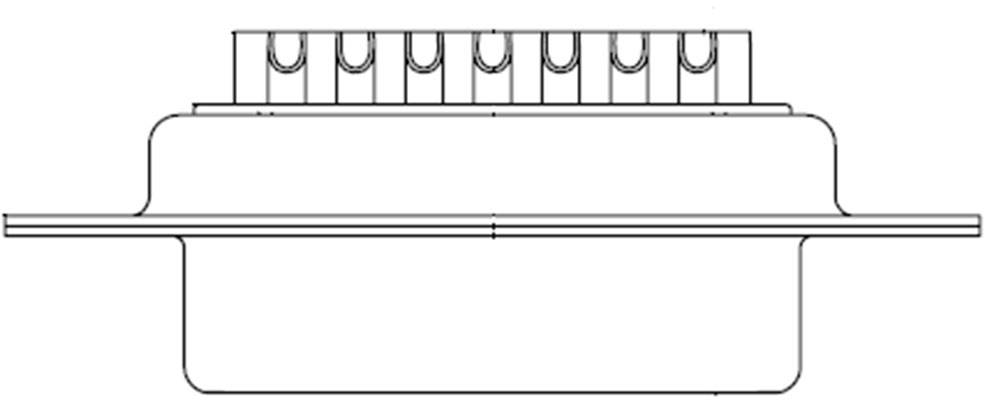

Technical drawing of a rectangular connector with multiple contact pins, side view.
1/2
Image similar
Packaging type
Carton
Product type
D-SUB plug
Connector type
Plug
Number of pins
25
Connection
Soldering
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
41 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.29 / piece)
€ 3.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

D-Sub

  • D-SUB plug
  • No. of rows: 2
  • Number of pins: 25

Our service for you

Technical specifications

  • Shielding: YesConnections (equipped): 25Type of front panel mounting: FlangeWire size AWG: 20Front panel mounting: Can be used from the rearMaximum current per connection: 7.5AOrientation: Straight
Packaging type

Carton

Product type

D-SUB plug

Connector type

Plug

Number of pins

25

Connection

Soldering

No. of rows

2

Content

1 pc(s)

Mating cycles

200

Manufacturer part #

1727040170

Factory colour

White

Contact material

Copper alloy

Contact surface

Gold on nickel

CS

2.84 mm

RoHS-compliant

Yes

IP20

Temperature range

-55° - +125 °C. °C

Type

Molex MOL Power & Signal Sol.

Engineering Part No

F25P0G2

Engineering Series Name

FCT GENERAL

Engineering Series No

172704

Documents & Downloads

Datasheet

Datasheet 2447530 Molex Molex MOL Power & Signal Sol. 1727040170 D-SUB plug Number of pins: 25 Soldering 1 pc(s) Carton

User & Safety Instructions

User & Safety Instructions 2447530 Molex Molex MOL Power & Signal Sol. 1727040170 D-SUB plug Number of pins: 25 Soldering 1 pc(s) Carton

Description

FCT Standard-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 25 Circuits, White Insulator
