Name: Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200922 1 pc(s) Tray
Brand: Molex
SKU: 2450565
Availability: InStock

Two black plastic plugs with silver metal contacts placed side by side, on a light background. Electronic connection components.

'Row header pin strip with seven pins in a single line, drawn in perspective.'

1/2

Image similar

Packaging type

Tray

Product type

Pin strip (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

833 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Multiple: 1

Total (€ 1.14 / piece)

€ 1.14

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

C-GRID 111

Content 1 pc(s)
No. of rows 1
Pins per row 2

Technical specifications

Breakaway: YesRecommended PCB thickness: 1.6 mmProcess temperature max. 235 °C.

Packaging type: Tray

Product type: Pin strip (standard)

No. of rows: 1

Pins per row: 2

Total number of pins: 2

CS: 2.54 mm

Connection: Soldering

Factory colour: Black

Nominal voltage: 350 V DC/AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Au (gold)

Contact material: Brass

Case material: Polyester

Separable: Yes

Connector orientation: Perpendicular (to the PCB)

Manufacturer part #: 901200922

Content: 1 pc(s)

RoHS-compliant: Yes

Max. temperature: +125 °C

Min. temperature: -55 °C

Type: Molex MOL Power & Signal Sol.

Engineering Part No: 90120-0922

Engineering Series Name: SR HDR VERT

Engineering Series No: 90120

Leading contact (PE): No

Connector contact surface: Gold

Board contact surface: Ni

Mating cycles: 500

Connector coating thickness: 0.762 µm

Range of uses: Signal, cable to PCB

Pin length: 2.9 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Total number of pins

Contact surface

Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200922 1 pc(s) Tray

Item no:2450565

Dispatches on Thu 5 Nov

833 Piece(s)Conrad Electronic

This article

Au (gold)

Piece(s)

Minimum order quantity: 250

Multiple: 1

€ 1.29^*

Molex Pin strip (standard) No. of rows: 1 901200767 1 pc(s) Tray

Item no:2450561

Dispatches on Thu 5 Nov

2802 Piece(s)Conrad Electronic

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.29^*

Molex Pin strip (standard) No. of rows: 1 Pins per row: 1 901200121 1 pc(s) Tray

Item no:2450545

Dispatches on Thu 5 Nov

101965 Piece(s)Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 250

Multiple: 1

€ 0.29^*

Molex Pin strip (standard) No. of rows: 1 Pins per row: 1 901200136 1 pc(s) Tray

Item no:2450553

Dispatches on Thu 5 Nov

4593 Piece(s)Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 2.79^*

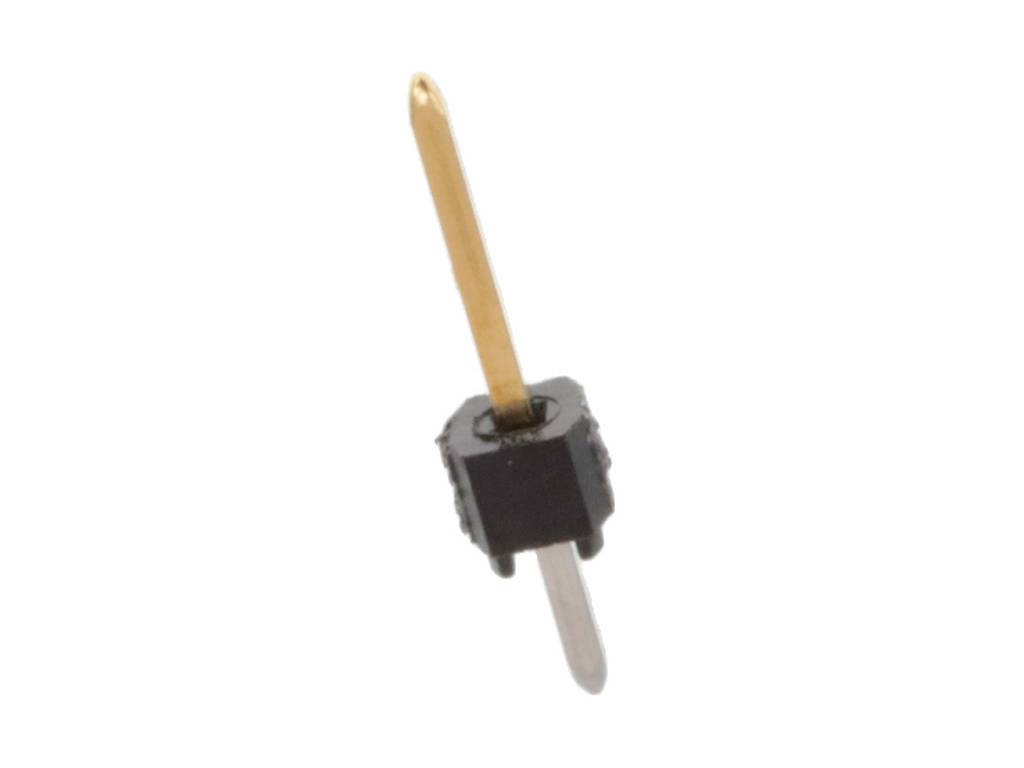

Molex Pin strip (standard) No. of rows: 1 Pins per row: 1 901200761 1 pc(s) Tray

Item no:2450555

Dispatches on Wed 11 Nov

12607 Piece(s)Conrad Electronic

Gold

Piece(s)

Minimum order quantity: 300

Multiple: 1

€ 0.35^*

Molex Pin strip (standard) No. of rows: 1 Pins per row: 10 901200770 1 pc(s) Tray

Item no:2450563

Dispatches on Thu 5 Nov

788 Piece(s)Conrad Electronic

Gold (Au)

Piece(s)

Minimum order quantity: 70

Multiple: 1

€ 2.29^*

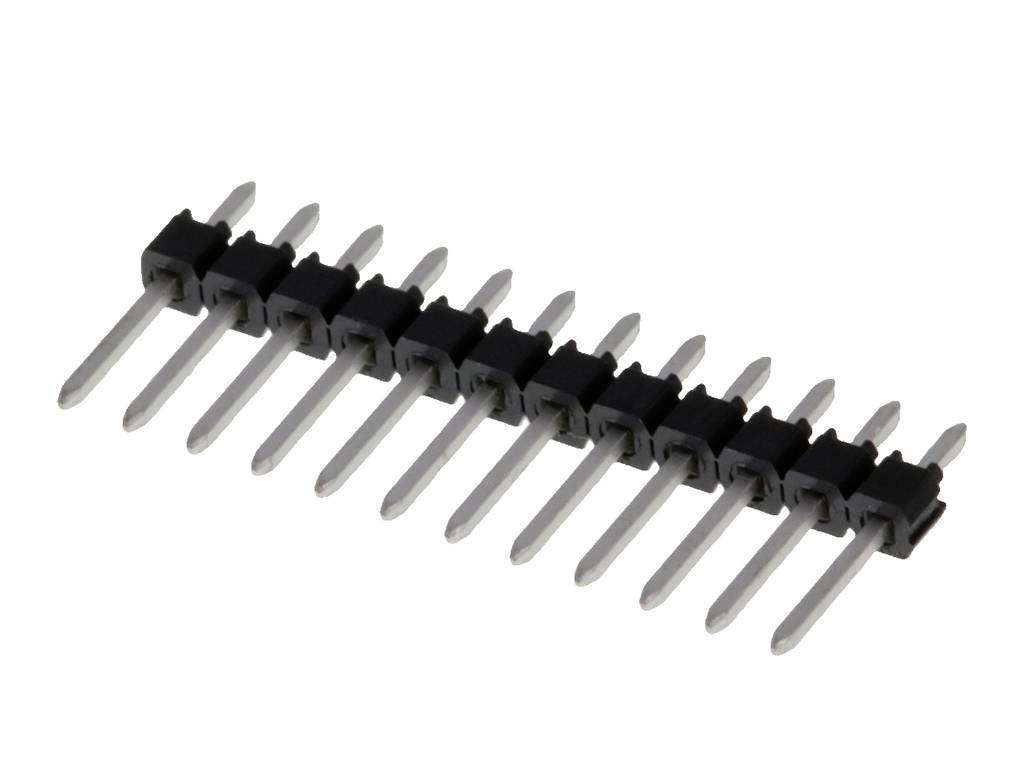

Molex Pin strip (standard) No. of rows: 1 Pins per row: 12 901200132 1 pc(s) Tray

Item no:2450552

Dispatches on Thu 5 Nov

4378 Piece(s)Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 400

Multiple: 1

€ 1.79^*

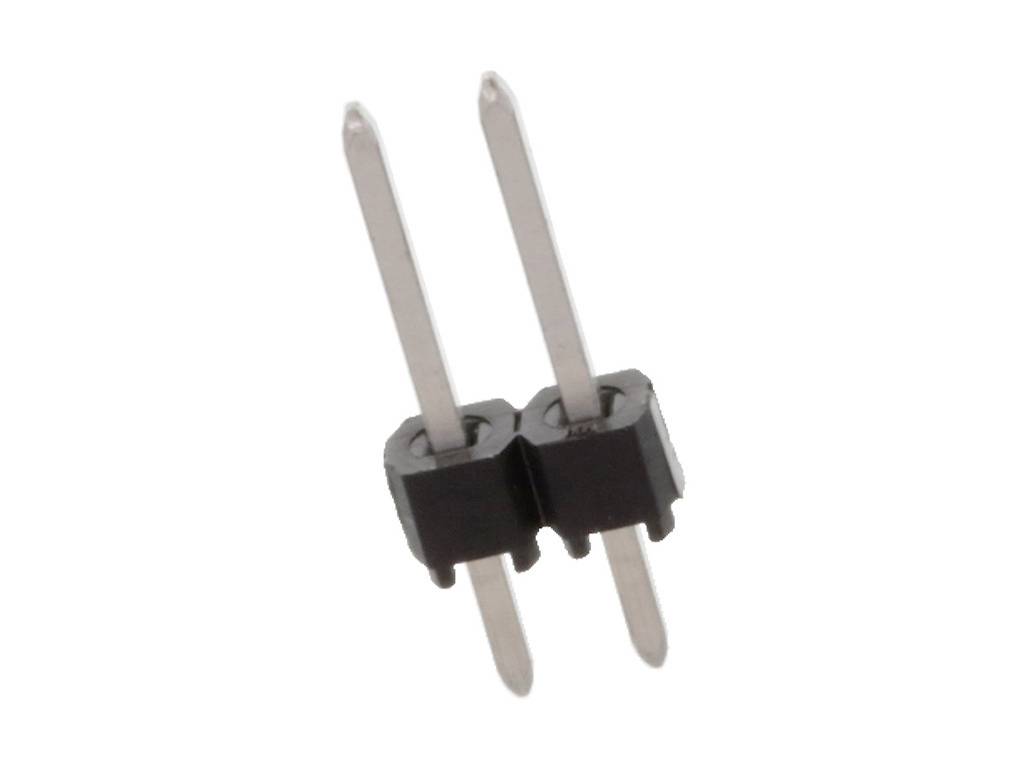

Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200122 1 pc(s) Tray

Item no:2450546

Dispatches on Mon 21 Dec

Conrad Electronic

Tin plated

Piece(s)

Minimum order quantity: 400

Multiple: 1

€ 0.48^*

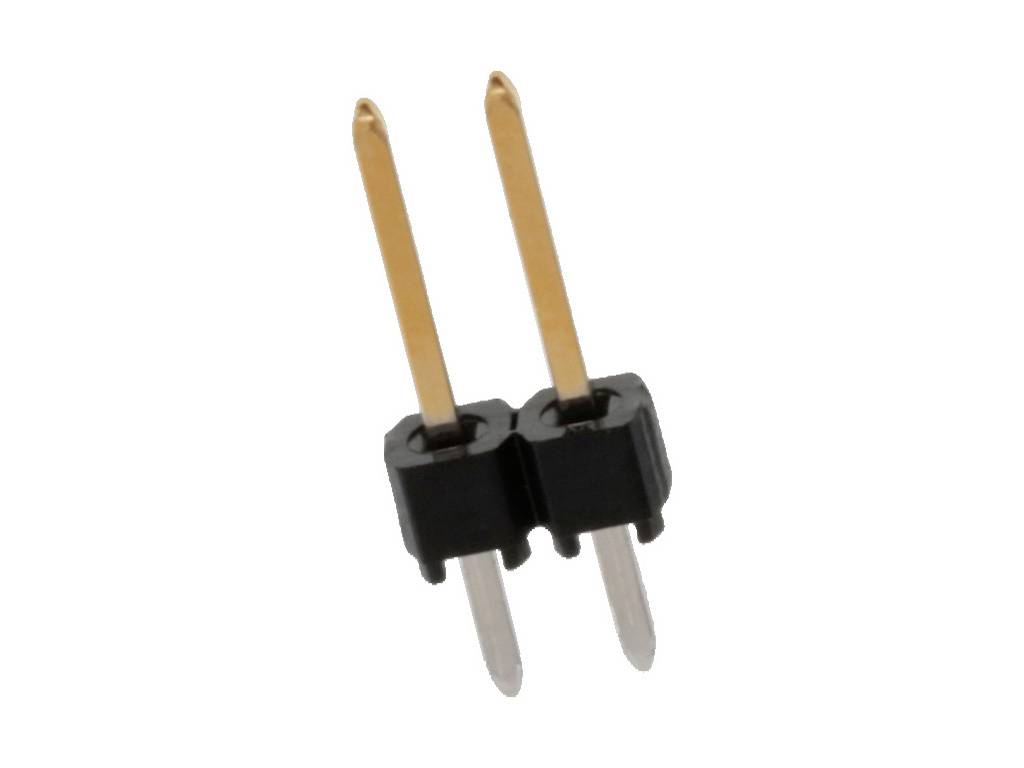

Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200762 1 pc(s) Tray

Item no:2450556

Fast track dispatch on Tue 3 Nov

8535 Piece(s)Conrad Electronic

Gold (Au)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.62^*

Molex Pin strip (standard) No. of rows: 1 Pins per row: 3 901200763 1 pc(s) Tray

Item no:2450557

Fast track dispatch on Tue 3 Nov

867 Piece(s)Conrad Electronic

Gold

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.46^*

Documents & Downloads

Datasheet

Datasheet 2450565 Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200922 1 pc(s) Tray

User & Safety Instructions

User & Safety Instructions 2450565 Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200922 1 pc(s) Tray

Circuit diagramm

Circuit diagramm 2450565 Molex Pin strip (standard) No. of rows: 1 Pins per row: 2 901200922 1 pc(s) Tray

Description

2.54mm Pitch C-Grid III Header, Single Row, Vertical, 2 Circuits, 0.76µm Gold (Au) Selective Plating

Description

2.54mm Pitch C-Grid III Header, Single Row, Vertical, 2 Circuits, 0.76µm Gold (Au) Selective Plating
