Monacor SP-310CX 10 inch 25.4 cm Wideband speaker 200 W 8 Ω

'Black speaker, angled design, with visible connections; suitable for deep sounds in audio systems.'

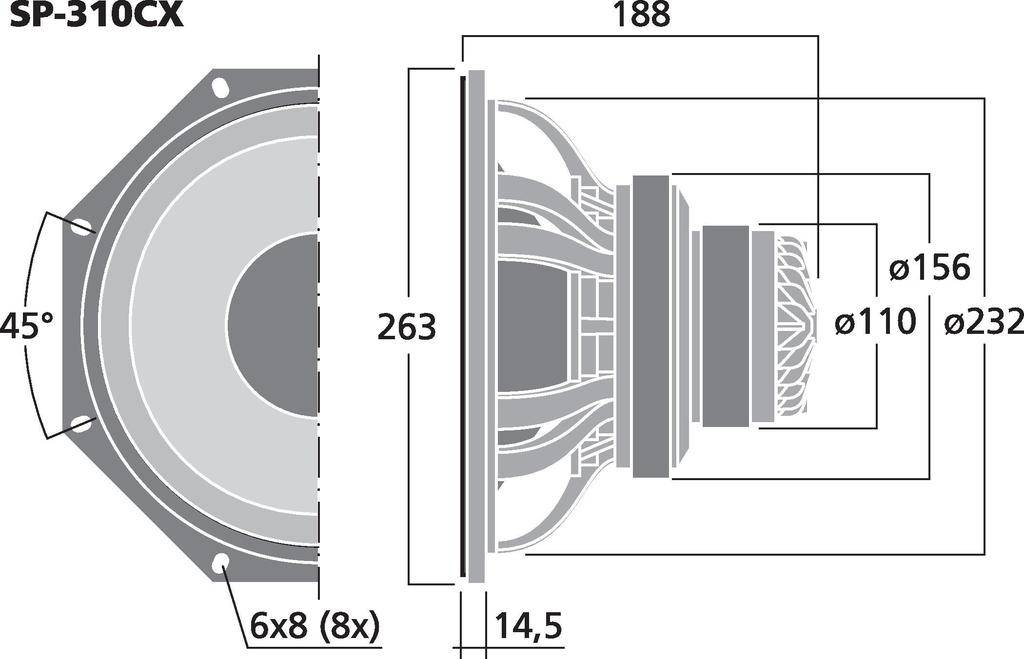

Technical drawing of a loudspeaker, Model SP-310CX, with dimensions in millimetres: Overall width 263, depth 188, diameter 156.

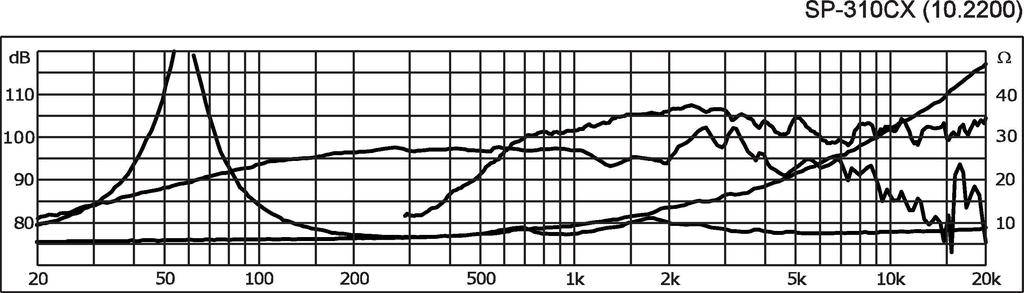

Diagram shows frequency response in dB of SP-310CX. X-axis: Frequency (20 to 20k Hz), Y-axis: Level (80 to 110 dB). Multiple curves illustrate variations.

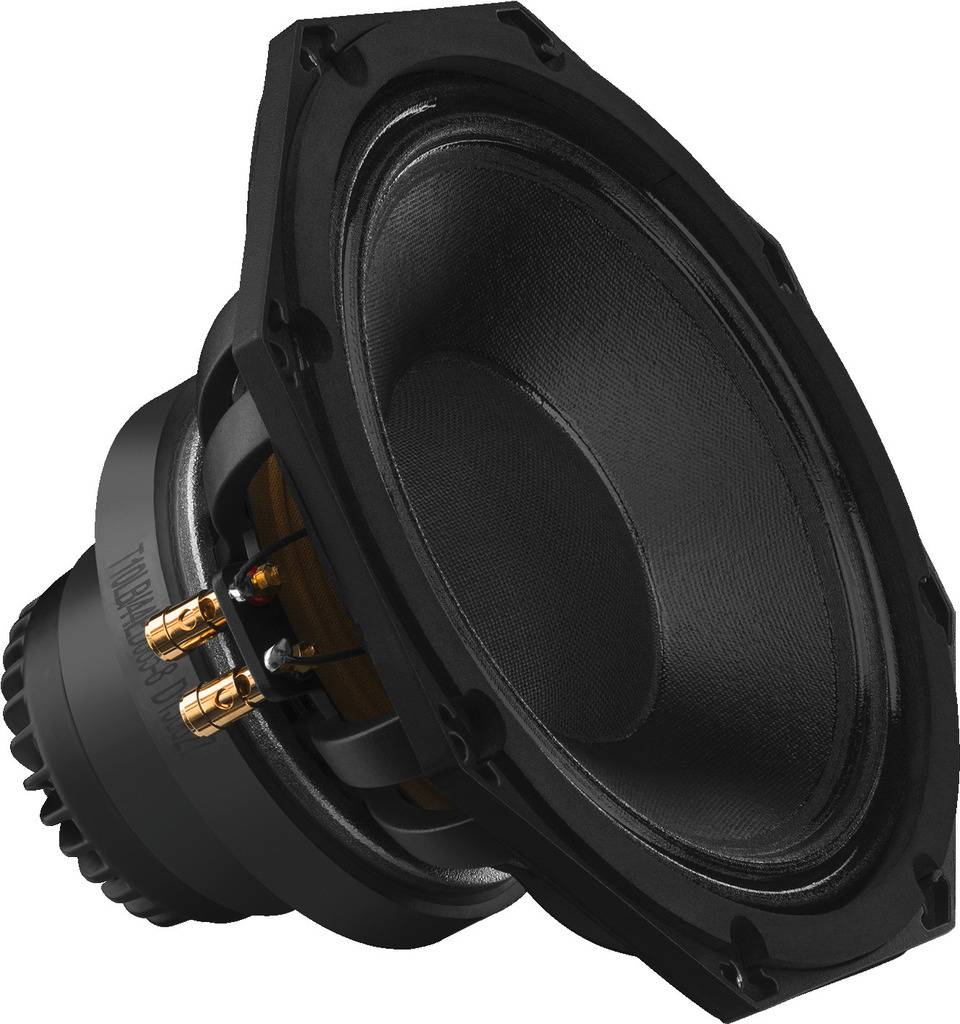

A black speaker with a circular design, with the membrane and connections visible. Technical details not discernible.
'Diagram shows frequency response in dB from 20 Hz to 20 kHz for SP-310CX. The curve runs irregularly with several rises and falls.'
Technical drawing of a loudspeaker in side and front view with measurements in millimetres. Model: SP-310CX.
1/6
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 214.99 / piece)
€ 235.00
-9 %
€ 214.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Impedance (Z): 8 Ohm (bass), 8 Ohm (tweeter)
  • Resonant frequency (fs): 60 Hz (bass) / 700 Hz (tweeter)
  • Frequency range: f 3-3000 Hz (bass) 1000 22000 Hz (tweeter)
  • Max. Load-carrying capacity: 400WMAX (bass)/100WMAX (tweeter)
Product type

Wideband speaker

Speaker size (cm)

25.4 cm

Speaker size (inch)

10 inch

RMS capacity

200 W

Max. load

400 W

Max. frequency

22000 Hz

Min. frequency

1000 Hz

Impedance

8 Ω

Sound pressure

96 dB

Recess diameter

232 mm

Recess depth

173 mm

Weight

6.4 kg

Frequency range

1000 Hz - 22000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1416865 Monacor SP-310CX 10 inch 25.4 cm Wideband speaker 200 W 8 Ω

Description

Klang+Ton 01/2016
The result of a clean development is a in the requisite output is still surprisingly compact box that can also satisfy the audiophile demands. For hi-fi and monitoring an ideal Coax.

This text is machine translated.

Features

  • Professional PA-2-way coaxial speaker with built-in horn tweeter
  • Heavy-duty 25-cm-PA-WOOFER (10') with a high degree of efficiency
  • Coaxial arranged tweeter horn with 25-mm tweeter driver (1", VC = 44 mm)
  • Excellent sounds great
  • Sturdy die-cast basket with rear ventilation of the spider
  • Heat-resistant 64-mm-moving coil (21/2") on polyamide voice coil carrier (TIL)
  • Excellent and even diffusion
  • Ideal for stage monitors or very compact full-range speakers
  • Operation only with crossover filter (recommended cut-off frequency> 1800 Hz)
