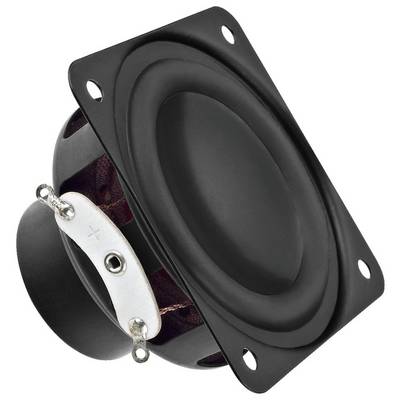

Monacor SPX-21M 2 inch 5.55 cm Wideband speaker 12 W 4 Ω
EAN:
Part number:
Item no:
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
Only 10 Piece(s) available
Technical specifications
- Impedance (Z): 4 Ohm
- Resonant frequency (fs): 170 Hz
- Max. Frequency range: f 3-22000 Hz
- Maximum load-carrying capacity: 25WMAX
- Nominal load (P): 12WRMS
- Avg. Sound pressure (1W/m): 84 dB
- Suspension compliance (cms): 0.6 mm/N
- Moved mass (MMS): 1.45 g
- Mechanical quality (Qms): 4,66
- Electrical quality (Qes): 0.53
- Total quality (Qts): 0.47
- Equivalent volume (Vas): 0.14 l
- Dc resistance (Re): 3,74 Ohm
- Power factor (BxL): 3,32 Tm
- Schwingspulenind. (Le): 0.12 mH
- Voice coil diameter: 20mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/-1.2 mm
- Eff. Cone area (sd): 13 cm 2
- Magnet weight: 25.8 g
- Weight: 0.09 kg
- Product type
Wideband speaker
- Speaker size (cm)
5.55 cm
- Speaker size (inch)
2 inch
- RMS capacity
12 W
- Max. load
25 W
- Max. frequency
22000 Hz
- Min. frequency
170 Hz
- Impedance
4 Ω
- Sound pressure
84 dB
- Recess diameter
51 mm
- Weight
90 g
- Frequency range
170 Hz - 22000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332732 Monacor SPX-21M 2 inch 5.55 cm Wideband speaker 12 W 4 Ω
Description
Features
- Hi-Fi-broadband loudspeaker
- Very good sound quality
- Inverse laminated membrane and ventilated spider
- Neodymium magnet system
- Very small moving mass of the oscillating system
- Use in small loudspeakers or satellite systems
- Ideal for line spotlight (line arrays), column speakers
- In combination with mid basses very well as tweeter system with low cut-off frequency can be used
- This text is machine translated.
