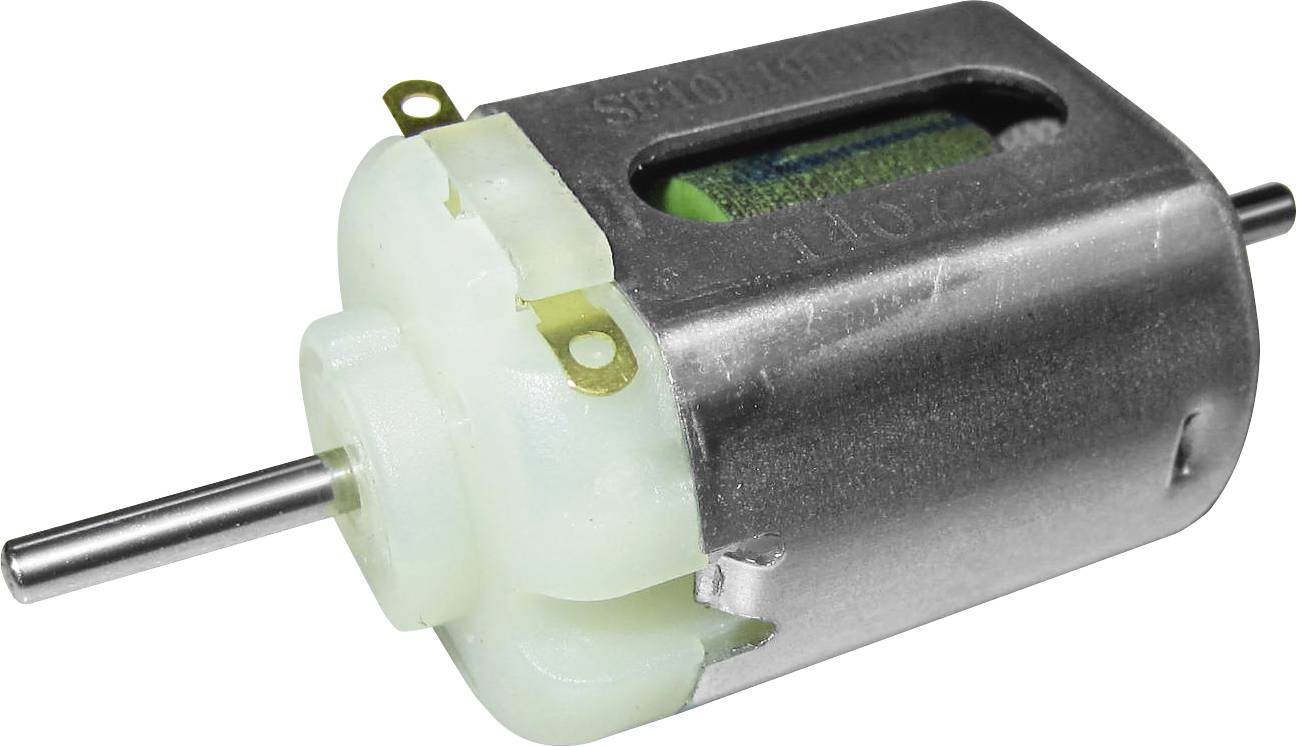

Motraxx SF10L-19115P-47HRACB
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Shaft length 10 and 7.5 mm
- Output power
16 W
- Load speed
18000 U/min
- Max. torque
3.17 Nmm
- Efficiency
54 %
- Shaft length
10 mm
- Nominal voltage (details)
12 V DC
- Idle current
0.5 A
- Length
22.28 mm
- Width
25.5 mm
- Height
15.3 mm
- Current (peak performance)
1 A
- Shaft Ø
2 mm
- Dim
(L x W x H) 22.28 x 25.5 x 15.3 mm
- Weight
22 g
- Idle speed
31500 U/min
- Product type
Miniature brushed motor
Documents & Downloads
Datasheet
Datasheet 234898 Motraxx SF10L-19115P-47HRACB
User & Safety Instructions
User & Safety Instructions 234898 Motraxx SF10L-19115P-47HRACB
Information
Information 234898 Motraxx SF10L-19115P-47HRACB
Description
The Low Magnetic Field Motor is very popular in Slotcarfahrern.
This text is machine translated.
This text is machine translated.
Features
- Size 130 or 13 D
- Double shaft for inline skates and sidewinder chassis can be used
- Minimized locking torque
- Ventilation slots for heat dissipation.
