Name: Motrona 7186.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1
Brand: Motrona
SKU: 2899368
Availability: BackOrder

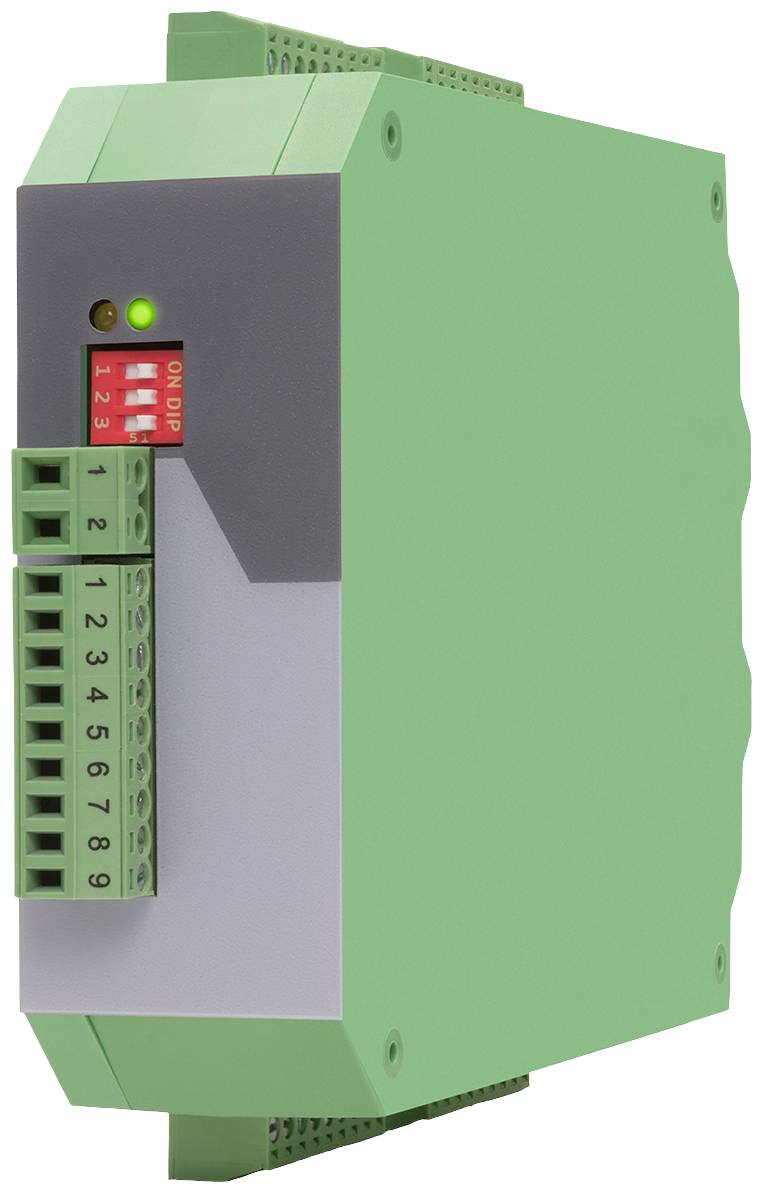

Green, rectangular electronic device with LED display and numbered ports on the front panel.

Product type

IO module

Interfaces

Screw terminal

Type

7186.5024

Operating voltage

10 - 30 V DC

Height

118 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 24 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 585.00 / piece)

€ 585.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

4-way encoder distributor/splitter for incremental signals

1 pulse input in the format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
Input frequency up to 250 kHz [HTL] or 1 MHz [RS422 / TTL]
4 push-pull output levels
Formats according to the input signals, but with individual assignment of the output level for each output

Technical specifications

Input voltage supply: 10 … 30 VDC
Voltage supply protective circuit: Reverse polarity protection
Power supply remaining ripple: ≤ 10% at 24 VDC
Power supply current consumption: Approx. 25 mA, with unloaded sensor supply
Power supply Connection type: Screw terminals, 1.5 mm² / AWG16
Sensor supply output voltage 1: 24 VDC (approx. 0.8 V lower than supply voltage)
Encoder supply Output current: Max. 250 mA, (galvanically connected with device supply)
Sensor supply output voltage 2: 5 VDC
Encoder supply Output current: Max. 500 mA, (galvanically connected with device supply)
Sensor supply: Protective circuit: Short-circuit proof
Sensor supply Connection type: Screw terminals, 1.5 mm², 9-pin
Encoder supply Other options: A) External via a separate source b) Using the same source, which also supplies the distributor (10…30V)
Incremental input signal level (switchable):
RS422 / TTL (difference voltage > 0.5 V);HTL differential (difference voltage > 2 V)
HTL (ASYMMETRICAL): LOW 0 … 6 V, HIGH 8 … 40 V.
TTL (ASYMMETRIC): LOW < 0.8 V, HIGH >2.0 V.
Incremental Input Tracks: Asymmetrical: A, B, Z or symmetrical: A, /A, B, /B, Z, /Z
Incremental input frequency: Max. 1 MHz at RS422 / TTL; max. 500 kHz at HTL Differential; max. 250kHz at SE TTL / SE HTL
Incremental input Connection type: Screw terminals, 1.5 mm² / AWG16
Incremental outputs Number of outputs: 4
Incremental outputs output logic: Push-pull
Incremental outputs Signal level: 5 … 30 V (can be fed via respective ext. COM+ terminal)
Incremental outputs Signal delay time: Approx. 160 ns
Incremental outputs Output current: Max. 30 mA
Incremental outputs Protection circuit: Short circuit proof
Incremental outputs Connection type: Screw terminals, 1.5 mm² / AWG16
Display elements Number of: 2 LEDs
Display elements Function: 1 x green for operational readiness; 1 x yellow for error detection at inputs A, B, Z.
Ambient temperature operation: -20 °C … +60 °C (non-condensing)
Ambient temperature Storage: -30 °C … +75°C (non-condensing)
MTBF failure rate in years (continuous operation at 60 °C): 120.9 a

Product type: IO module

Interfaces: Screw terminal

Type: 7186.5024

Operating voltage: 10 - 30 V DC

Height: 118 mm

Length: 140 mm

Width: 34 mm

No. of digital inputs: 1

No. of digital outputs: 4

Dim: (L x W x H) 140 x 34 x 118 mm

Control LEDs: Yes

Manufacturer part #: 7186.5024

Documents & Downloads

Datasheet

Datasheet 2899368 Motrona 7186.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1

User & Safety Instructions

User & Safety Instructions 2899368 Motrona 7186.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1

Description

This 4-way impulse distributor is a very compact, space-saving and extremely versatile distributor for signals of incremental encoders and measurement systems. The device has no potential separation.
