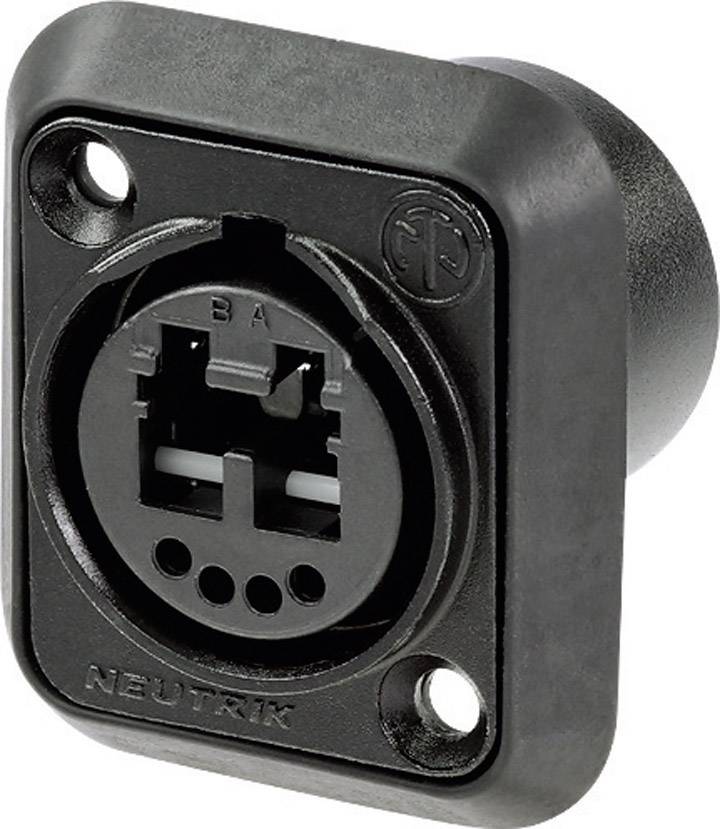

Neutrik FO connector NO2-4FDW-1-A Connector
EAN:
Part number:
Item no:
Product type
FO connector
Mounting type
Panel-fit
Enclosure material
Zinc (die-cast)
Connection
LC
Functions (FO)
Connector
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Technical specifications
- Product type
FO connector
- Mounting type
Panel-fit
- Manufacturer
Neutrik
- Enclosure material
Zinc (die-cast)
- Connection
LC
- Functions (FO)
Connector
- Protection class
IP65
- Factory colour
Black
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+75 °C
- Compatible with
OpticalCON
LC connector
- Manufacturer part #
NO2-4FDW-1-A
- Content
1 pc(s)
- Connector type
Socket, built-in
Push-pull latch
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 715849 Neutrik FO connector NO2-4FDW-1-A Connector
User & Safety Instructions
User & Safety Instructions 715849 Neutrik FO connector NO2-4FDW-1-A Connector
Information
Information 715849 Neutrik FO connector NO2-4FDW-1-A Connector
Description
Panel jack with black chrome coating, 4 solder contacts, 1 LC Duplex implementation connection and 1 earthing contact on the housing (for SMPTE cable shield), waterproof according to IP65, Panel mount from the front.
The chassis mounted plug in D-shape of the housing is used as implementation, with which a simple installation is ensured by simply a conventional LC duplex plug on the rear side is inserted. The built-in plug has a automatically driven protective flap with silicone seal, the glass-fiber protects against dirt and dust in not when connected and the proven push-pull locking mechanism for a secure connection. Colored seals for the identification of the faserart are included.
This text is machine translated.
The chassis mounted plug in D-shape of the housing is used as implementation, with which a simple installation is ensured by simply a conventional LC duplex plug on the rear side is inserted. The built-in plug has a automatically driven protective flap with silicone seal, the glass-fiber protects against dirt and dust in not when connected and the proven push-pull locking mechanism for a secure connection. Colored seals for the identification of the faserart are included.
This text is machine translated.
Hints
Does not correspond to the SMPTE 344M standard. This system is ideal for indoor applications (Studio) of camera connections, taking into account the criteria according to IEC 60664-1, such as the degree of contamination 1, Overvoltage category 1 and rated voltage. For detailed information, request the White Paper "opticalCON @ SMPTE indoor applications".
