Name: Noctua NH-D9 TR5-SP6 CPU cooler + fan
Brand: Noctua
SKU: 3046104
Availability: InStock

A large CPU cooler with two fans and numerous cooling fins. The construction is predominantly made of metal and plastic.

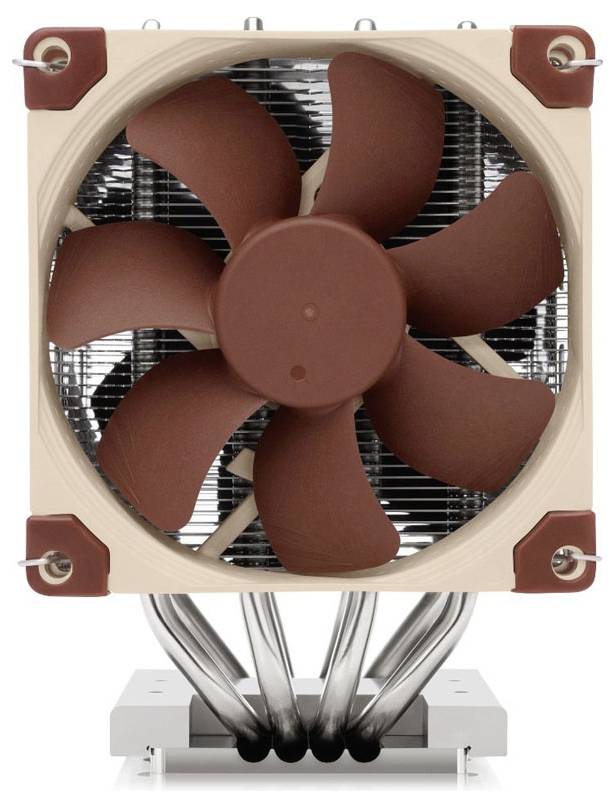

A brown CPU fan with multiple cooling fins and four curved metal heat pipes.

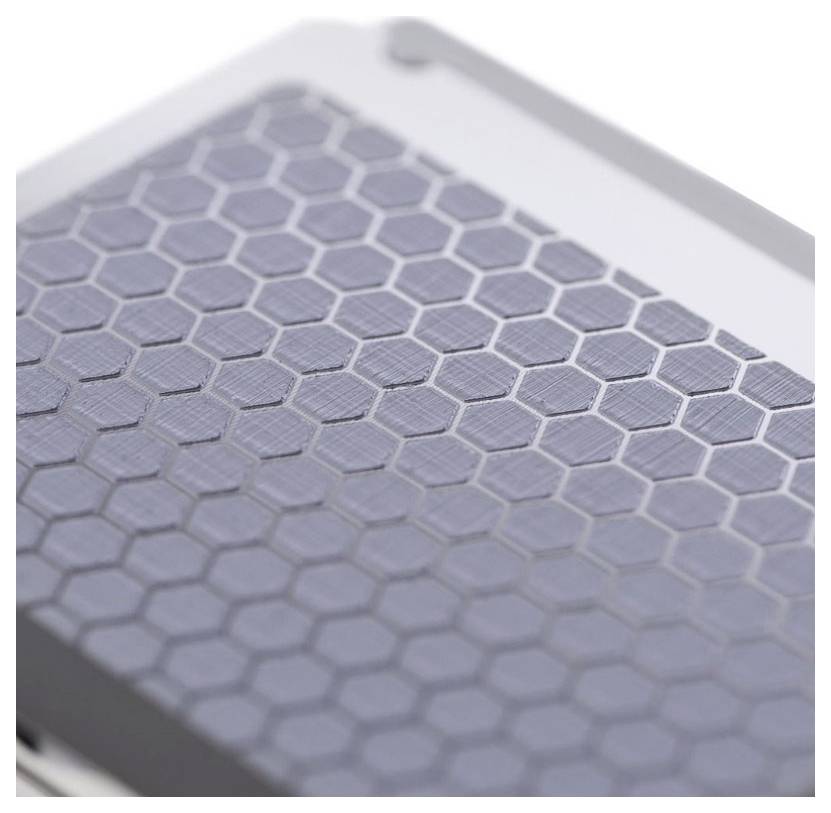

Close-up of a metallic surface with a hexagonal, honeycomb-like pattern.

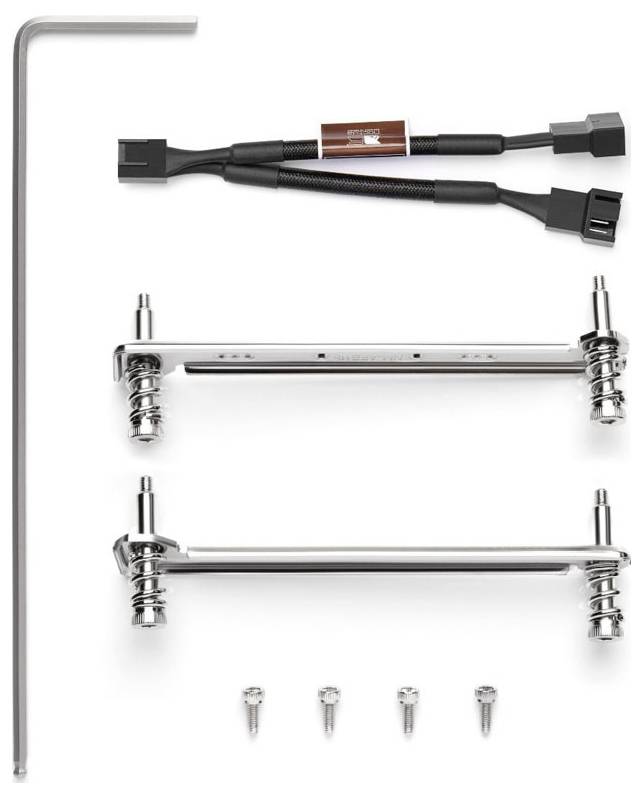

A mounting kit with two metal brackets, four screws, an L-shaped Allen key, and an adapter cable for PC components.

1/4

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Dimensions - without fan 95 x 125 x 95 mm (W x H x D)
Material: Nickel-plated copper (base plate, heat pipes), aluminum (lamellae)
Weight - without fans: Approx. 584 g
Heat pipe 4x Ø 6 mm
Fan: 2x 95 mm NF-A9 HS-PWM
Power consumption 1.68 W
Operating voltage 12 V.
MTBF> 150,000 h
Compatibility: AMD sTRX5, sWRX9, SP6

Product type: CPU cooler + fan

Noise emission (max.): 30.6 dBa

Rotational speed (max.): 2500 U/min

Air discharge: 96.3 l/h

Connection: 4-pin PWM

Weight: 769 g

Features: Twin fan unit
Heat pipe

Width: 95 mm

Height: 135 mm

Depth: 95 mm

Noise emission: 30.1 dBa - 40 dBa

Fan dimensions: 95 x 95 mm

Factory colour: Multicolour

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3046104 Noctua NH-D9 TR5-SP6 CPU cooler + fan

Description

The Noctua NH-D9 TR5-SP6 CPU cooler is the ultimate cooling system for high-end systems, specially developed for AMD Ryzen Threadripper processors. In a compact design this air cooler offers an excellent cooling performance, which is impressive thanks to precise engineering and high-quality materials even under extreme loads.

Efficient cooling for high performance
Its four heat pipes in combination with a large heat sink ensure optimal heat dissipation, while specially adjusted fans ensure a constant air flow. The result is efficient cooling, even in the hottest moments of system operation.

Thanks to its remarkable compatibility, the NH-D9 fits seamlessly into systems with limited space. Its quiet performance, supported by proven Noctua technology, guarantees efficient cooling with minimum noise.

Easy installation, top quality and performance

The installation is straightforward, even for less experienced users – the NH-D9 TR5-SP6 offers an easy setup. This cooler sets new standards for high-performance systems and ensures optimum operating conditions, no matter how demanding your requirements are.

This text is machine translated.

Hints

Important: Please note that the NH-D9 TR5-SP6 4U is a special version for AMD TR5/SP6 (sTRX5/sWRX9) sockets. Due to the adjusted larger contact area, it cannot be used on smaller sockets and is not compatible with the Noctua mounting sets for this socket.
