O/L relay 1 maker, 1 breaker Siemens 3RB3036-1UX1 1 pc(s)

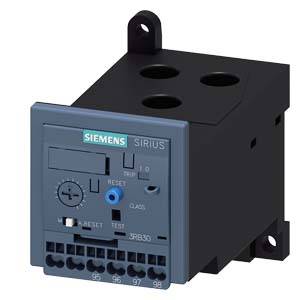

A Siemens electronic overload relay, model 'Sirius 3RB30', with adjustment elements and connections in black and blue.
An open electrical cabinet with multiple electrical components and cables arranged in an orderly manner.
'Diagram of parts and accessories for an electronic overcurrent relay, including push button and mechanical reset.'
O/L relay 1 maker, 1 breaker Siemens 3RB3036-1UX1 1 pc(s)-3

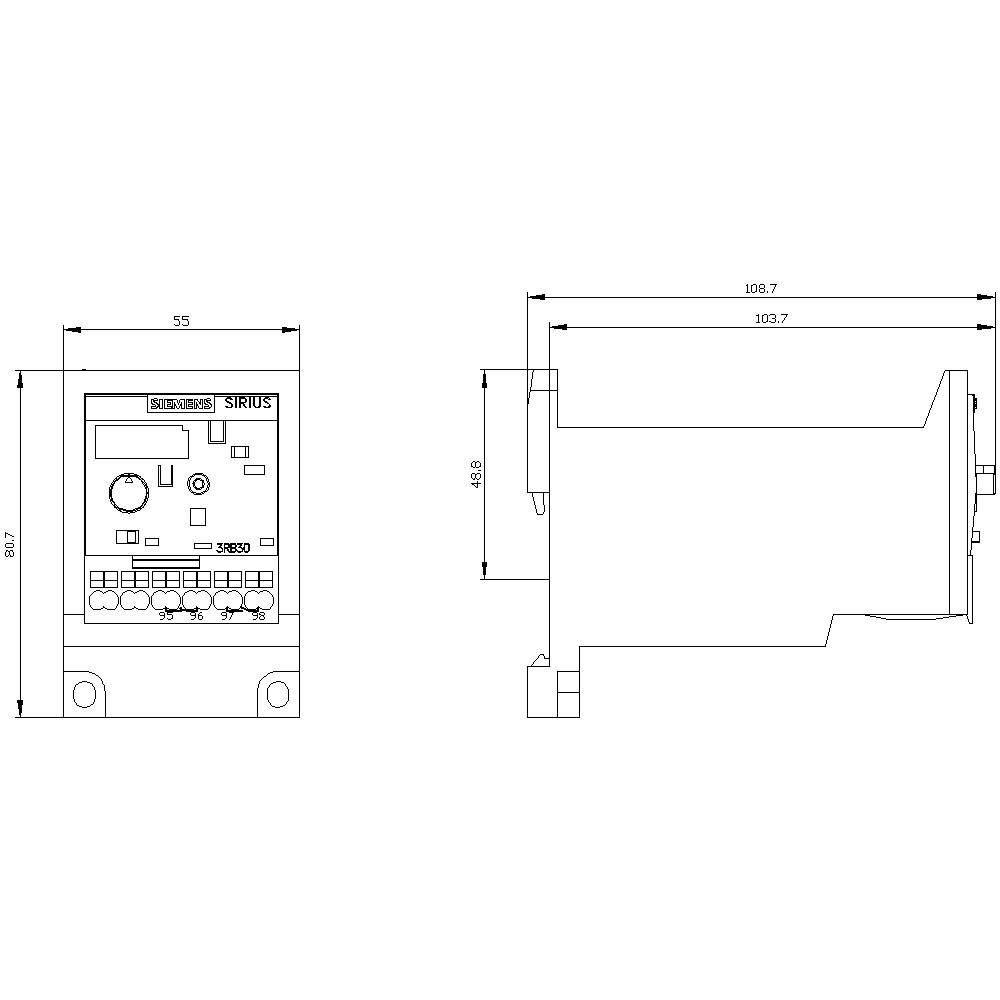

Technical drawing of an electronic device with front and side view, dimensions of 55 mm width and 108.7 mm depth.
1/5
Image similar
Product type
O/L relay
Functions
Overload
Contact type
1 maker
1 breaker
Type
3RB3036-1UX1
Type
S2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 194.99 / piece)
€ 194.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: stand-alone installation
  • Contact protection against electrical shock: Finger-safe
  • Number of pins: 3
  • Tripping class: CLASS 10 E
Product type

O/L relay

Type

3RB3036-1UX1

Type

S2

Functions

Overload

Features

Automatic/manual switch

Operating voltage

690 V AC

Amperage adjustment range (min.)

12.5 A

Amperage adjustment range (max.)

50 A

Adjustment range (amperage)

12.5 - 50 A

Contact type

1 maker

1 breaker

Connection

Ring-type transformer

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

55 mm

Height

81 mm

Dim

(L x W x H) 109 x 55 x 81 mm

Content

1 pc(s)

AWG max.

16

AWG (min.)

24

Nominal current

50 A

Length

109 mm

Cross section (inflexible) (min.)

1 mm²

Separate positioning

1

1

0

CLASS 10

Through-feed current converter

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1743071 O/L relay 1 maker, 1 breaker Siemens 3RB3036-1UX1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1743071 O/L relay 1 maker, 1 breaker Siemens 3RB3036-1UX1 1 pc(s)

Description

Separation amplifier 24 V AC/DC, 3-way separation input: 0-20 mA output: 4-20 mA Spring-type terminal (push-in)
