O/L relay 1 maker, 1 breaker Siemens 3RB3036-2WB0 1 pc(s)

Siemens industrial contactor with three input and four output terminals, used for electrical control circuits.
An electrical panel with an open door reveals electrical components and wiring used for control and distribution systems.

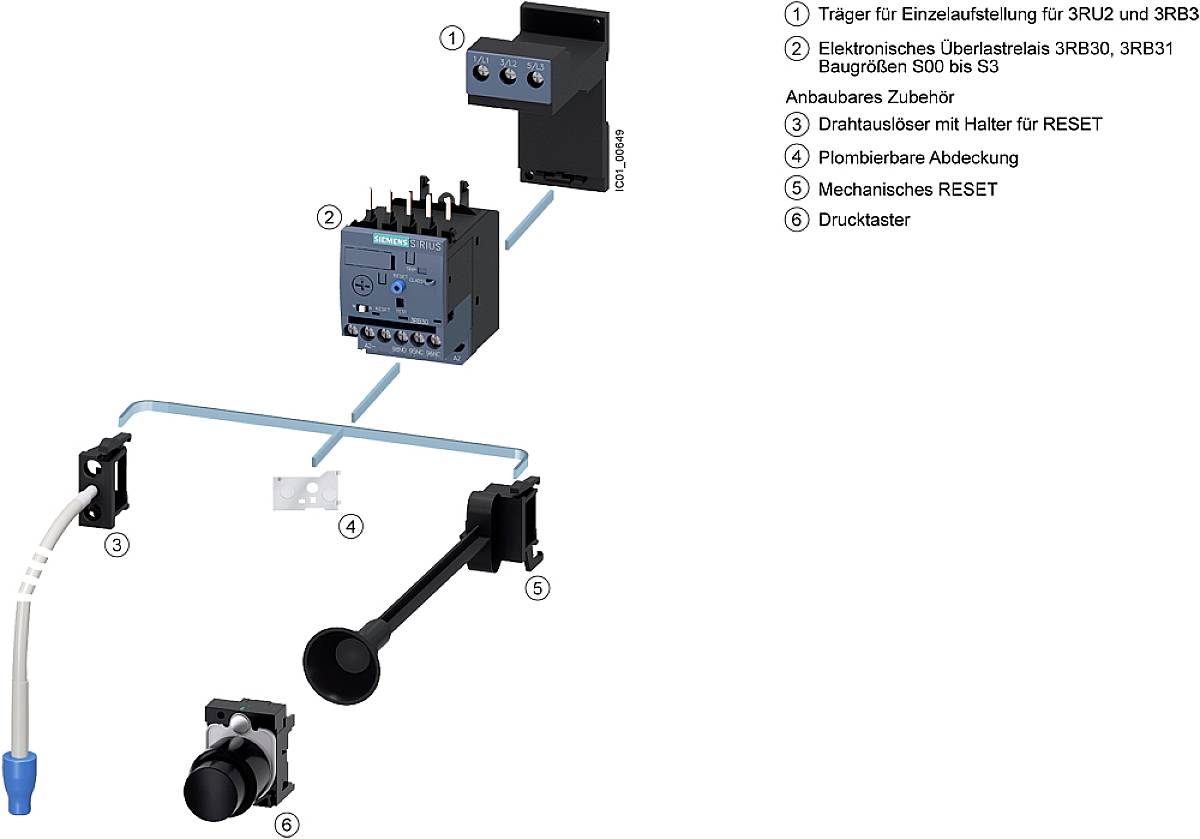

'Diagram shows an electronic overload relay with accessories, including rotary trip mechanism with holder for RESET and mechanical RESET.'
Circuit diagram of an electrical relay shows the terminals T1, T2, T3 and test and reset functions. Connections to contacts 95, 96, 97, 98 indicated.

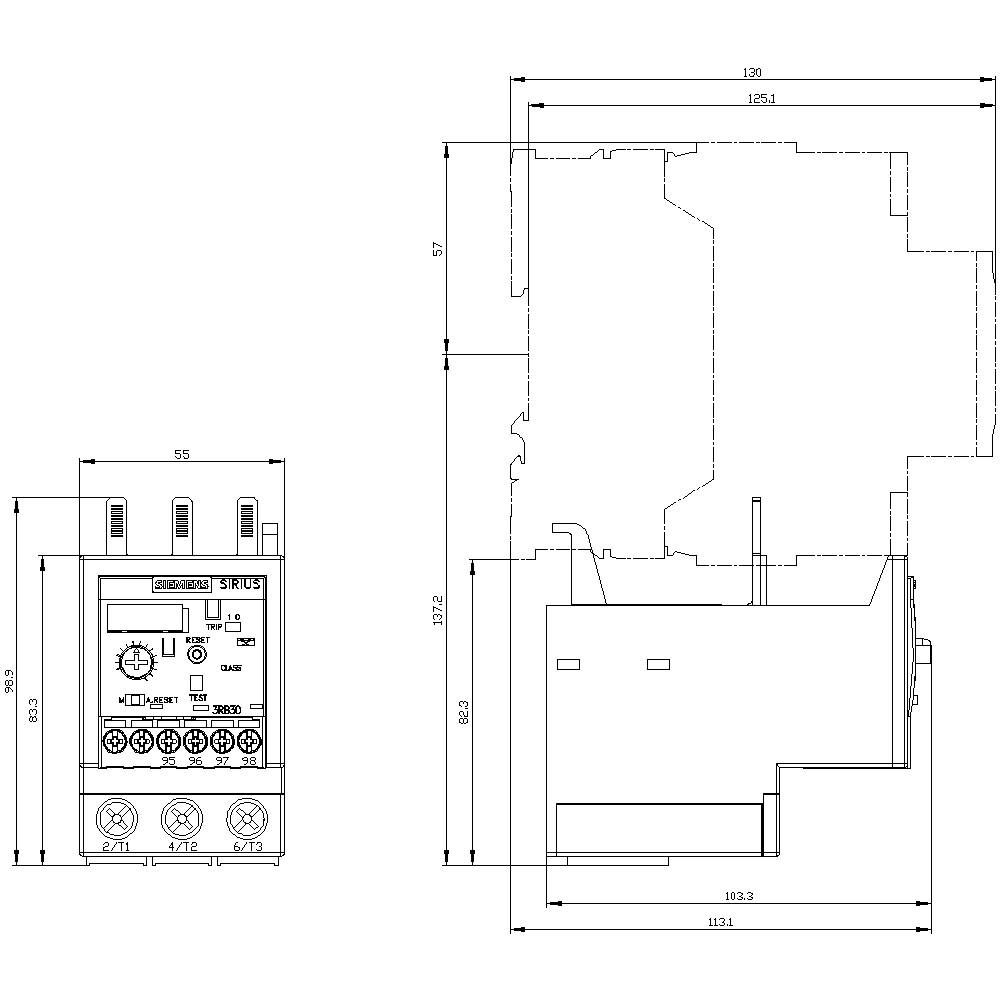

Technical drawing of an electrical device with front and side view, showing dimensions and connection points for mounting purposes.
1/5
Image similar
Product type
O/L relay
Functions
Overload
Contact type
1 maker
1 breaker
Type
3RB3036-2WB0
Type
S2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue, 12 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 275.00 / piece)
€ 275.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: installing contactor
  • Contact protection against electrical shock: Finger-safe vertically for contact from the front according to IEC 60529
  • Number of pins: 3
  • Tripping class CLASS 20 E
Product type

O/L relay

Type

3RB3036-2WB0

Type

S2

Functions

Overload

Operating voltage

690 V AC

Amperage adjustment range (min.)

20 A

Amperage adjustment range (max.)

80 A

Adjustment range (amperage)

20 - 80 A

Contact type

1 maker

1 breaker

Connection

Screws

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

55 mm

Height

99 mm

Dim

(L x W x H) 104 x 55 x 99 mm

Content

1 pc(s)

AWG max.

1

AWG (min.)

18

Nominal current

60 A

Length

104 mm

Cross section (flexible) (min.)

1 mm²

Cross section (inflexible) (min.)

1 mm²

Separate positioning

1

1

0

CLASS 20

Screw connection

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1743078 O/L relay 1 maker, 1 breaker Siemens 3RB3036-2WB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1743078 O/L relay 1 maker, 1 breaker Siemens 3RB3036-2WB0 1 pc(s)

Description

power contactor, AC-3 17 A, 7.5 kW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 Hz, with inserted varistor 3-pole, Size S0 with RC element plugged-in
