O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XW1 1 pc(s)

Electronic overload relay by Siemens. It has reset and test control elements, as well as connection terminals along the bottom edge.
'Open electrical cabinet with electronic components arranged in rows. Contains switches, cables and connection strips.'

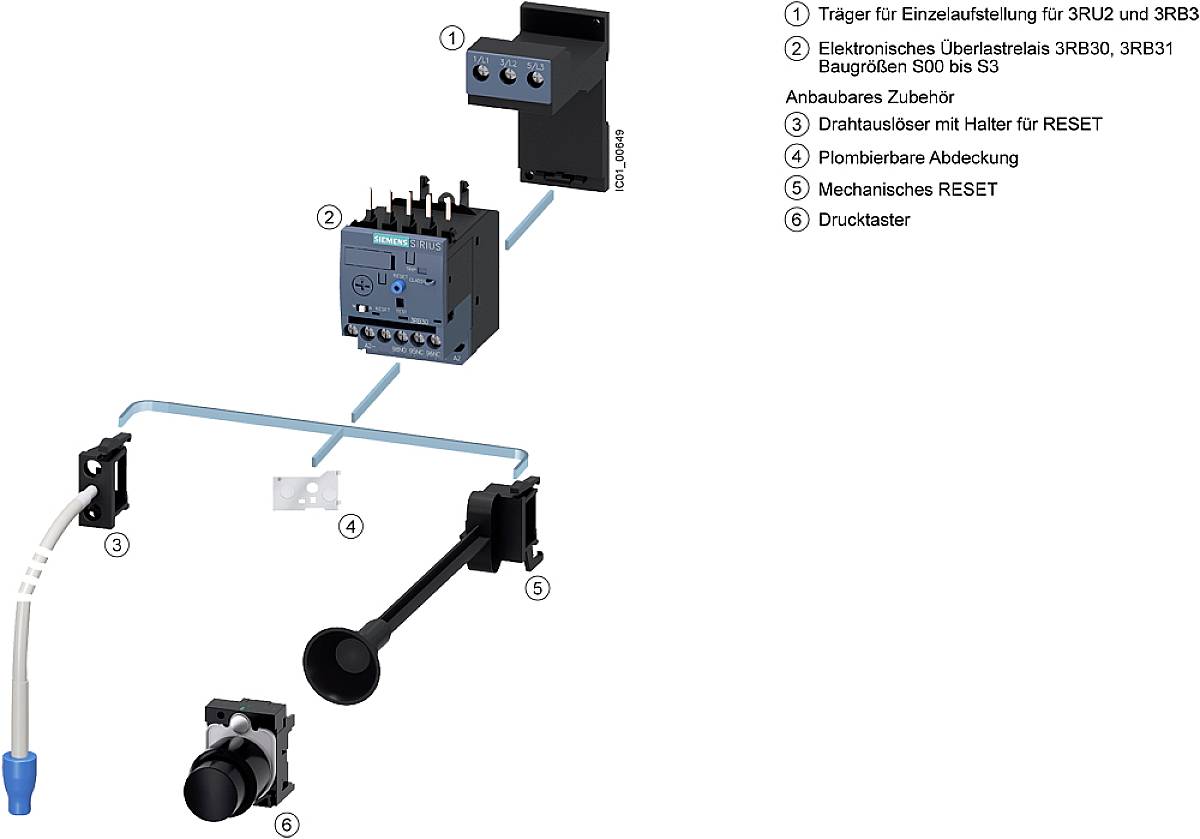

'Diagram of electronic overload relay and accessories. Numbered parts: Carrier, overload relay, rotary knob, cover, reset, push button.'

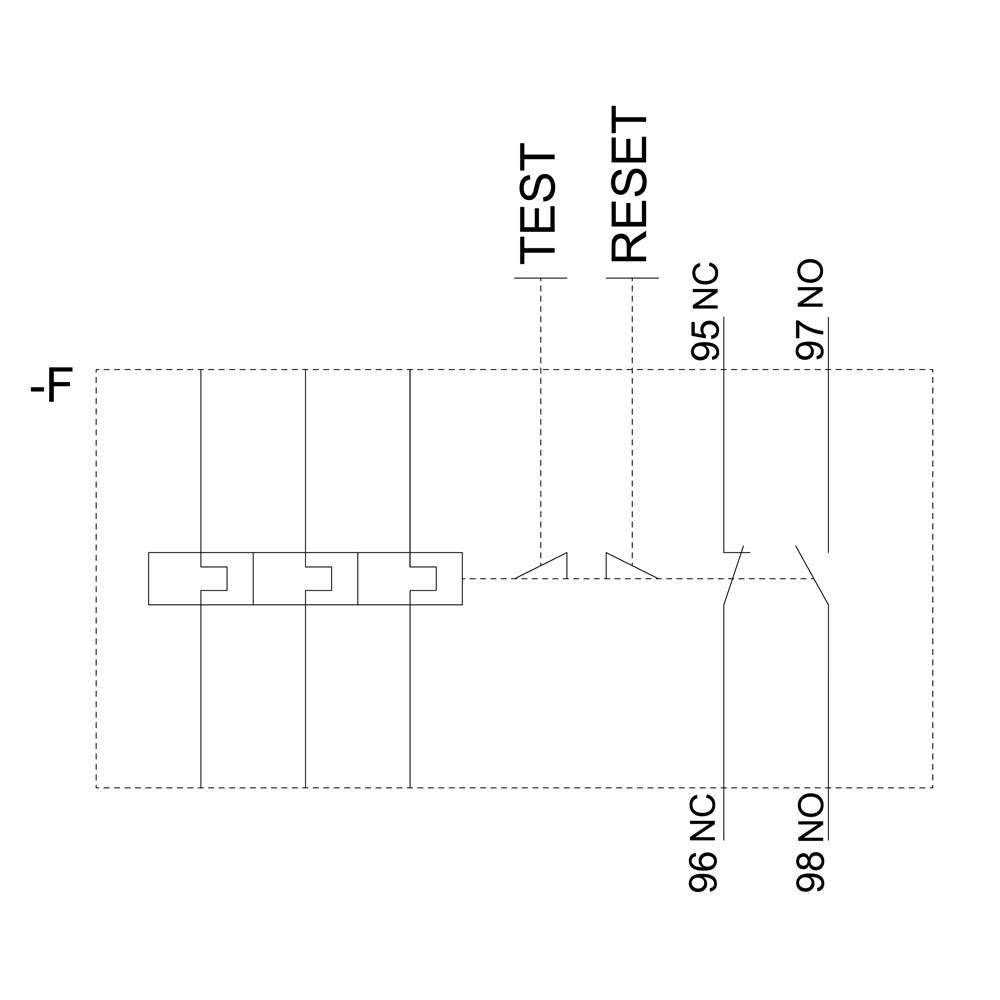

'TEST' and 'RESET' buttons are connected via circuits, displayed numbers are 95 NC, 96 NC, 97 NO, 98 NO. Main objective: Switch control.

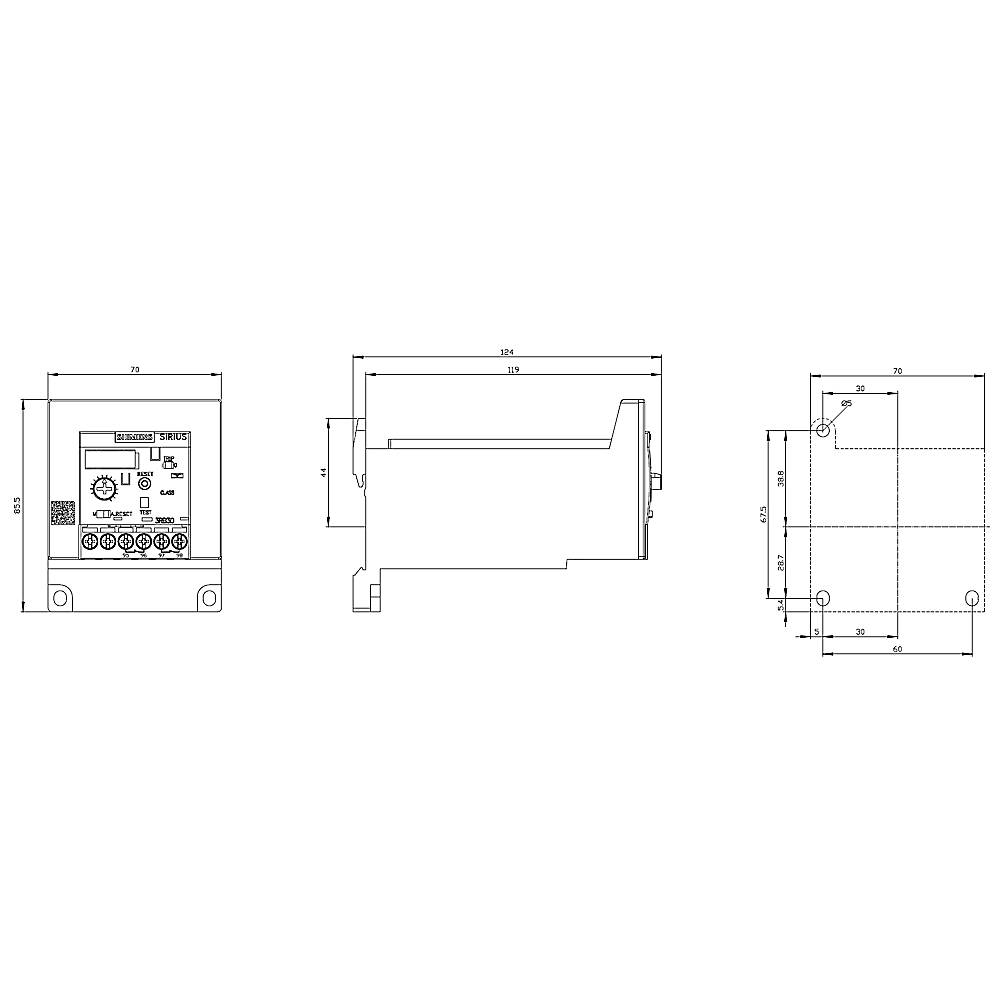

Technical drawing of an electronic device with dimensional specifications in three views: front view, side view, and top view.
1/5
Image similar
Product type
O/L relay
Functions
Overload
Contact type
1 maker
1 breaker
Type
3RB3046-1XW1
Type
S3
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 29 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 285.00 / piece)
€ 285.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: stand-alone installation
  • Contact protection against electrical shock: Finger-safe
  • Number of pins: 3
  • Tripping class: CLASS 10 E
Product type

O/L relay

Type

3RB3046-1XW1

Type

S3

Functions

Overload

Operating voltage

1000 V AC

Amperage adjustment range (min.)

32 A

Amperage adjustment range (max.)

115 A

Adjustment range (amperage)

32 - 115 A

Contact type

1 maker

1 breaker

Connection

Ring-type transformer

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

70 mm

Height

106 mm

Dim

(L x W x H) 124 x 70 x 106 mm

Content

1 pc(s)

AWG max.

14

AWG (min.)

20

Nominal current

115 A

Length

124 mm

Separate positioning

1

1

0

CLASS 10

Through-feed current converter

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1743085 O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XW1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1743085 O/L relay 1 maker, 1 breaker Siemens 3RB3046-1XW1 1 pc(s)

Description

Overload relay 32...115 A for motor protection Size S3, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset
