O/L relay 1 maker, 1 breaker Siemens 3RB2066-2MC2 1 pc(s)

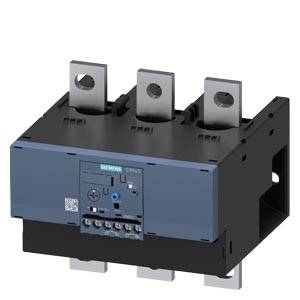

High-performance electrical switch with three terminal connections and control panel, suitable for controlling industrial electrical circuits.
'Grey electrical cabinet with an open door, filled with various electrical components and wiring in an orderly arrangement.'
'Overview: Mounting accessories for 3RB2 overload relays, including connection cover, frame terminal and push-button.'
Circuit diagram shows the connection of TEST and RESET with terminals 2/T1, 4/T2, 6/T3, and 95 NC, 96 NC, 97 NO and 98 NO.
Technical drawing of an electrical switchgear installation with front and side views, showing detailed layout and connections.
1/5
Image similar
Product type
O/L relay
Functions
Overload
Contact type
1 maker
1 breaker
Type
3RB2066-2MC2
Type
S12
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 575.00 / piece)
€ 575.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Mounting type: installing contactor/stand-alone installation
  • Contact protection against electrical shock: with terminal covers finger-safe vertically for contact from the front.
  • Number of pins: 3
  • Tripping class CLASS 20 E
Product type

O/L relay

Type

3RB2066-2MC2

Type

S12

Functions

Overload

Operating voltage

1000 V AC

Amperage adjustment range (min.)

160 A

Amperage adjustment range (max.)

630 A

Adjustment range (amperage)

160 - 630 A

Contact type

1 maker

1 breaker

Connection

Terminal strip

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

120 mm

Height

119 mm

Dim

(L x W x H) 155 x 120 x 119 mm

Content

1 pc(s)

AWG max.

16

AWG (min.)

24

Nominal current

630 A

Length

155 mm

Separate positioning

1

1

0

CLASS 20

Other

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1742013 O/L relay 1 maker, 1 breaker Siemens 3RB2066-2MC2 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742013 O/L relay 1 maker, 1 breaker Siemens 3RB2066-2MC2 1 pc(s)

Description

Overload relay 0.32...1.25 A For motor protection Size S00, Class 10 Contactor mounting Main circuit: screw terminal Auxiliary circuit: screw terminal Manual-Automatic-Reset !!! Phased-out product !!! Successor is SIRIUS 3RB3 Preferred successor type is 3RB3016-1NB0
