Name: O/L relay 1 maker, 1 breaker Siemens 3RB3143-4UD0 Piece 1 pc(s)
Brand: Siemens
SKU: 1699090
Availability: InStock

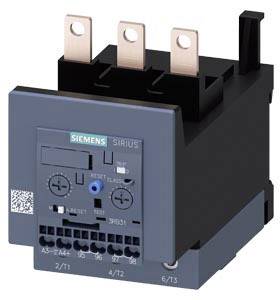

A three-pole Siemens SIRIUS contactor with three upper connection terminals and a blue reset button on the front.

An open electrical cabinet reveals various electronic components and wiring used for control and regulatory technology.

'Diagram shows components of an electronic overload relay with carrier, accessories, and mechanical parts.'

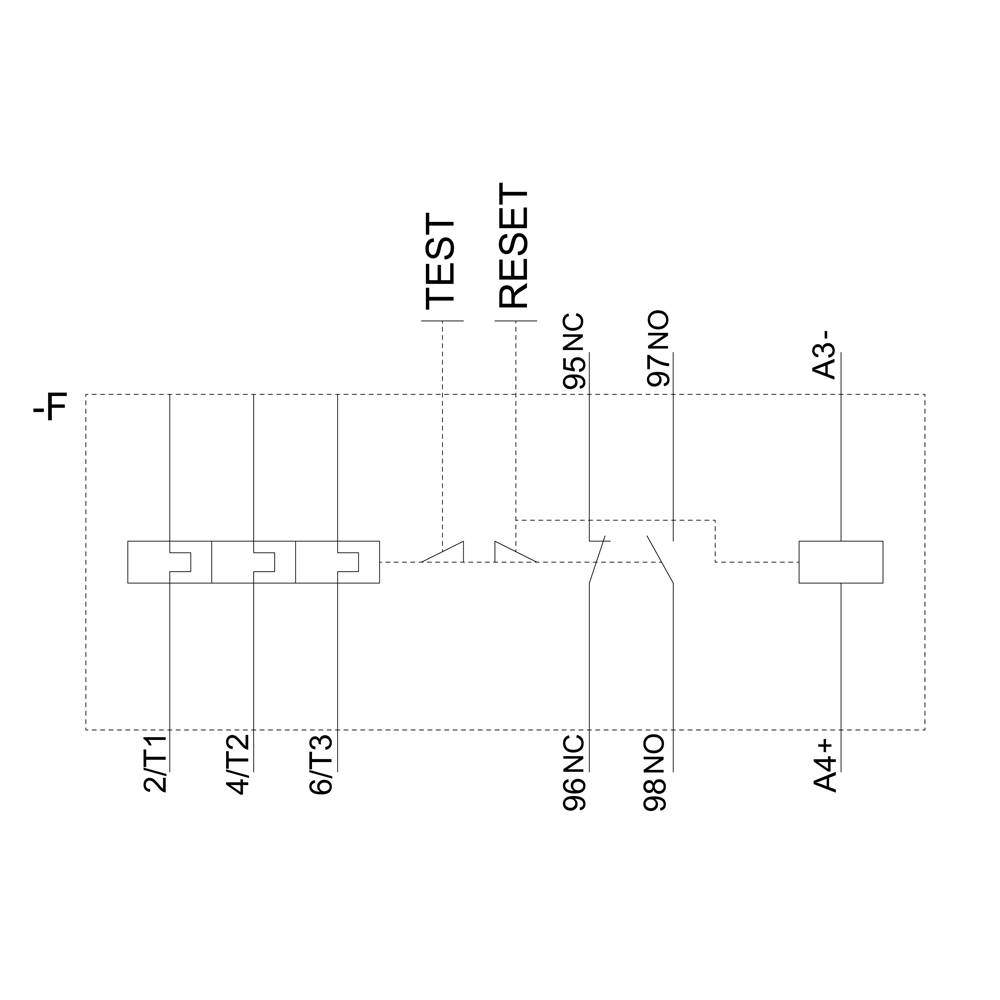

Circuit diagram with multiple contacts, including 'TEST', 'RESET', and numerical labels; shows electrical connection points.

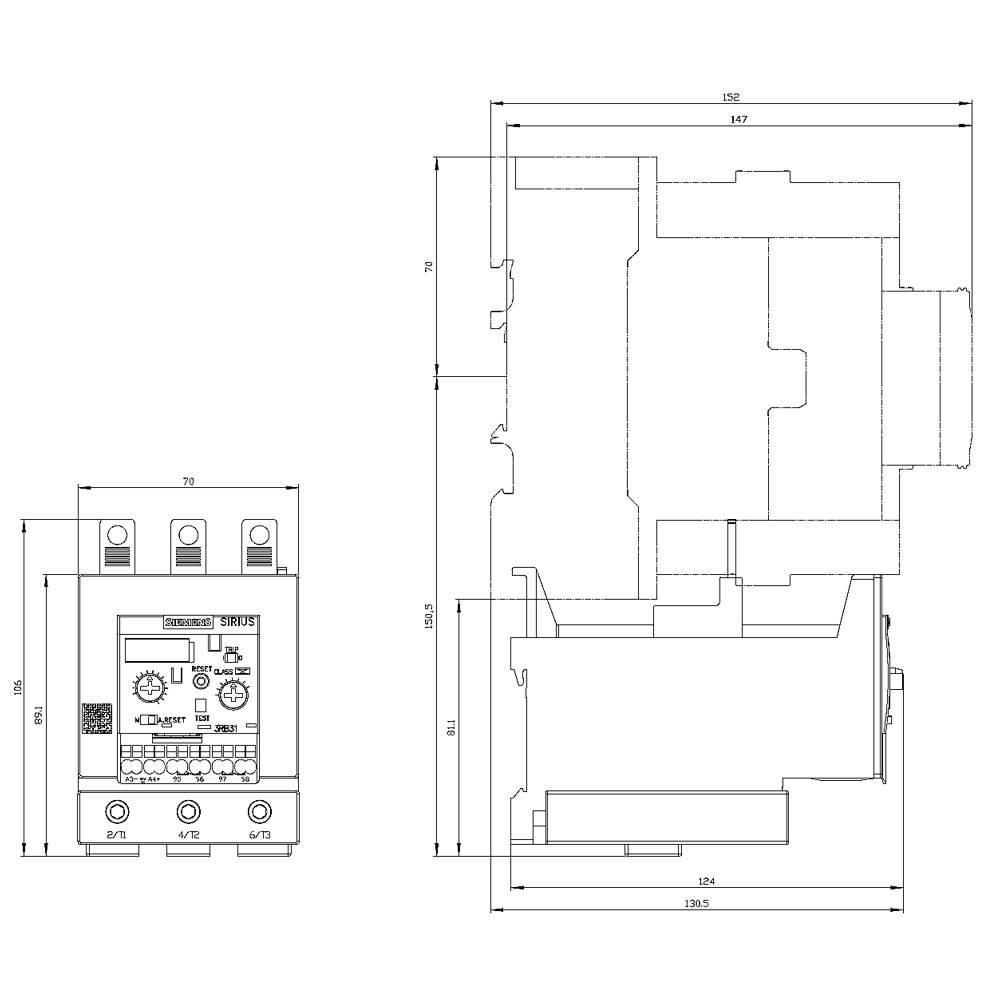

'Technical drawing of an electronic device with dimensions. Shows front view and side view with detailed measurements.'

1/5

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Contact type

1 maker

1 breaker

Type

3RB3143-4UD0

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 315.00 / piece)

€ 315.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: installing contactor
Contact protection against electrical shock: Finger-safe vertically for contact from the front according to IEC 60529
Number of pins: 3
Tripping class: CLASS 5E, 10E, 20E and 30E adjustable

Packaging type: Piece

Product type: O/L relay

Type: 3RB3143-4UD0

Type: S3

Functions: Overload

Operating voltage: 1000 V AC

Amperage adjustment range (min.): 12.5 A

Amperage adjustment range (max.): 50 A

Adjustment range (amperage): 12.5 - 50 A

Contact type: 1 maker
1 breaker

Connection: Screws

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 70 mm

Height: 106 mm

Dim: (L x W x H) 124 x 70 x 106 mm

Content: 1 pc(s)

AWG max.: 1

AWG (min.): 10

Nominal current: 50 A

Length: 124 mm

Cross section (flexible) (min.): 2.5 mm²

Cross section (inflexible) (min.): 2.5 mm²

: Separate positioning

: 1

: 1

: 0

: Adjustable

: Screw connection

UKCA: yes
