Name: O/L relay Siemens 3RU2116-0DC1 1 pc(s)
Brand: Siemens
SKU: 1749921
Availability: BackOrder

Electronic overload relay by Siemens with black and grey surface, multiple connections and control buttons, Sirius model.

An open electrical cabinet with several rows of electrical components and cables, neatly arranged.

'Diagram of a protective system with various components: overload relays, accessory modules and reset mechanisms, numbered 1 to 7.'

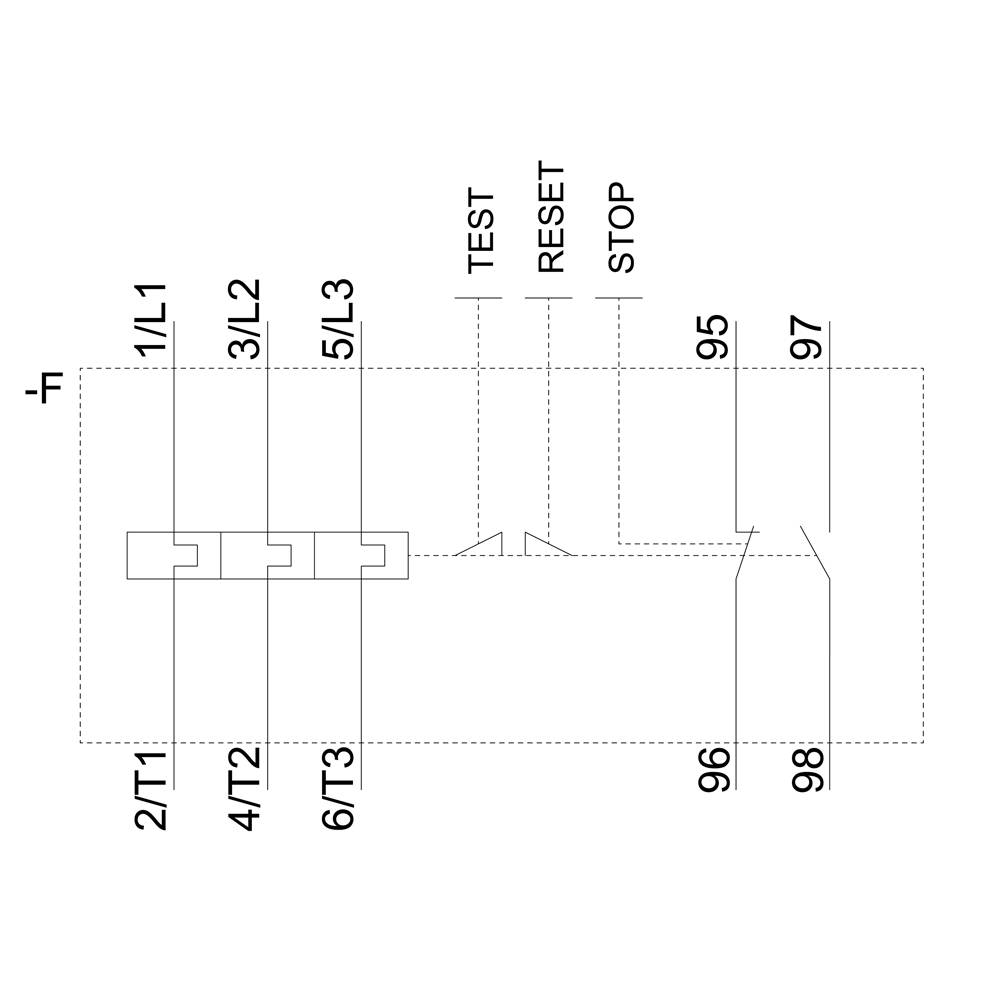

'Schematic diagram of an electrical switch with labels: 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3. Functions: TEST, RESET, STOP.'

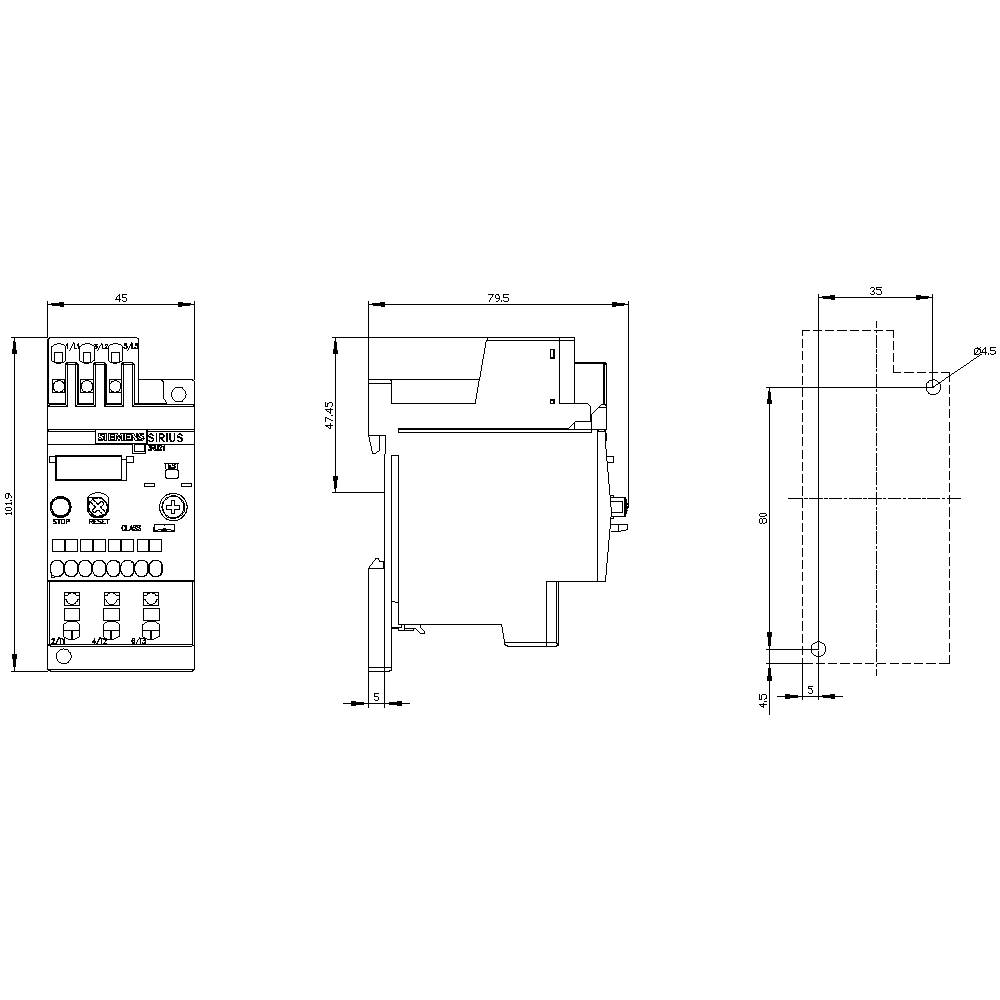

Technical drawing of an electrical device with front, side, and top view. Dimensions specified in millimetres.

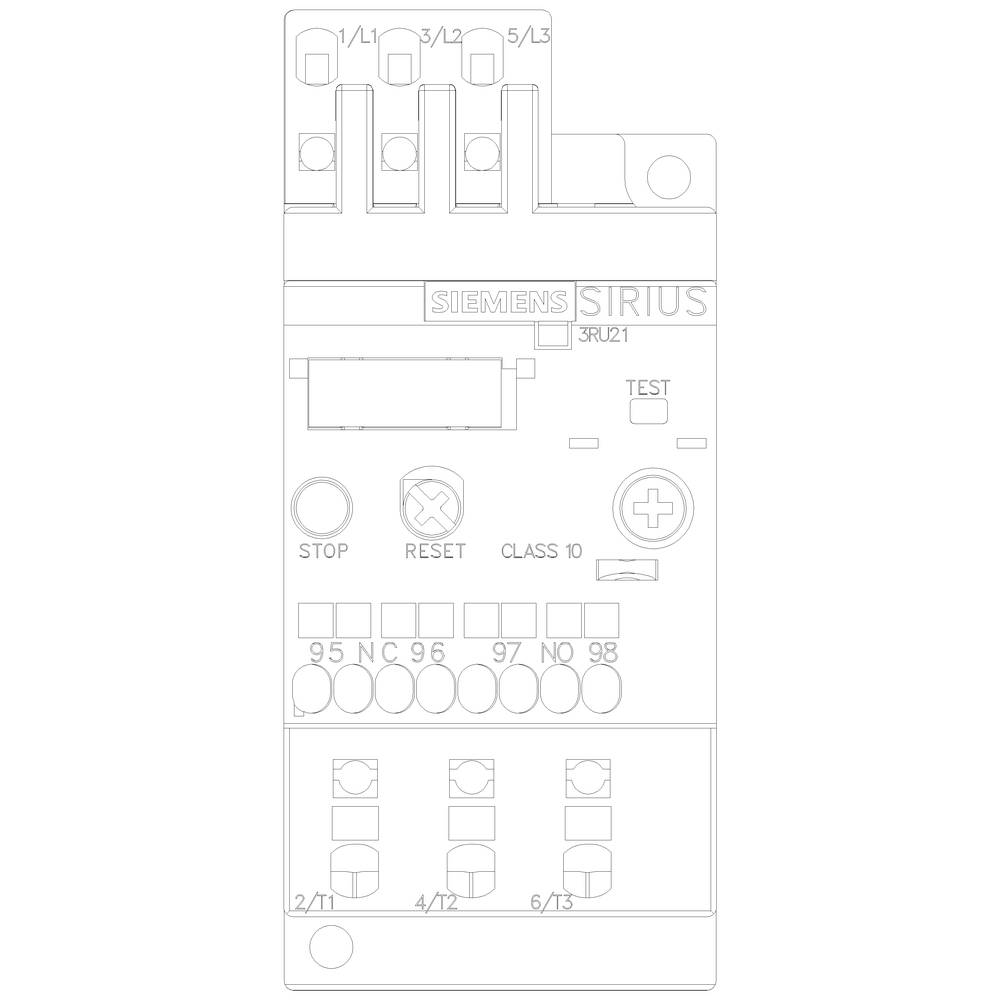

A Siemens electrical control unit with buttons for 'Stop' and 'Reset', LED display and connection terminals for protective circuits.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-0DC1

Type

S00

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-0DC1

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 0.22 A

Amperage adjustment range (max.): 0.32 A

Adjustment range (amperage): 0.22 - 0.32 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 102 mm

Depth: 79 mm

Dim: (W x H x D) 45 x 102 x 79 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 0.32 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1749921 O/L relay Siemens 3RU2116-0DC1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1749921 O/L relay Siemens 3RU2116-0DC1 1 pc(s)

Description

Overload relay 0.45...0.63 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Description

Overload relay 0.45...0.63 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
