O/L relay Siemens 3RU2116-0KC1 1 pc(s)

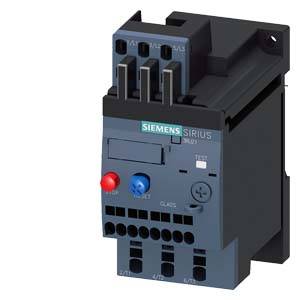

An electrical contactor from the Siemens Sirius series with multiple connection terminals and a test button displays control device components.
An open electrical cabinet with various electronic components and cables arranged in an orderly manner.
'Diagram of the thermal overload relay 3RU21 with components such as carrier, remote reset, push button, and mechanical reset.'

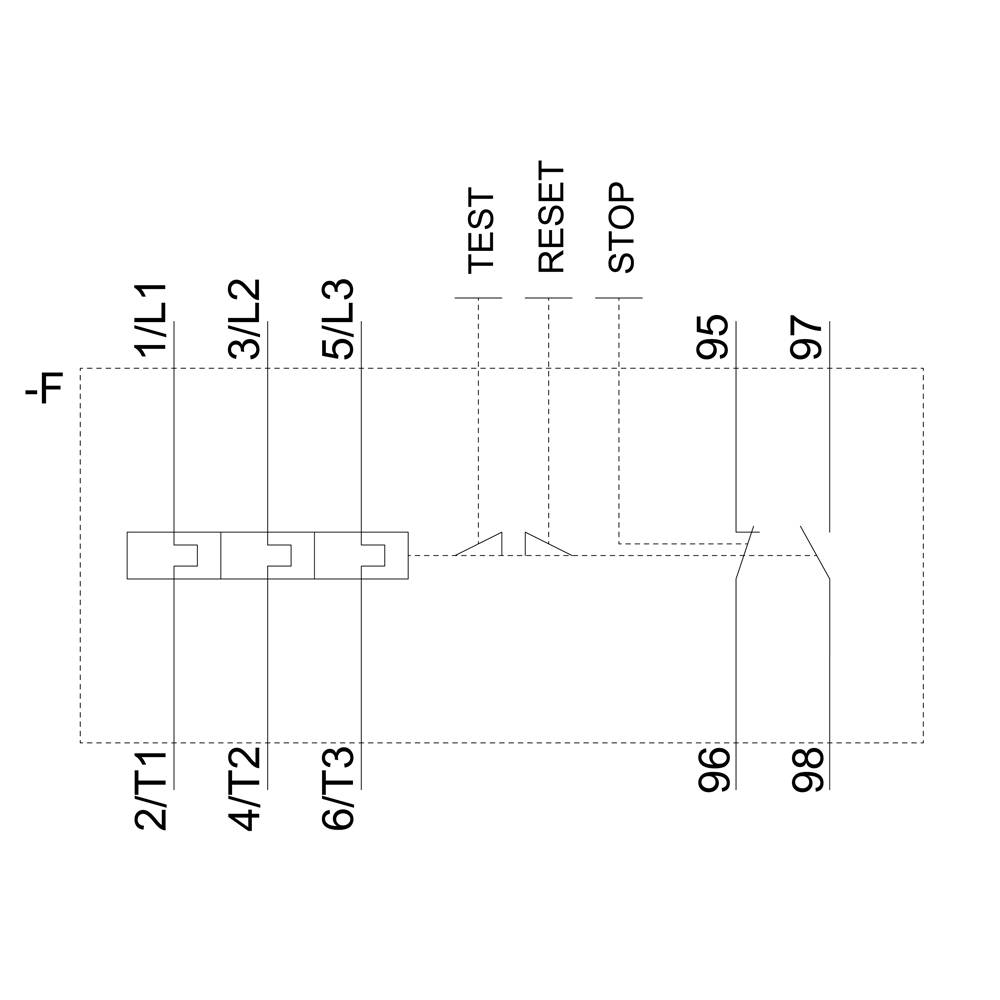

A technical diagram of an electrical circuit diagram. Shows connection points such as '1/L1', '2/T1', '3/L2', '4/T2', etc., connected by lines.

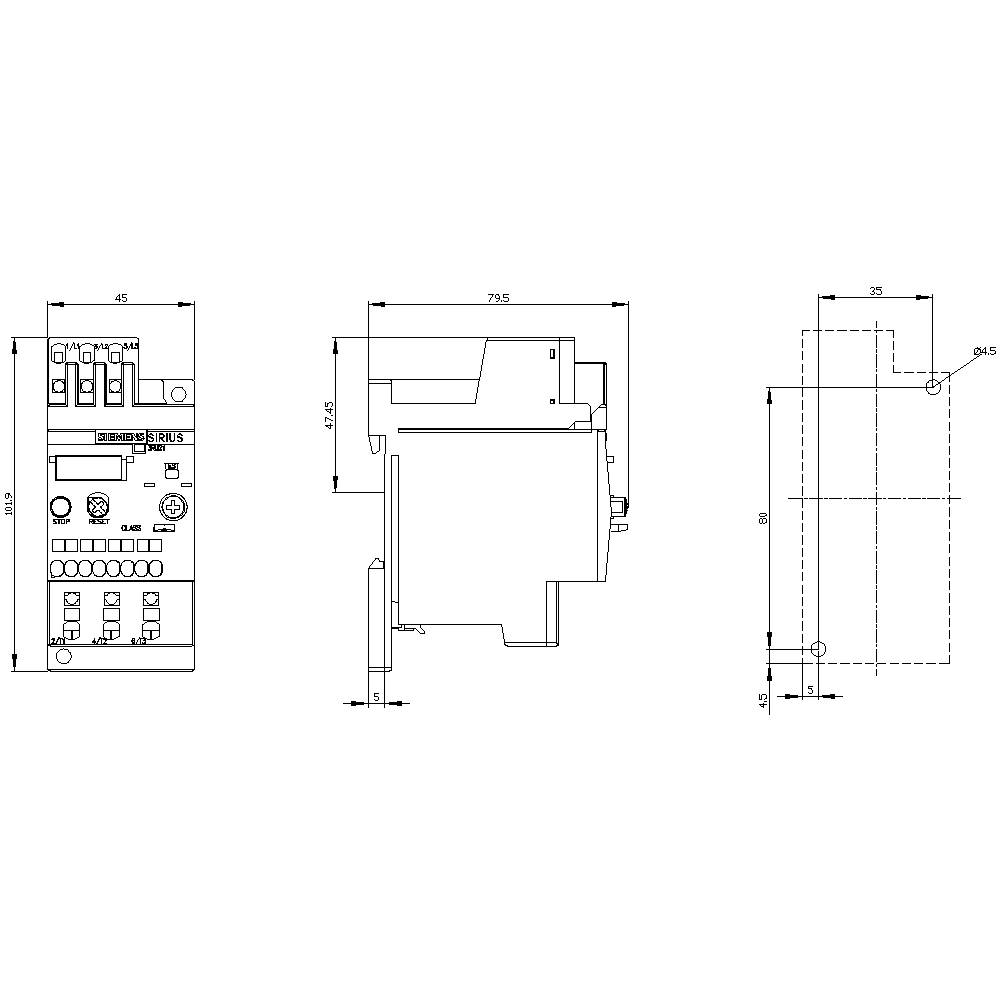

Technical drawing of an electrical device showing front, side, and top views. Dimensions and connections illustrated.

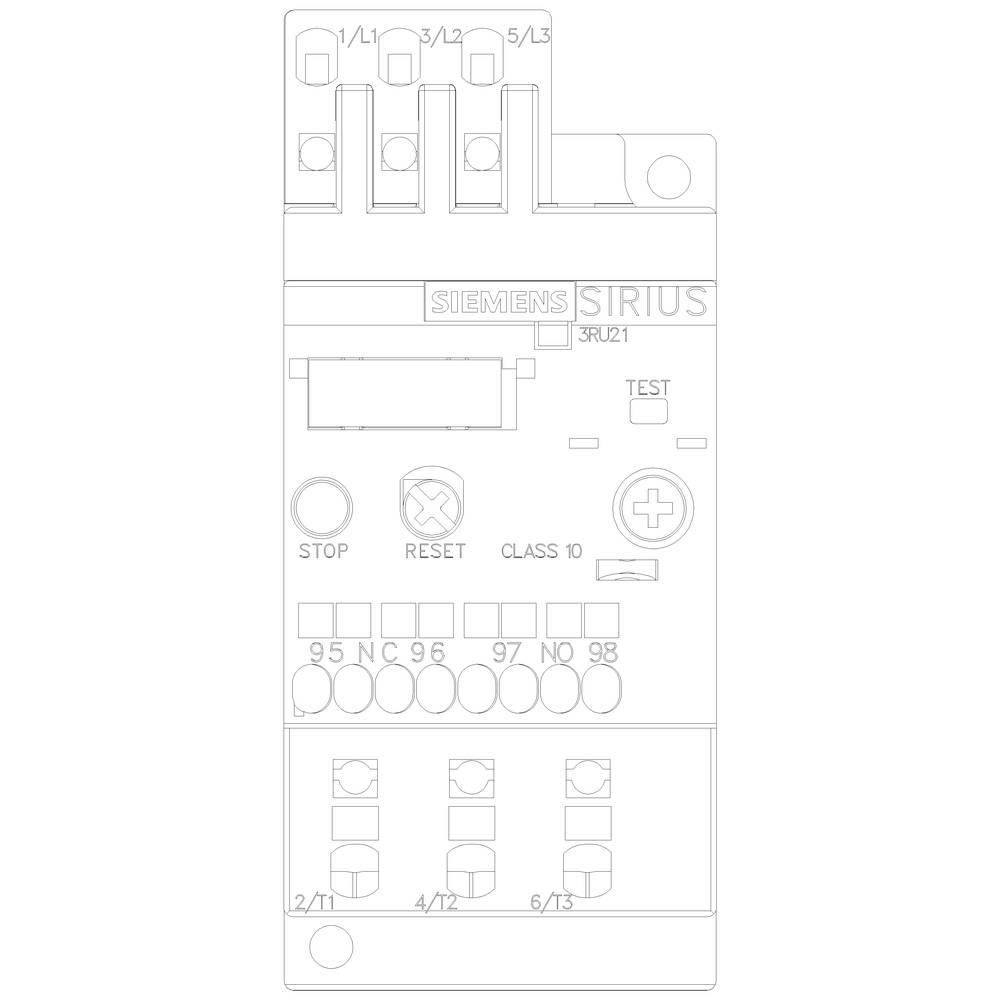

A Siemens SIRIUS overload relay, Model 3RU21, with stop, reset, and test buttons. Connections and adjustment options are visible.
1/6
Image similar
Product type
O/L relay
Functions
Overload
Type
3RU2116-0KC1
Type
S00
Features
Automatic/manual switch
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 114.99 / piece)
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Fuse gG: 6 A, quick-acting: 10A
Product type

O/L relay

Type

3RU2116-0KC1

Type

S00

Functions

Overload

Features

Automatic/manual switch

Operating voltage

690 V

Amperage adjustment range (min.)

0.90 A

Amperage adjustment range (max.)

1.25 A

Adjustment range (amperage)

0.90 - 1.25 A

Connection

Spring-loaded connector

IP20

Min. temperature

-40 °C

Max. temperature

+70 °C

Width

45 mm

Height

102 mm

Depth

79 mm

Dim

(W x H x D) 45 x 102 x 79 mm

Content

1 pc(s)

AWG max.

12

AWG (min.)

20

Nominal current

1.25 A

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Cross section (flexible) (min.)

0.5 mm²

Cross section (inflexible) (min.)

0.5 mm²

Separate positioning

1

1

0

CLASS 10

Spring clamp connection

690 V

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1730558 O/L relay Siemens 3RU2116-0KC1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730558 O/L relay Siemens 3RU2116-0KC1 1 pc(s)

Description

Phase barriers Increased air clearances / creepage distances for 3RV2 size S00/S0 with screw terminal
