Name: O/L relay Siemens 3RU2116-1BC1 Piece 1 pc(s)
Brand: Siemens
SKU: 1730562
Availability: BackOrder

A Siemens electrical switching device, Sirius model. Shows various connections and control elements such as 'Stop' and 'Reset'.

An open electrical cabinet with numerous electrical components, cables, and switches, neatly organised and clearly visible.

Mechanical circuit diagram of an electrical control system with various components such as push buttons, reset elements, and accessories.

Circuit diagram of an electrical device with six terminals, numbered from 1 to 6. Functions: TEST, RESET and STOP.

Three-dimensional technical drawing of an electronic device with dimensions: left 68 mm, centre 76.6 mm, right 94.5 mm.

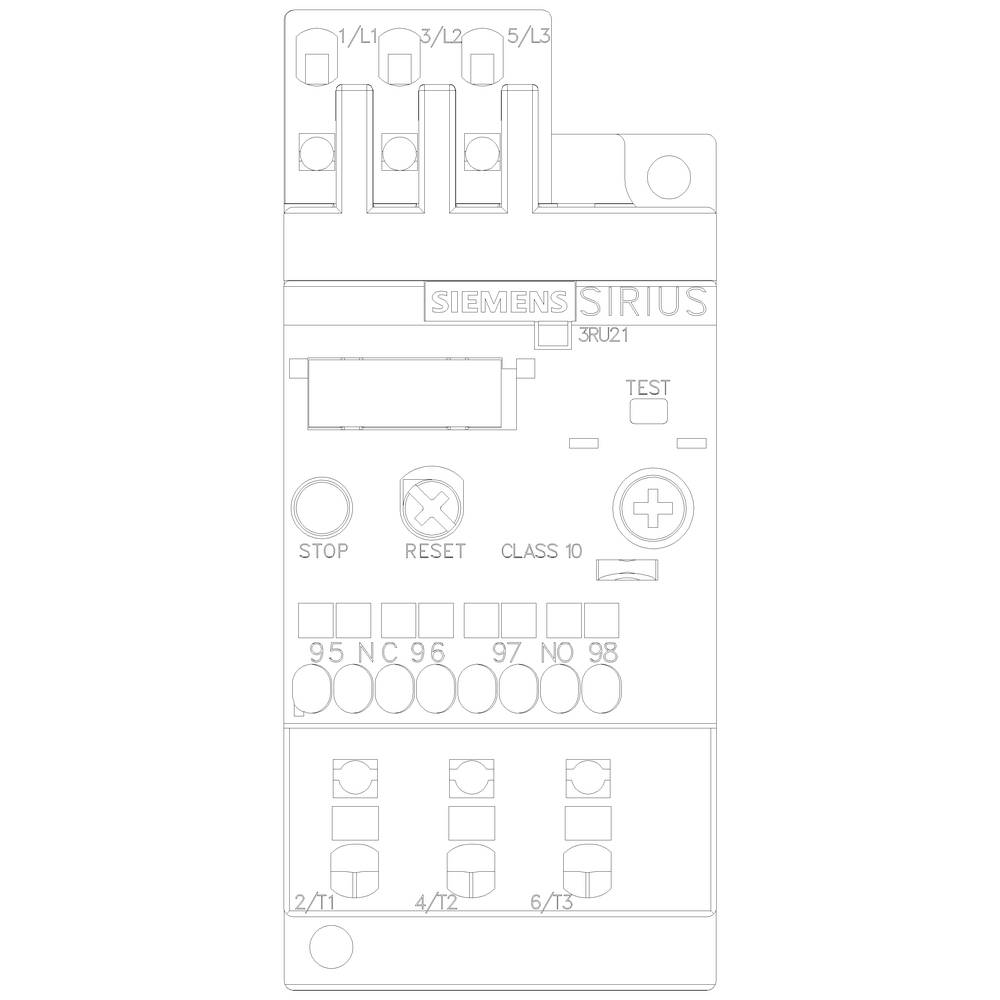

'Siemens SIRIUS 3RU21' motor protection switch with test and reset button, top and bottom connections.

1/6

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Type

3RU2116-1BC1

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Packaging type: Piece

Product type: O/L relay

Type: 3RU2116-1BC1

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 1.4 A

Amperage adjustment range (max.): 2.0 A

Adjustment range (amperage): 1.4 - 2.0 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 102 mm

Depth: 79 mm

Dim: (W x H x D) 45 x 102 x 79 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 2 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730562 O/L relay Siemens 3RU2116-1BC1 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730562 O/L relay Siemens 3RU2116-1BC1 Piece 1 pc(s)

Description

Position switch Metal enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/1 NC slow-action contacts Roller lever with plastic roller 13 mm
