Name: O/L relay Siemens 3RU2116-1DC0 1 pc(s)
Brand: Siemens
SKU: 1730566
Availability: BackOrder

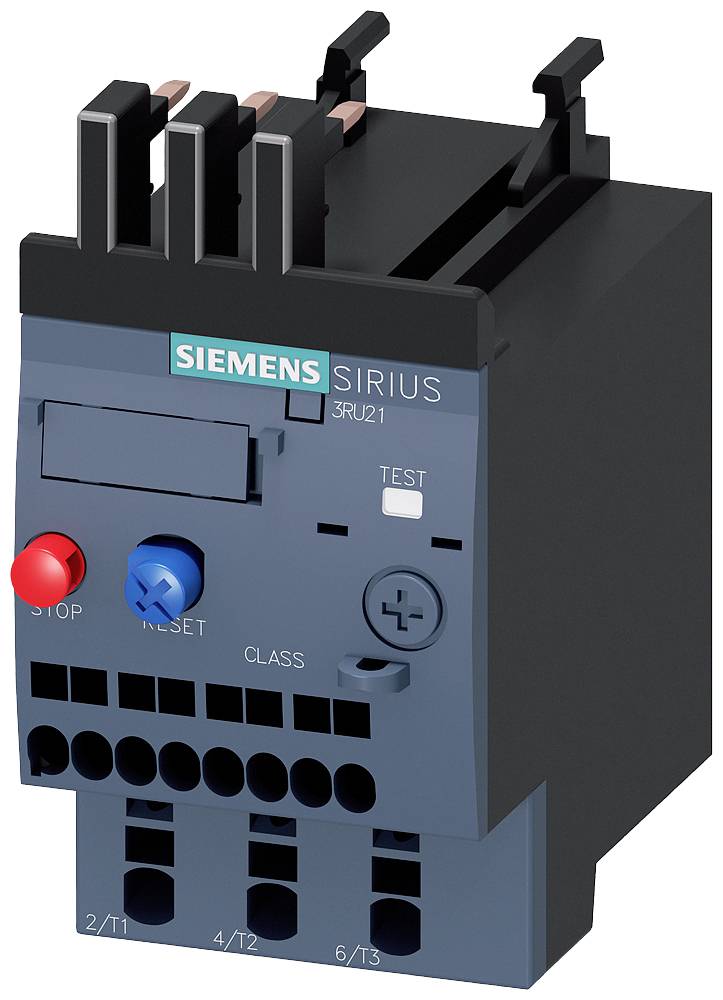

A Siemens Sirius overload relay with a red 'Stop' and a blue 'Reset' button, and a dial for class setting.

An open electrical cabinet with electrical components and wiring, showing a neat arrangement and routing of the technical equipment.

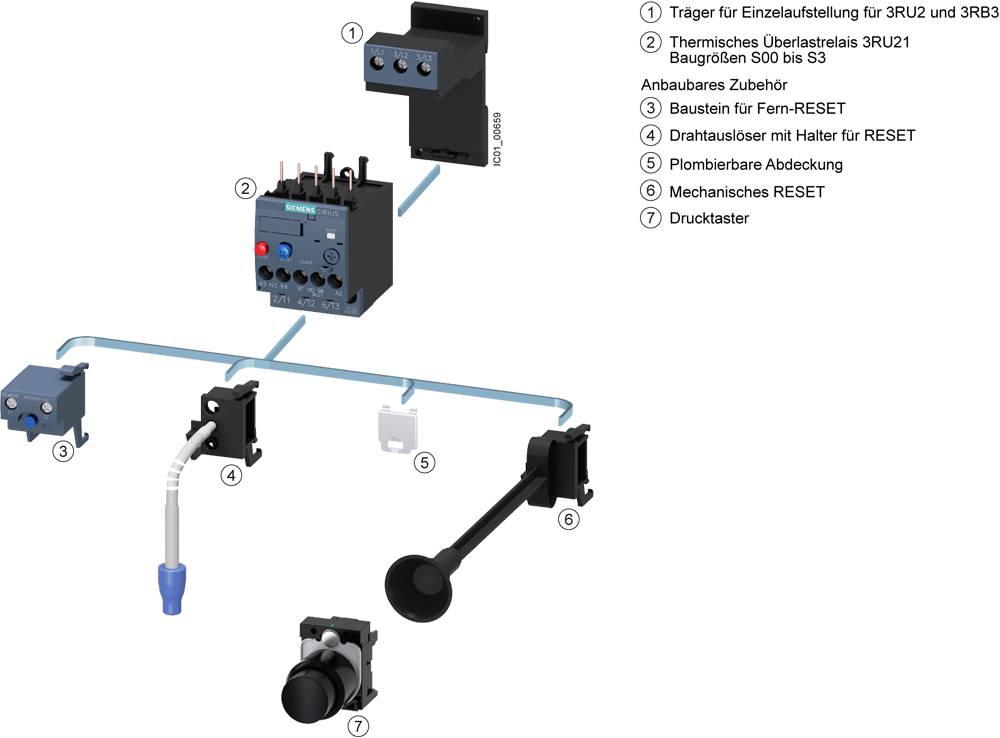

Diagram of a control panel with components: Carrier for individual mounting, thermal overload relay, remote RESET, push button.

Circuit diagram of an electronic device with labels: 'TEST', 'RESET', 'STOP', and connections '2/T1', '4/T2', '6/T3'.

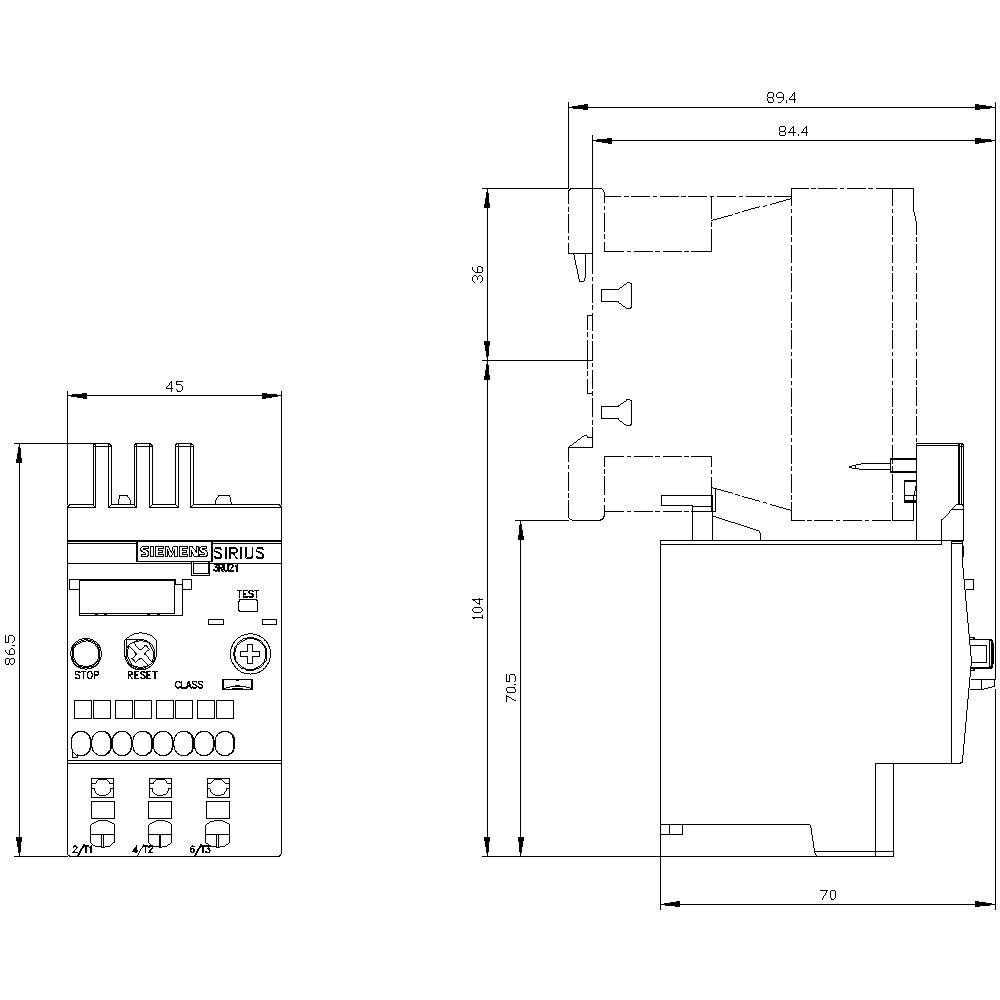

Technical drawing of a SIRIUS switching device with dimensions and labels, showing front and side views for installation purposes.

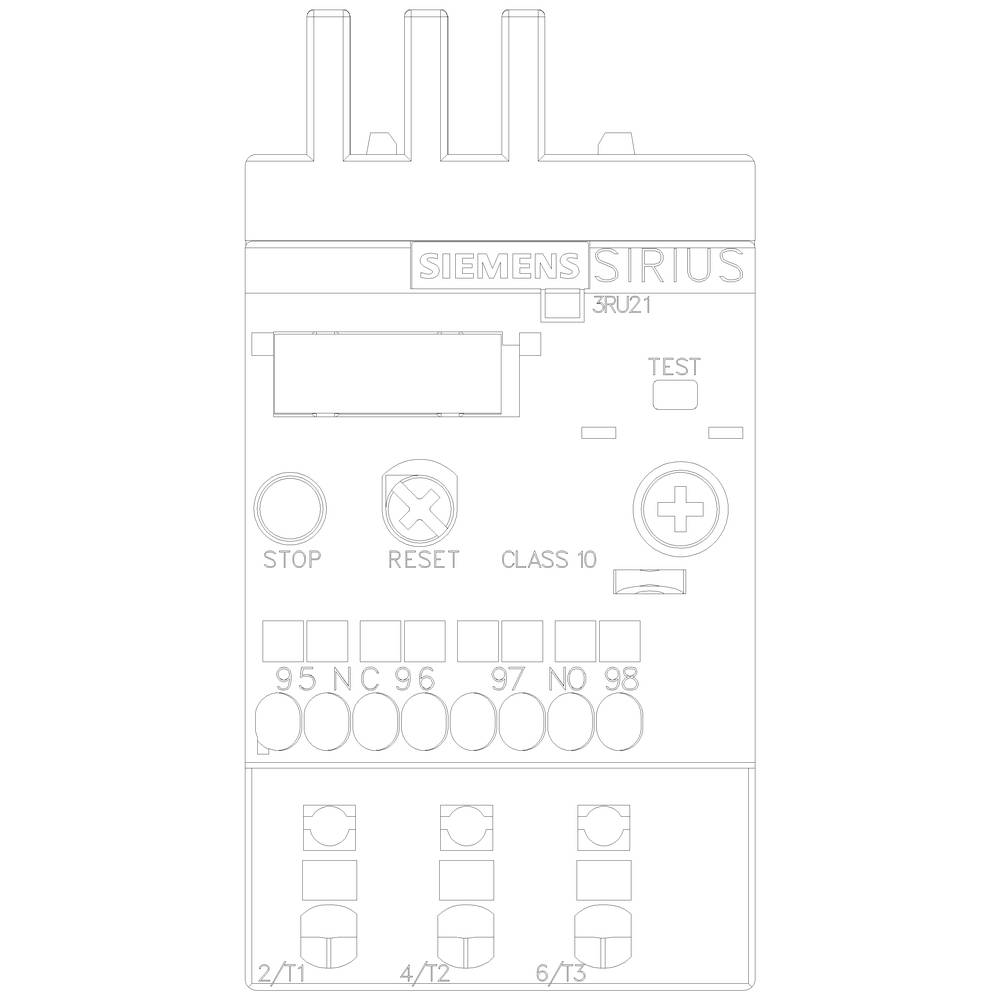

An electrical switching device with 'Stop', 'Reset' buttons and a rotary control for 'Class 10', relevant for control applications.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-1DC0

Type

S00

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-1DC0

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 2.2 A

Amperage adjustment range (max.): 3.2 A

Adjustment range (amperage): 2.2 - 3.2 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 87 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 87 x 70 mm

Content: 1 pc(s)

Weight: 0.1650 kg

AWG max.: 12

AWG (min.): 20

Nominal current: 3.2 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730566 O/L relay Siemens 3RU2116-1DC0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730566 O/L relay Siemens 3RU2116-1DC0 1 pc(s)

Description

Overload relay 3.5...5.0 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset

Description

Overload relay 3.5...5.0 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset
