Name: O/L relay Siemens 3RU2116-1EC1 Piece 1 pc(s)
Brand: Siemens
SKU: 1700502
Availability: BackOrder

A Siemens Sirius contactor module with connections at the top, control buttons, and viewing window at the bottom, designated as 3RU21.

An open electrical control cabinet with multiple levels of electronic components and wiring, used for controlling industrial processes.

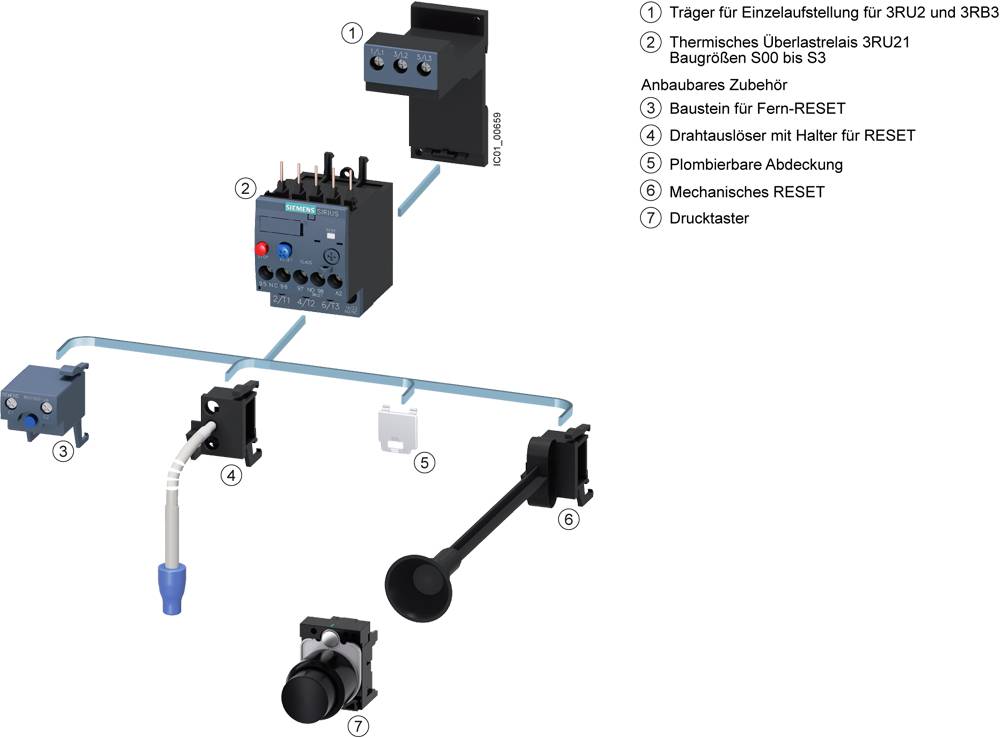

Image of an electrical circuit with numbering: 1. Carrier 3RU21, 2. Overload relay, 3. Remote RESET, 4. Wire trigger, 5. Cover, 6. Mechanical RESET, 7. Push button.

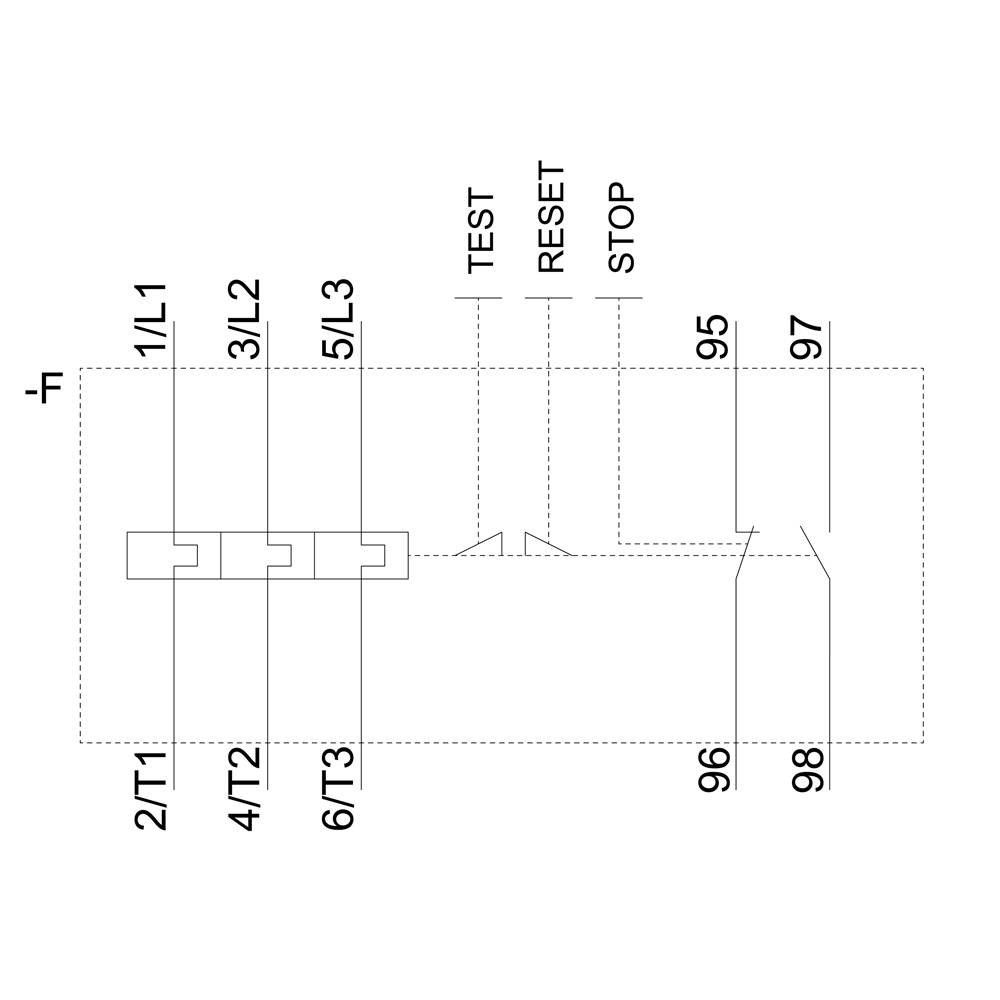

Diagram of an electrical switch with connections: 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3. Functions: TEST, RESET, STOP.

Drawing of an electrical device with front and side views. Dimensions are specified: width 45 mm, height 47.6 mm, depth 79.5 mm.

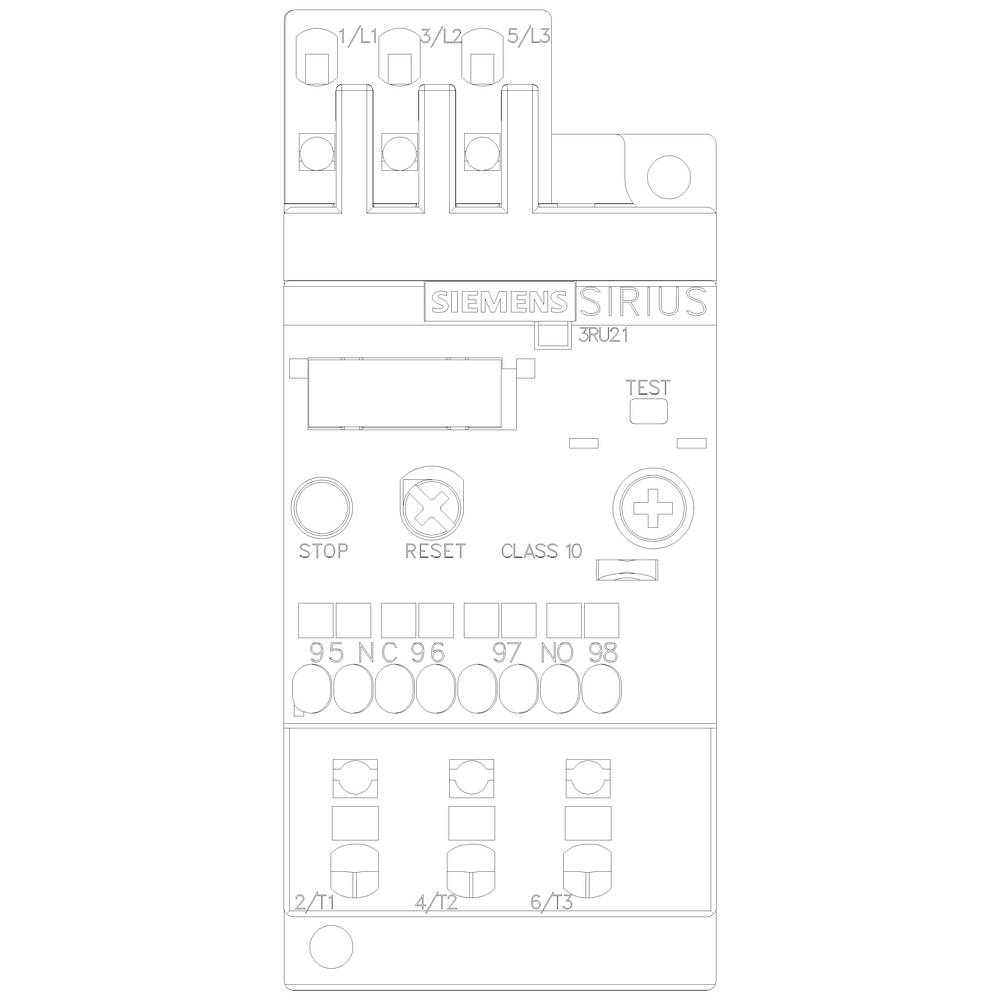

'Siemens SIRIUS 3RU21' thermal overload relay. The circuit diagram shows connections, stop and reset buttons, test button, and adjustment range.

1/6

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Type

3RU2116-1EC1

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Packaging type: Piece

Product type: O/L relay

Type: 3RU2116-1EC1

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 2.8 A

Amperage adjustment range (max.): 4.0 A

Adjustment range (amperage): 2.8 - 4.0 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 102 mm

Depth: 79 mm

Dim: (W x H x D) 45 x 102 x 79 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 4 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1700502 O/L relay Siemens 3RU2116-1EC1 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1700502 O/L relay Siemens 3RU2116-1EC1 Piece 1 pc(s)

Description

Overload relay 4.5...6.3 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset

Description

Overload relay 4.5...6.3 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset
