Name: O/L relay Siemens 3RU2116-1JB0 Piece 1 pc(s)
Brand: Siemens
SKU: 1730703
Availability: InStock

A Siemens electrical contactor with multiple inputs and coloured buttons for control and switching purposes.

Open electrical cabinet with multiple rows of electrical components and cables, used for controlling and distributing electricity in a system.

'Diagram of an electrical switchgear with labelling of components: Support, Thermal Overload Relay, Remote RESET, Mechanical RESET, and Push Button.'

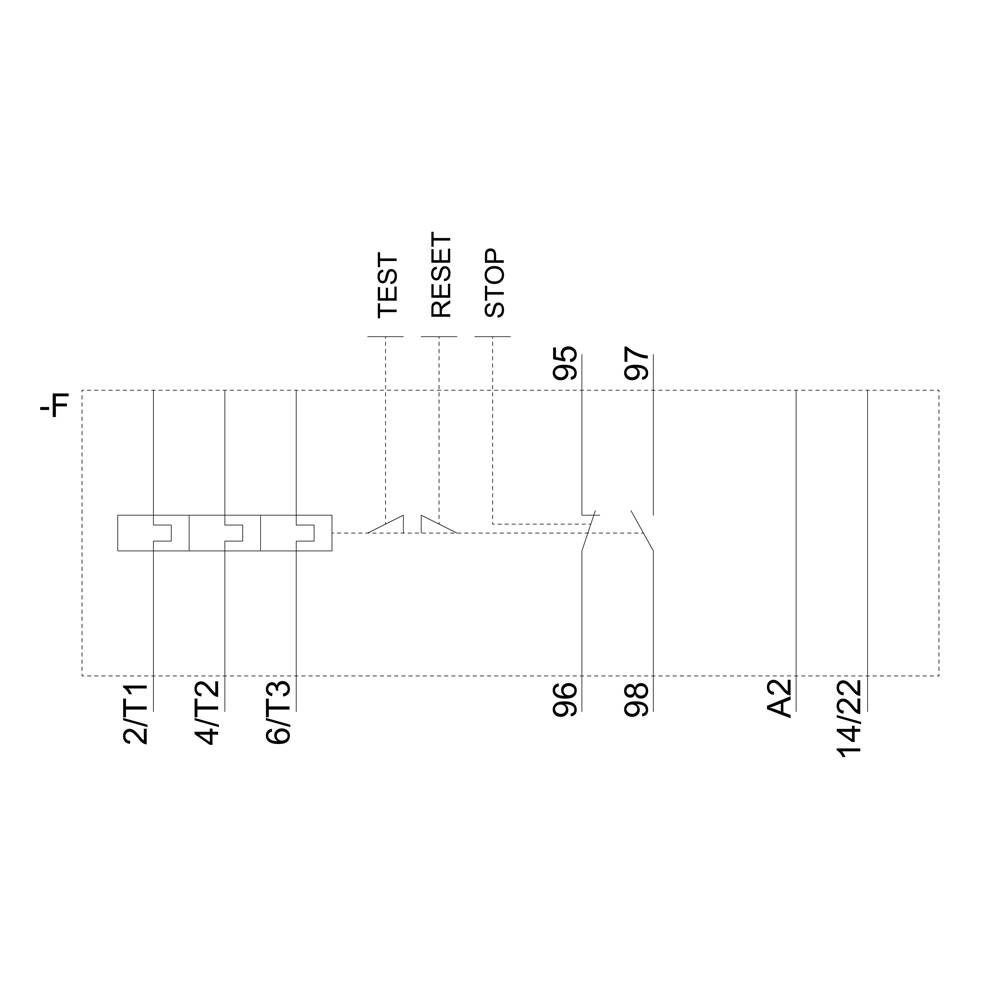

A circuit diagram shows an electrical schematic with labels 'TEST', 'RESET', 'STOP' and numbers for various connections.

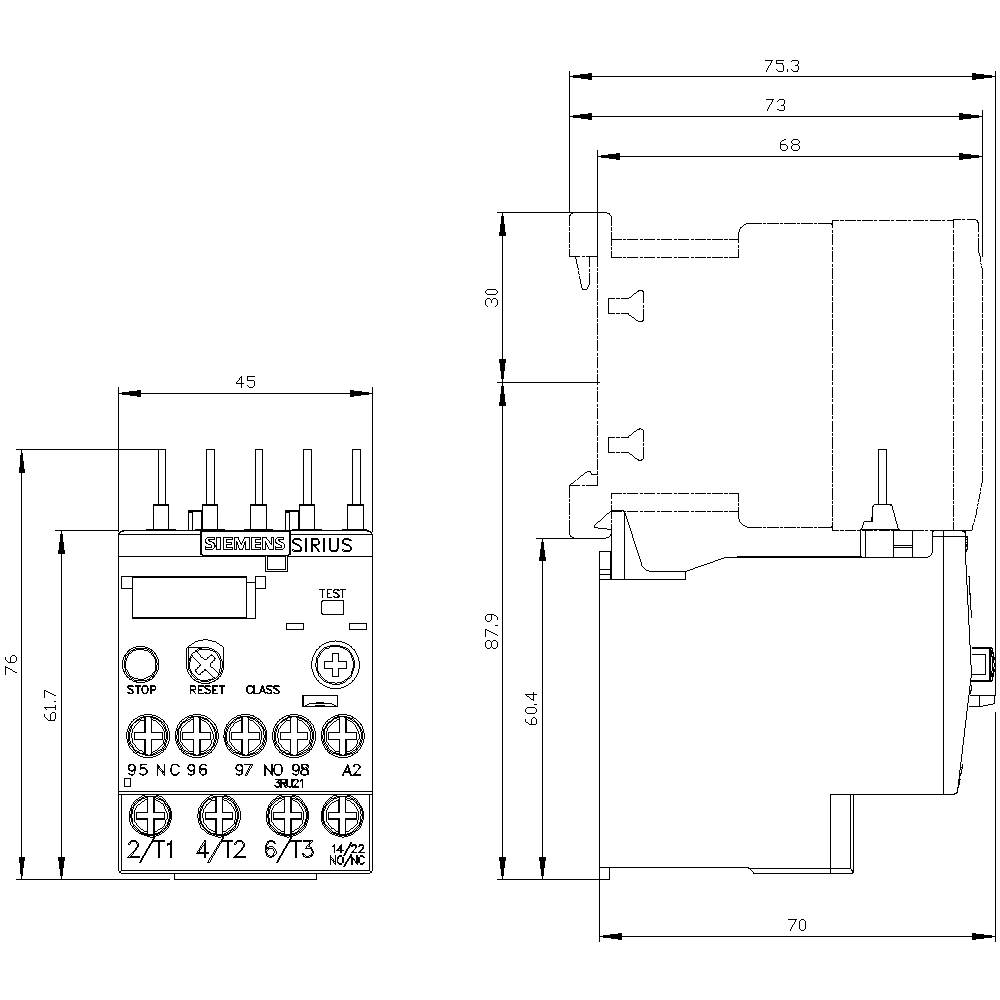

'Technical drawing of an electrical device with connections and dimensions. Front and side view with detailed measurements.'

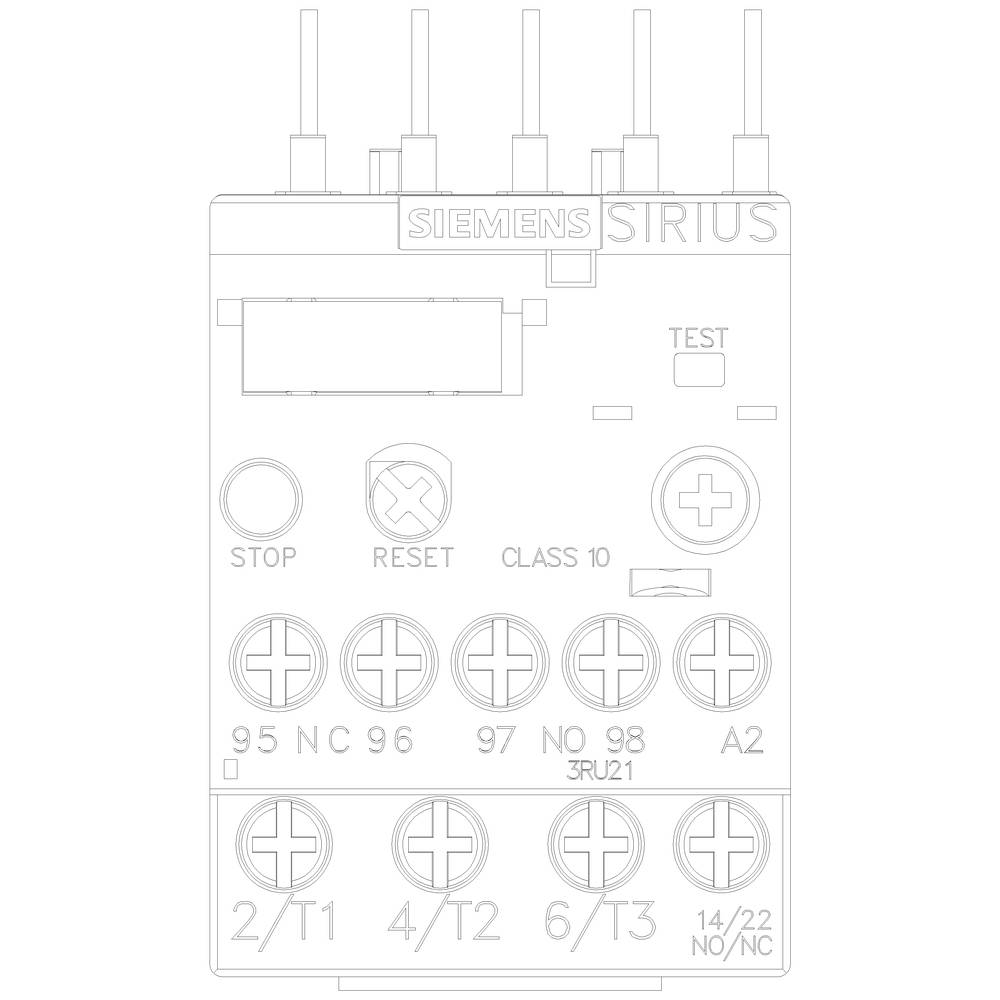

A Siemens electrical switchgear with buttons for Stop and Reset, along with connections. Labelling shows Class 10 and Test.

1/6

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Switching voltage (max.)

690 V DC/AC

Type

3RU2116-1JB0

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Packaging type: Piece

Product type: O/L relay

Type: 3RU2116-1JB0

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 7.0 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7.0 - 10 A

Switching voltage (max.): 690 V DC/AC

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 76 x 70 mm

Content: 1 pc(s)

Weight: 0.1452 kg

AWG max.: 12

AWG (min.): 20

Factory colour: Multicolour

Nominal current: 10 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730703 O/L relay Siemens 3RU2116-1JB0 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730703 O/L relay Siemens 3RU2116-1JB0 Piece 1 pc(s)

Description

Overload relay 11...16 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 11...16 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
