Name: O/L relay Siemens 3RU2126-1CB0 1 pc(s)
Brand: Siemens
SKU: 1748380
Availability: BackOrder

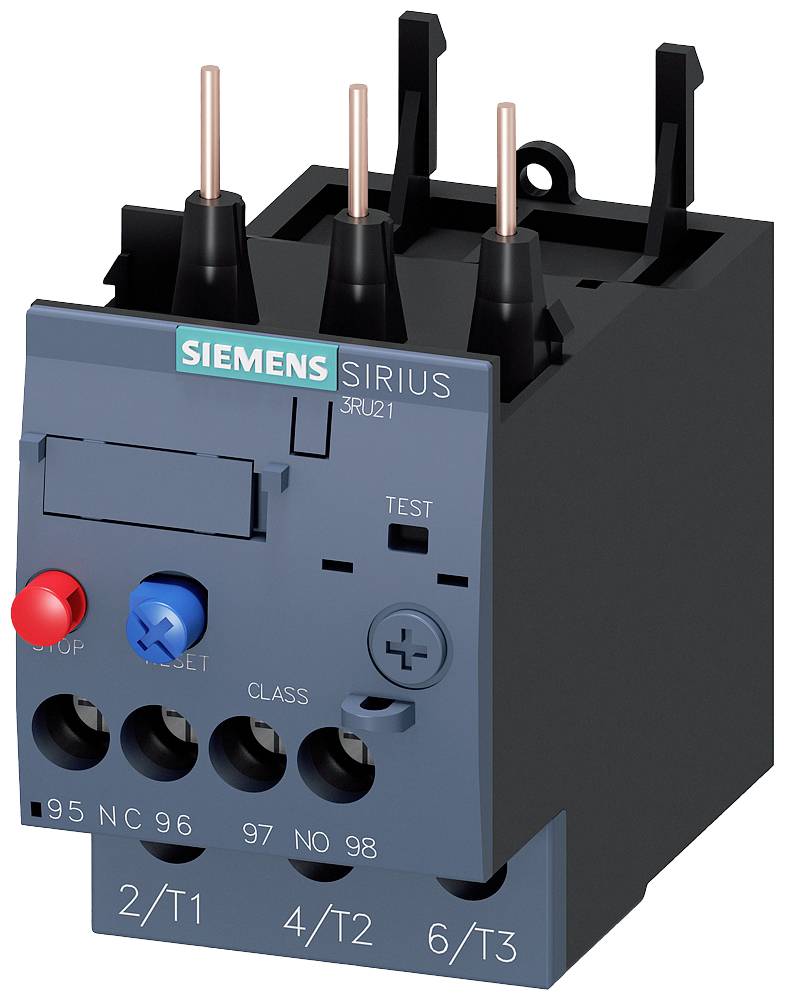

Siemens overload relay with operating elements and connections, suitable for use in industrial control cabinets.

An open electrical cabinet with various electrical components and wiring visible.

'Illustration of electrical components with labelling: Carrier, Overload Relay, Remote RESET, Wire Trigger, Mechanical RESET and Push Button.'

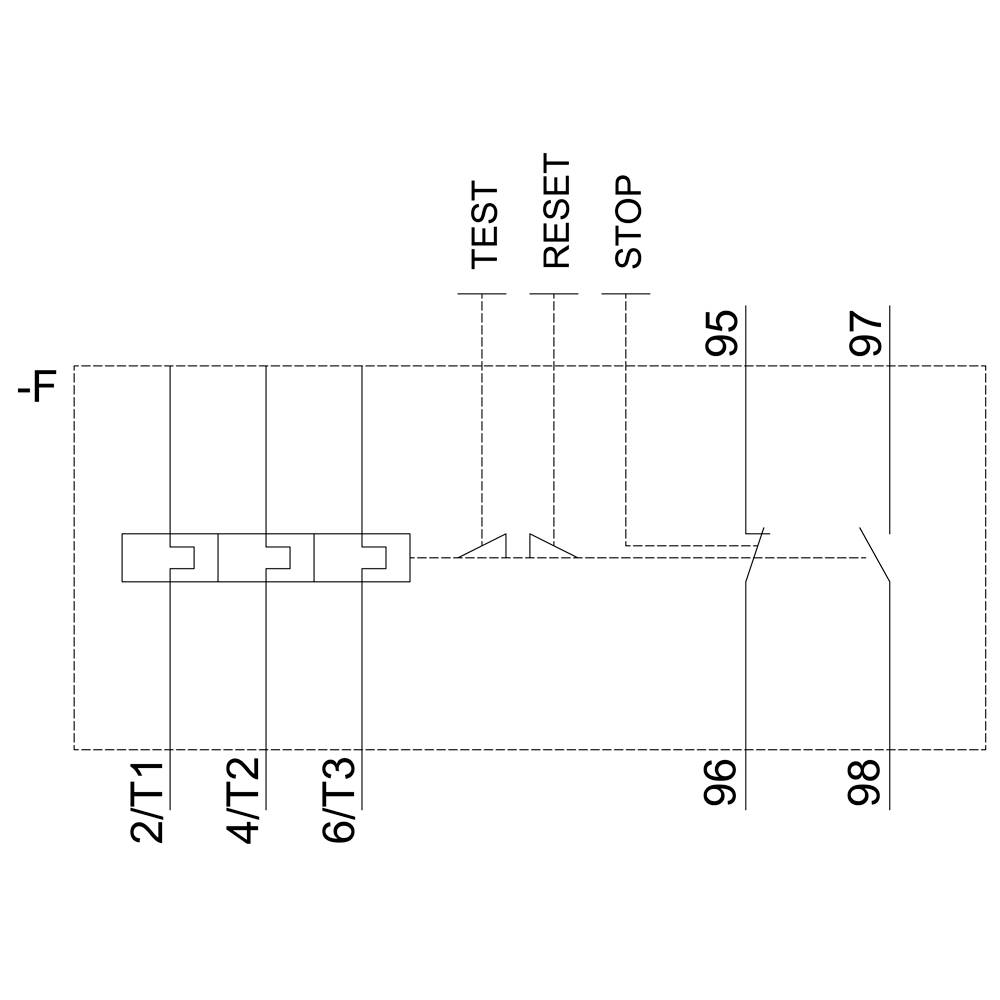

Circuit diagram of a device with control buttons for 'Test', 'Reset' and 'Stop'. The terminals are labelled '2/T1', '4/T2', '6/T3'.

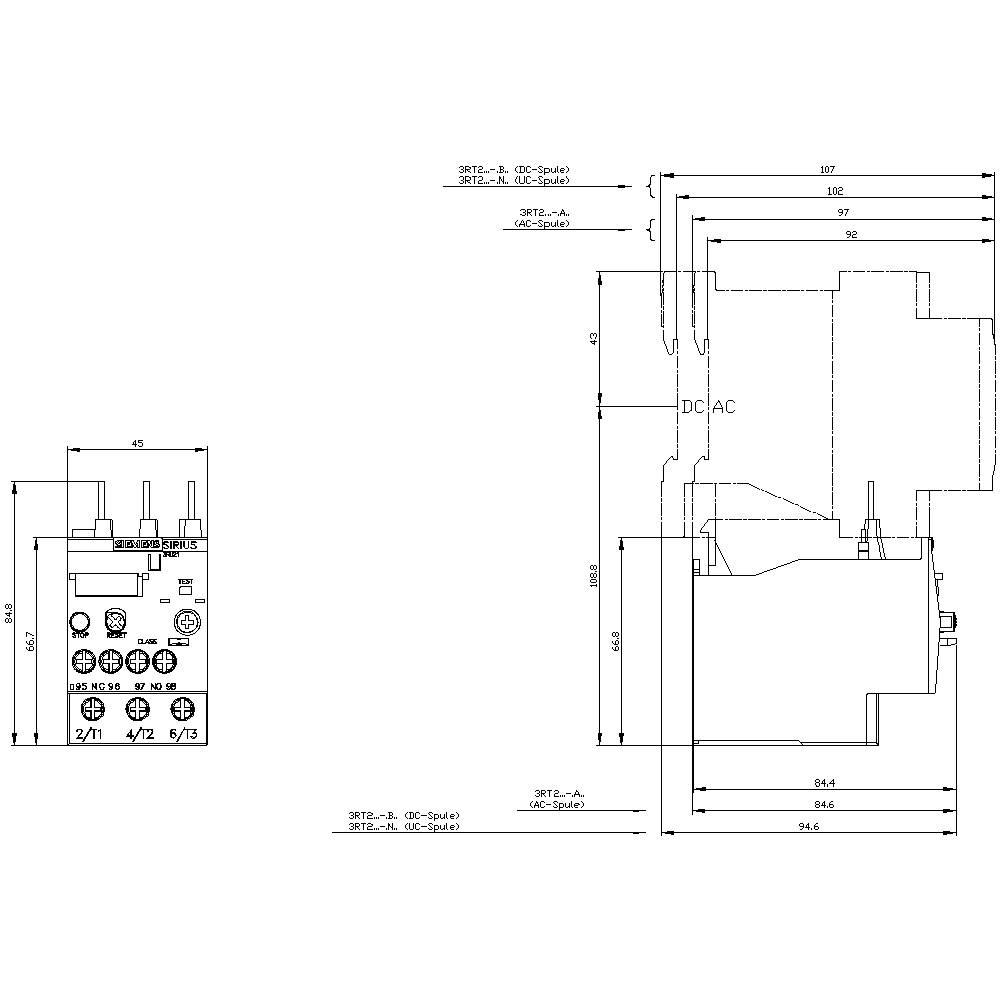

Technical drawing of an electronic switching device with dimensions in millimetres. Details of dimensions and connections visible.

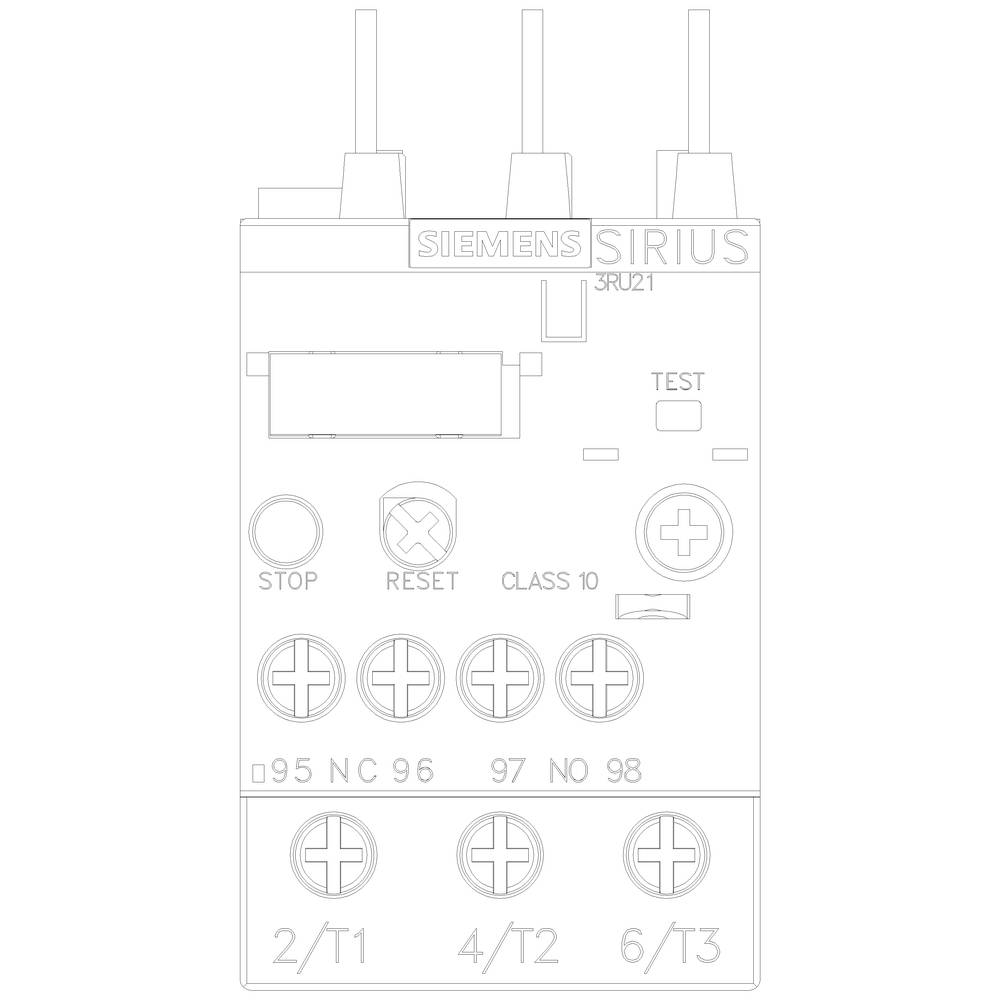

Electrical circuit protective switch with "Siemens SIRIUS" marking, stop and reset buttons, and test mode indicator.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Switching voltage (max.)

690 V DC/AC

Type

3RU2126-1CB0

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2126-1CB0

Type: S0

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 1.8 A

Amperage adjustment range (max.): 2.5 A

Adjustment range (amperage): 1.8 - 2.5 A

Switching voltage (max.): 690 V DC/AC

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 85 mm

Depth: 85 mm

Dim: (W x H x D) 45 x 85 x 85 mm

Content: 1 pc(s)

Weight: 0.1716 kg

AWG max.: 8

AWG (min.): 16

Nominal current: 2.5 A

Cross section (flexible) (max.): 10 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (min.): 1 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1748380 O/L relay Siemens 3RU2126-1CB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1748380 O/L relay Siemens 3RU2126-1CB0 1 pc(s)

Description

Overload relay 4.5...6.3 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Description

Overload relay 4.5...6.3 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
