Name: O/L relay Siemens 3RU2126-4AB0 Piece 1 pc(s)
Brand: Siemens
SKU: 1730726
Availability: InStock

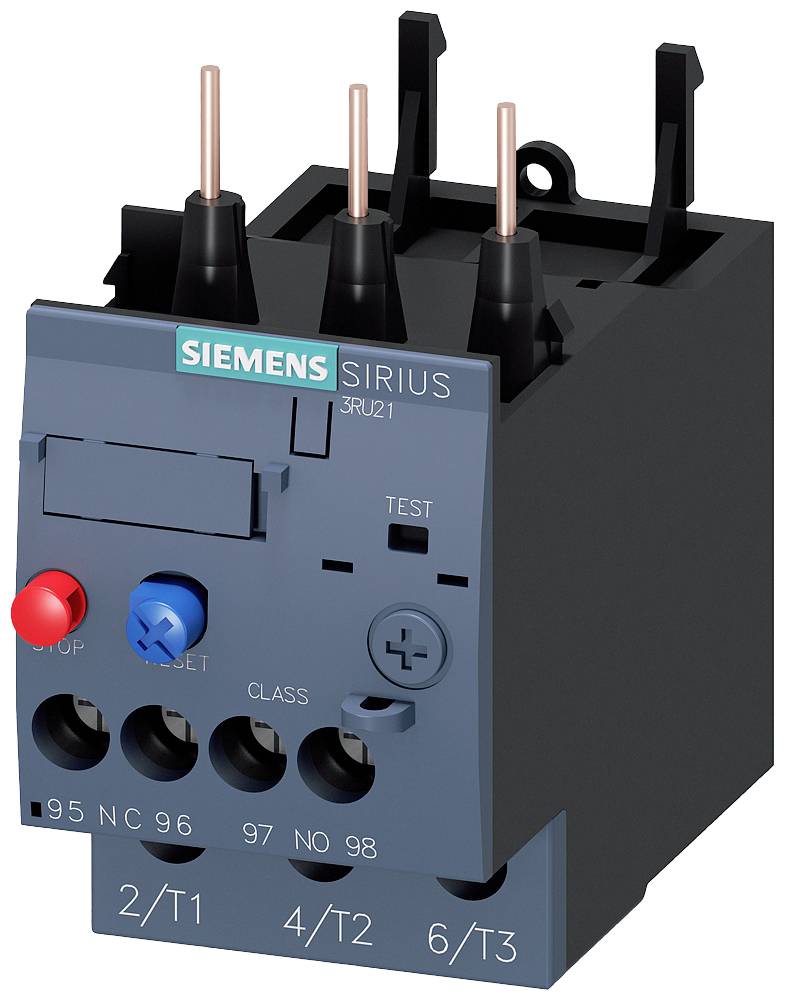

'Siemens SIRIUS' overload relay in grey and black with red and blue control buttons and three connection terminals at the top.

An open electrical cabinet with multiple shelves, on which electrical components and cable connections are arranged.

Diagram shows electrical components and accessories (1-7) for thermal overload relay 3RU2. Includes carrier, module, cover.

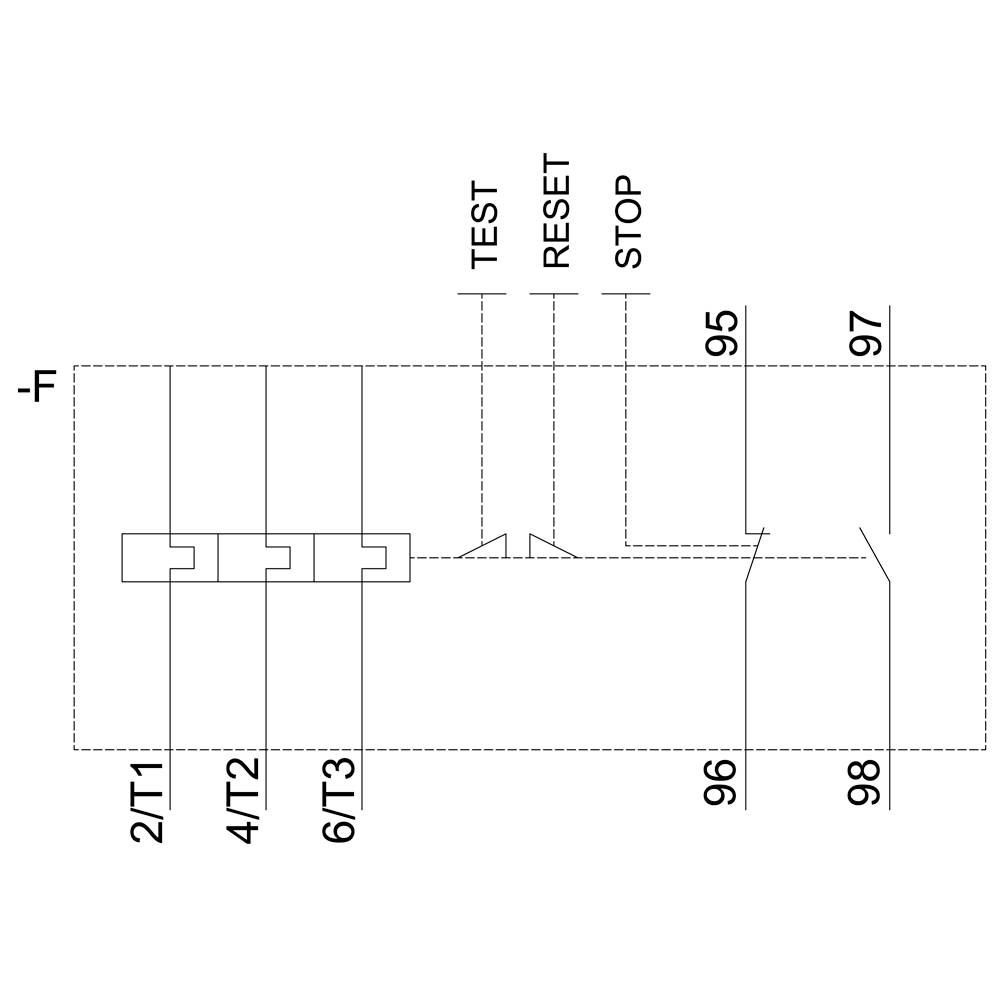

'Electrical panel layout' shows switches and connections for 'Test', 'Reset' and 'Stop' with marked terminals 2/T1, 4/T2, 6/T3.

A Siemens electrical device, model SIRIUS 3RU21, with stop and reset buttons, test switch, and connections for electrical wiring.

1/5

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Type

3RU2126-4AB0

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

THERM. OVERLOAD RELAY 20 - 25 A

Our service for you

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Packaging type: Piece

Product type: O/L relay

Type: 3RU2126-4AB0

Type: S0

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 11 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 11 - 16 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 85 mm

Depth: 85 mm

Dim: (W x H x D) 45 x 85 x 85 mm

Content: 1 pc(s)

Weight: 0.1804 kg

AWG max.: 8

AWG (min.): 16

Nominal current: 16 A

Cross section (flexible) (max.): 10 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (min.): 1 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1730726 O/L relay Siemens 3RU2126-4AB0 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730726 O/L relay Siemens 3RU2126-4AB0 Piece 1 pc(s)

Description

Overload relay 20...25 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Description

Overload relay 20...25 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
