ODROID C4 ODROID C4 4.0 GB 4 x 2.0 GHz
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Highlights & Details

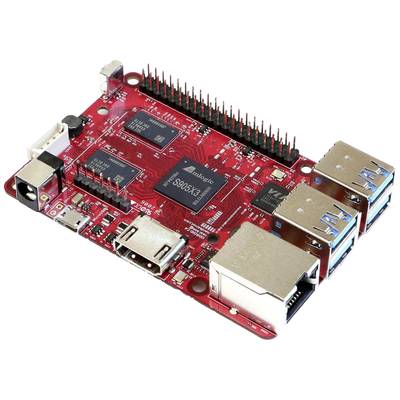

ODROID C4
- CPU: Amlogic S905X3 processor (2.0 GHz Cortex-A55 (ARM V8) quad-core CPU)
- GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
- RAM: 4 GB LPDDR4 RAM
- HDMI connection 4K (4096 × 2048 pixels), H.264 encoding with 60 FPS, H.264 with 30 FPS
- Expansion port :40+7 pin (GPIO, UART, I2C, I2S, ADC), Micro SD & eMMC slot, IR receiver
- Operating voltage 12 V / 2 A (via hollow socket 5.5 mm outside and 2.1 mm inside)
Technical specifications
- Product type
SBC
- Type
ODROID C4
- Processor
Quad-Core Cortex-A55
- Processor cores (No.)
4 x
- GPU
Mali G31 MP2
4.0 GB
- Clock speed
2.0 GHz
- Memory type
eMMC
- Memory capacity
4 GB
- Internal ports
micro SD
- External ports
HDMI™
- Output voltage
12 V
- Output current
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2528201 ODROID C4 ODROID C4 4.0 GB 4 x 2.0 GHz
Information
Information 2528201 ODROID C4 ODROID C4 4.0 GB 4 x 2.0 GHz
Description
ODROID-C4 is a new generation single-board computer that is more energy efficient and powerful than ODROID-C2, which was presented more than four years ago as the world's first affordable ARM 64bit computer.
The main CPU of the ODROID-C4 consists of a quad-core Cortex-A55 cluster with a new generation Mali G31 GPU. The A55 cores run at 2.0GHz without thermal throttling using the standard heat sink, which was designed to provide a rugged and quiet computer. The CPU multicore performance is about 40% faster and the DRAM performance of the system is 50% faster than the ODROID-C2.
GPU performance
The Mali-G31 runs with 650MHz and is ~50% faster than the Mali-450MP in the ODROID-C2. The Mali-G31 is the first generation of Bifrost-based mainstream GPU from Arm.
RAM performance
ODROID-C4 DDR4 RAM runs with 1320Mhz. The memory bandwidth is 1.6 times higher than the ODROID-C2.
EMMC memory performance
The sequential read and write speed is over 165 MB/s and 125 MB/s.
Micro-SD UHS power
With properly implemented dynamic UHS voltage scaling, sequential read and write speeds are greater than 70 MB/s or 50 MB/s.
Cryptography
The ARMv8 architecture supports hardware-accelerated encryption extensions for building a secure system. As expected, ODROID-C4 has enabled us to determine a very decent OpenSSL performance.
GPIO (40Pin header)
The GPIO interface of the ODROID-C4 is similar to that of the C2 and supports a 3.3V interface. This is useful for using different peripherals without complicated level shifter, as with the XU4's 1.8V GPIOs. Another major improvement is the faster SPI bus interface with a maximum frequency of about 100MHz. This is much faster than the ODROID-C2's 400kHz software "bit-banged" SPI.
Power consumption:
Thanks to the modern 12Nm manufactured S905X3-CPU the power consumption and the heat output are relatively low.
This text is machine translated.
