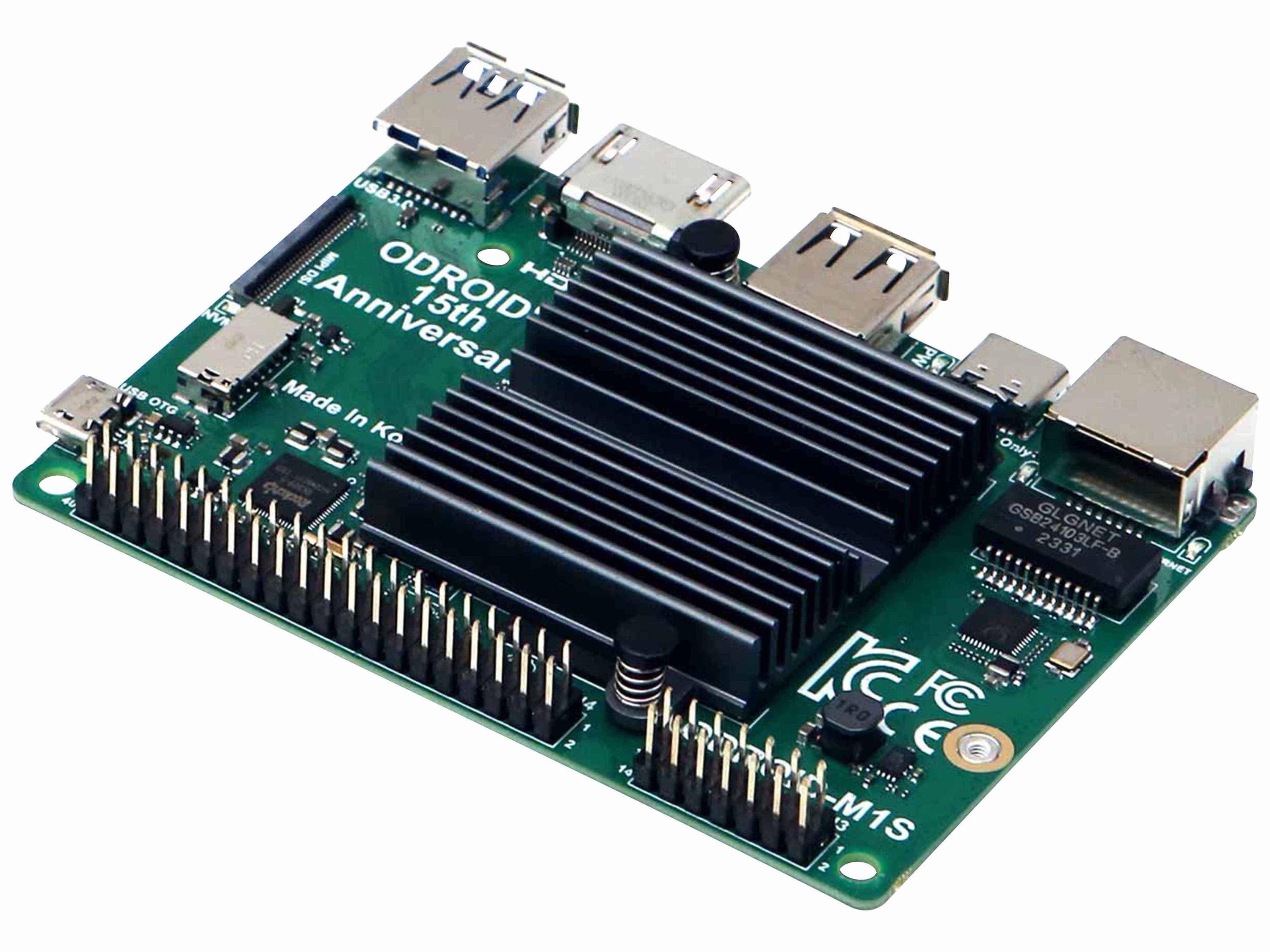

ODROID M1S Header ODROID M1S 8 GB 4 x 1.8 GHz
EAN:
Part number:
Item no:
Number
Total (€ 249.99 / piece)
€ 249.99
incl. VAT
14-day return policy included
Highlights & Details
Odrid M1S, 4x 1.8 GHz, 8 GB RAM, with header
- CPU:Rockchip RK3566 Quad Core Processor Cortex-A55 ARMv8-A @1.8 GHz
- GPU:Mali-G52 MP2-GPU @800 MHz
- NPU: 0.8 TOPS@INT8, INTEGRATED AI ACCELERATOR RKNN NPU
- RAM: 8 GB LPDDR4 with 32-bit bus width, data rate: 2112 MT/s, up to 1,055 MHz
- Memory: 64 GB embedded eMMC (soldered to the board)
Technical specifications
- Product type
SBC
- Type
ODROID M1S
- SoC
Rockchip RK3566
- Processor
Quad-Core Cortex-A55
- Processor cores (No.)
4 x
- GPU
Mali G52
8 GB
- Clock speed
1.8 GHz
- Memory type
eMMC
- Memory capacity
64 GB
- Internal ports
GPIO (40-pin)
- External ports
HDMI™
- Output voltage
5 V
- Output current
3 A
- Length
90 mm
- Width
65 mm
- Height
16 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3389502 ODROID M1S Header ODROID M1S 8 GB 4 x 1.8 GHz
Description
The OROID-M1S Single Board Computer has been developed for use in a variety of embedded system applications and, unlike the previous version, the M1, has become around 20% thinner, requires 20% less power consumption, offers 14 additional I/O pins and now has a 64 GB eMMC onboard memory.
This text is machine translated.
This text is machine translated.
Features
- Micro-SD slot (UHS-I SDR104, boot priority is always higher than eMMC)
- NVME M.2 SSD (PCIe 2.1 x 1 Lane)
- 10/100/1000 MBit/s Realtek RTL8211F RJ45 LAN
- HDMI 2.0 (up to 4K@60Hz with HDR, EDID) / MIPI DSI interface
- USB 2.0 host port/USB 3.0 host port/USB 2.0 micro-OTG port/UART
- GPIO connections: 40-pin GPIO and 14-pin GPIO
- Other: RTC backup battery connection
- POWER SUPPLY 5 V USB-C @3 A
- Power consumption 1.1 W / 3.52 W (idle / full load)
- Floor stands (LxBxH) 90 x 65 x 16 mm
