Name: Omnitronic DR-1000 MK2 Radio receiver
Brand: Omnitronic
SKU: 313518
Availability: InStock

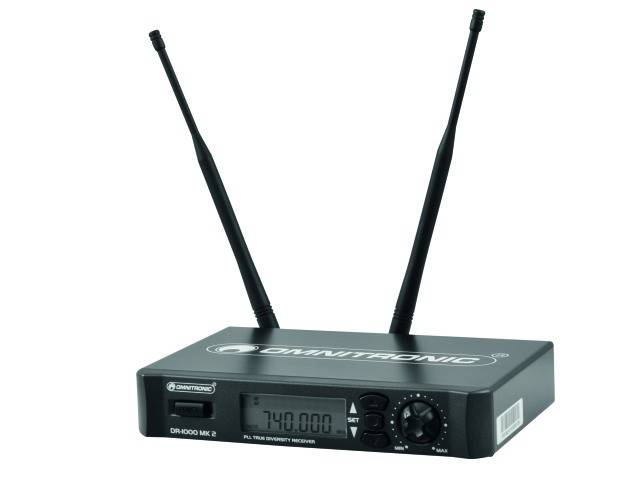

A wireless receiver with two aerials and a digital display showing the frequency 740,000.

Rear view of an Omnitronic audio device with various connections, including XLR, DC input, and antenna ports.

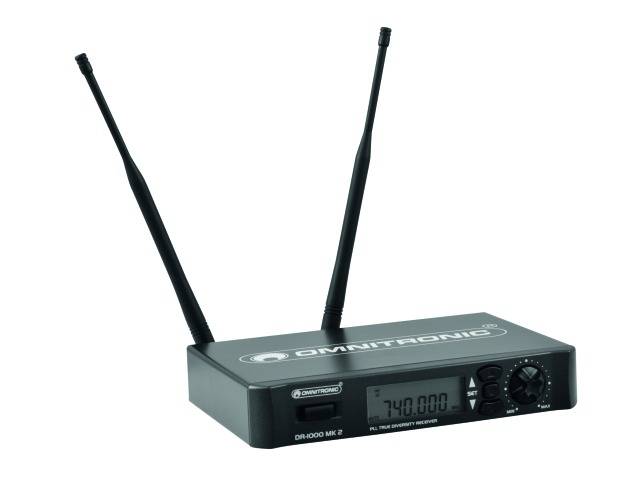

A black Omnitronic diversity receiver with a display and control elements on the front panel. Model: DR-1000 MK2.

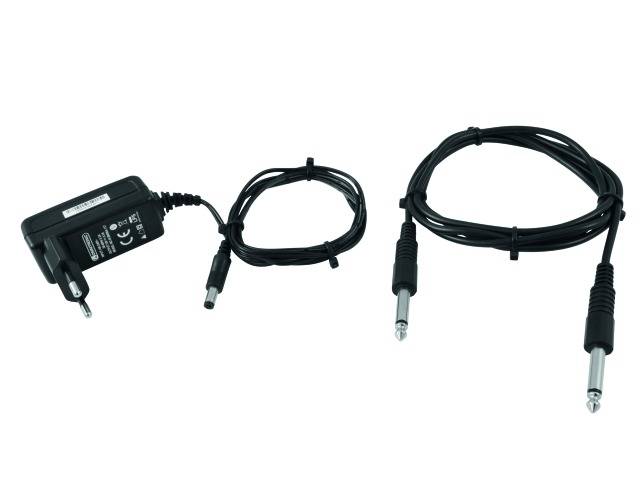

A black power supply unit and a longer cable with two jack plugs.

1/5

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 279.00 / piece)

€ 279.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic DR-1000 MK2 Receiver

Multi-frequency radio receiver, True Diversity

Technical specifications

System: True Diversity, single channel
Carrier frequency: UHF 740-764 MHz
Switching bandwidth 24 MHz
Number of frequencies 192
Step width 125 kHz
Frequency stability: ± 0.005%
Threshold:
105 dB
96> dB dynamic range
Modulation method: FM
Range 100 m (with visual contact)
Audio bandwidth 40-18,000 Hz
Audio output: 3-pin XLR, bal.
6.3 mm jack, unbalanced
Power supply: 100-240 V AC, 50-60 Hz ~ via supplied power supply
Total connected wattage 6 W
Dimensions (LxWxH) 213 x 150 x 40 mm
Weight: 600 g

Product type: Radio receiver

Factory colour: Black

Dim: (L x W x H) 213 x 150 x 40 mm

Weight: 1.5 kg

Length: 213 mm

Width: 150 mm

Height: 40 mm

No. of frequencies (adjustable): 192

Channels: 1

Height (min.): 40 mm

Depth: 213 mm

: 100 m

Interfaces: XLR out

No of. XLR outputs: 1 x

Transmission frequency: 740-764 MHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313518 Omnitronic DR-1000 MK2 Radio receiver

Information

Information 313518 Omnitronic DR-1000 MK2 Radio receiver

Description

Multi-frequency radio receiver, True Diversity · Multi-frequency radio receiver with UHF pilot tone technology (PLL) · True diversity technology for the best reception quality · Two removable antennas (BNC connector) · Operation in the interference-free UHF range (740-764 MHz) · 192 freely selectable frequencies can be switched in 125 kHz steps (40 frequencies per MHz) · Range with visual contact approx. 100 meters · System can be extended to up to 16 receivers with 16 microphones · LCD display for battery capacity of the transmitter, antenna A/B, RF reception strength, AF audio level and frequency · Automatic station search (auto-scan) · Output signal controller · Lock mode prevents unwanted changes by the user, even accidental shutdown · Mute when there is no or weak signal · XLR and 6.3 mm jack output · Power supply via supplied power supply unit · Heavy duty metal casing · Rack mounting frame available separately · Antenna splitter for easier operation with several receivers and antenna amplifiers available separately · Hand microphone, belt transmitter, lavalier and headband microphone available separately

This text is machine translated.
