Omnitronic LH-050 Phantom power adapter

A silver audio device with two inputs, labelled as 'Mic Output' and 'Mic Input', and a power supply diagram on the top surface.

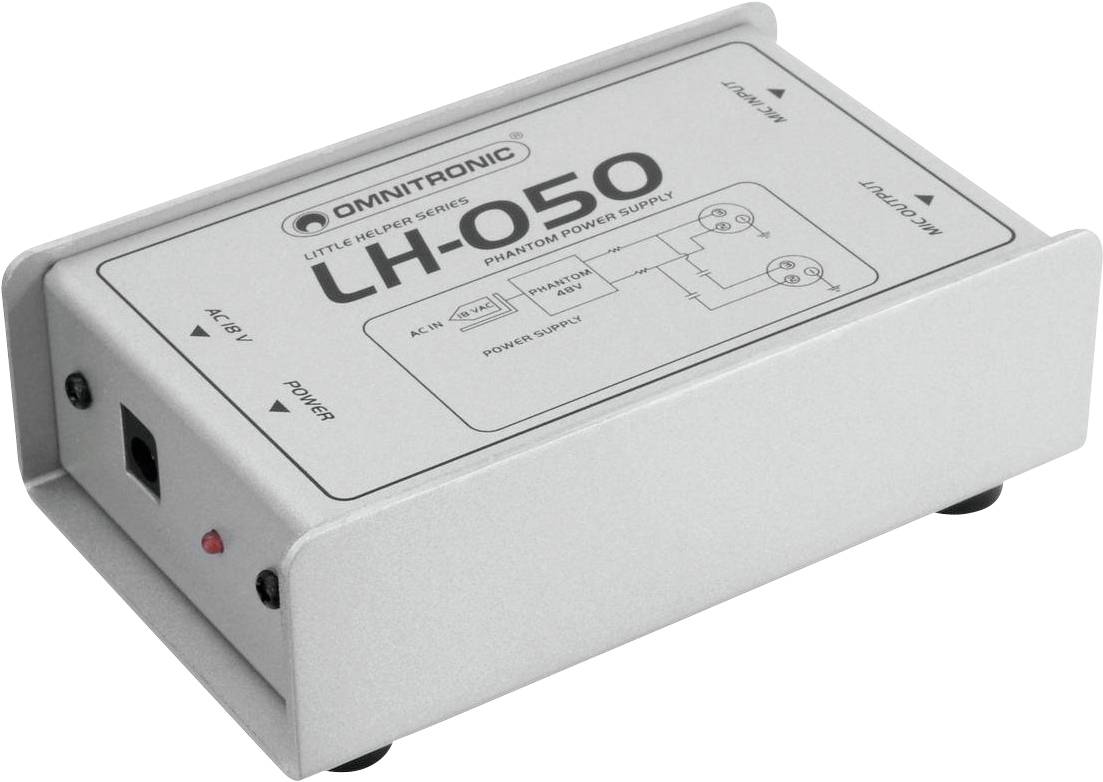

External phantom power supply with the label 'Omnitronic LH-050'. Rectangular metal enclosure with connections for XLR input and output.

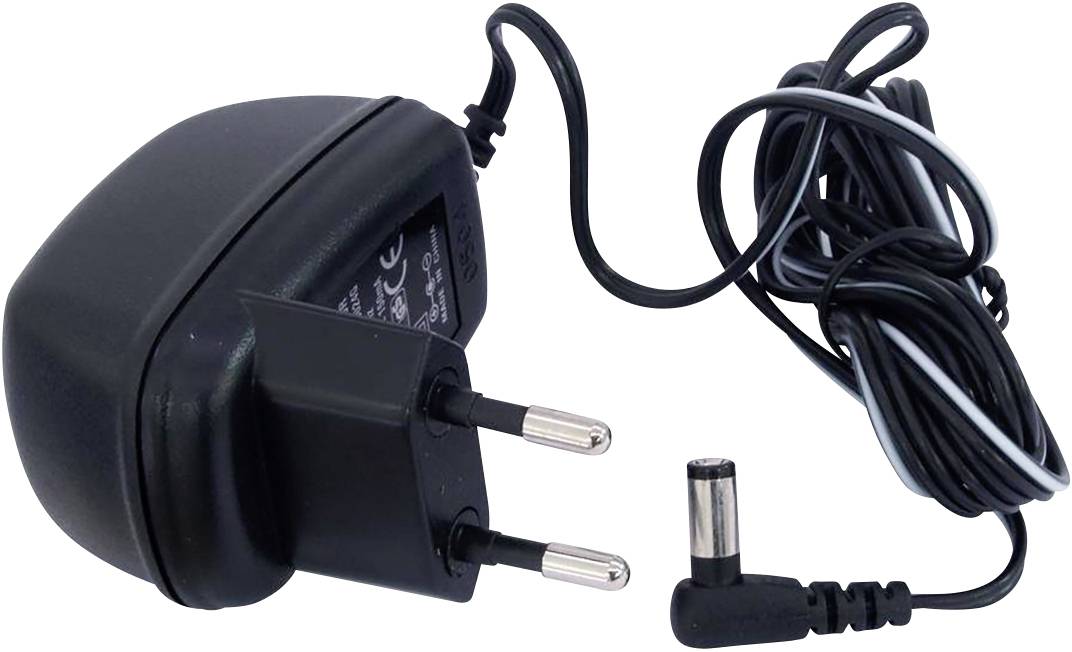

Black network adapter with two pins and a long cable with an angled plug, suitable for European power sockets.
A small, rectangular device by Omnitronic, model 'LH-050', which serves as a phantom power supply.
A black power supply with a European plug and a long, thin cable ending in a small connector.
Black and white small audio DI box with two XLR inputs and two outputs. Labelled 'LH-GOBO' with a diagram on the top surface.
1/6
EAN:
Part number:
Item no:
Dispatches on Wed, 10 Mar 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 65.99 / piece)
€ 65.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Omnitronic LH-050 Phantom Power Supply

  • Phantom power for microphones

Technical specifications

  • Power supply: 18 V AC
  • PHANTOM POWER 48 V DC, ±2 V DC
  • Input impedance 600 Ohm
  • Output impedance 600 Ohm
  • Frequency response: 10 Hz - 25 kHz
  • Noise voltage distance> 95 dB
  • Dimensions 74 x 45 x 130 mm
  • Weight: 500 g
Product type

Phantom power adapter

Dim

(W x H x D) 230 x 85 x 135 mm

Weight

1.0 kg

Width

230 mm

Height

85 mm

Depth

135 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313057 Omnitronic LH-050 Phantom power adapter

Description

Phantom power for microphones · +48 V phantom power for condenser or electret microphones · Ideal addition for mixing desks without phantom power · 1 microphone input, XLR (bal.) · 1 line output, XLR (bal.) · Power supply via supplied power supply · Robust gray metal housing
