Name: Omnitronic STR-500 Radio receiver
Brand: Omnitronic
SKU: 313484
Availability: BackOrder

A red and black pocket transmitter with antenna and display, model 'STR-500', by Omnitronic.

A portable radio transceiver with an antenna and carrying handle, primarily black with red accents, stands upright.

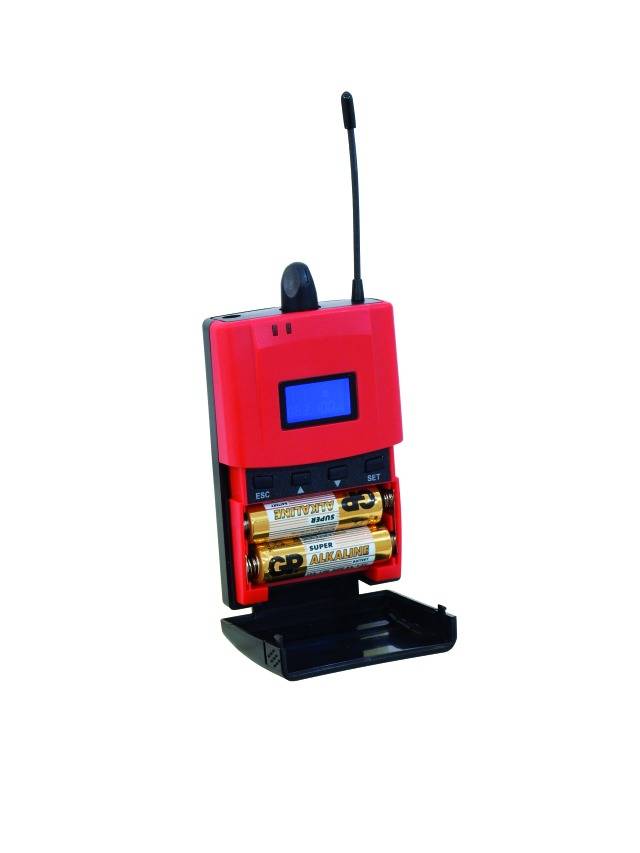

A red cordless device with a fold-out compartment for two AA batteries, equipped with an antenna and a small display.

1/3

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

50 Piece(s)

Show alternatives

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 154.99 / piece)

€ 154.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic STR-500 Taschenmpfanger IEM

Optional pocket receiver for IEM-500

Technical specifications

Pocket receiver
Modulation: FM
Built-in antenna:
System: Non-diversity, single-channel
863,000 - 865,000 MHz carrier frequency: UHF (16 channels)
Frequency stability: ±0.005%
Sound: 32,768 kHz
Clarity:> 55 dB
Dynamic range:> 94 dB
Audio output: 3.5-mm stereo jack socket
Audio output level: 100 mW
Power supply: 2 x 1.5 V AA batteries (AA)
Power consumption: approx. 130 mA, ±5 mA
Battery life: approx. 5 hours, volume sensitive
Dimensions (wxdxh): 165 x 23 x 64 mm
Weight: 100 g
In-ear headphones:
Wandlertyp: Dynamic
Frequency range 20-20000 Hz
Impedance 32 Ohm ± 15%
Sensitivity: 94 dB ±3 dB
Cable length: 1.2 m
Connection: 3.5 mm stereo jack plug
Weight: 14 g

Product type: Radio receiver

Factory colour: Black

Dim: (L x W x H) 165 x 190 x 40 mm

Weight: 14 g

Length: 165 mm

Width: 190 mm

Height: 40 mm

No. of frequencies (adjustable): 16

Channels: 1

Height (min.): 64 mm

Depth: 23 mm

: 50 m

Interfaces: 3.5 mm jack out

Transmission frequency: 863.000 - 865.000 MHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313484 Omnitronic STR-500 Radio receiver

Description

Optional pocket receiver for IEM-500 · Multifrequenz-In-Ear-Monitoring-receiver included in the set with mini earphones in practical transport case · As a replacement or extension is suitable for in-ear monitoring system IEM-500 · Trouble-free operation in the UHF range (863-865 MHz) with 16 switchable frequencies · Pilot tone technology (PLL) · Range of sight contact about 50 meters · Adjustable headphone output · Balance (left, right) can be set · LCD display for battery capacity, frequency and RF signal strength · Boost function for high frequencies can be activated · Lock function to protect against unauthorized adjustment of settings · Belt clip · Power supply via enclosed 2 x 1.5 V AA batteries (AA) · Free registration and in the EU

This text is machine translated.
