ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450N LED outdoor wall light (+ motion d
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 93.99 / piece)
€ 93.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details

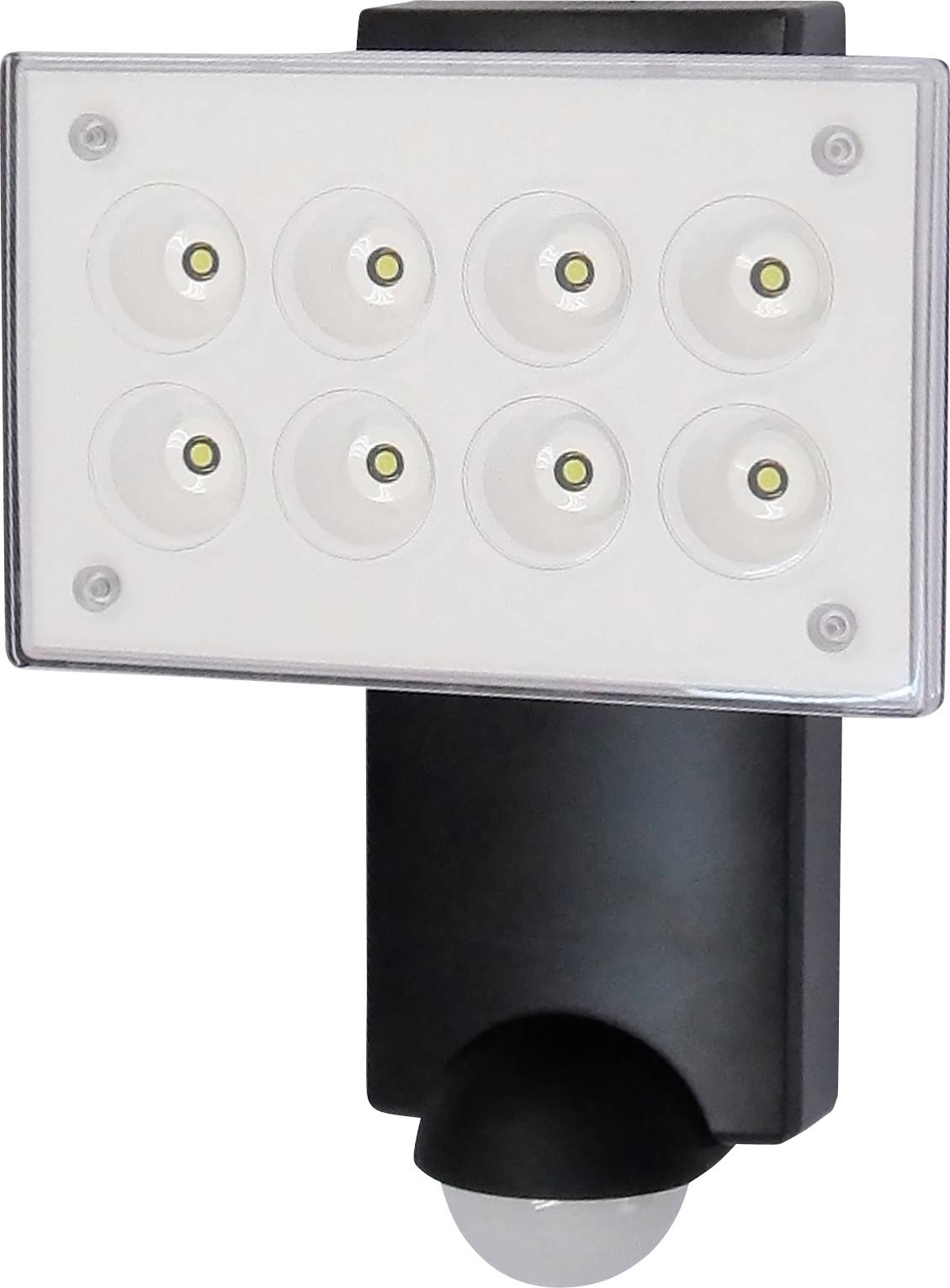

ProfiLED 8 Grafito LED outdoor spotlight with built-in motion detector
- Power= 8 W
- Total luminous flux= 800 lm
- Colour temperature= 5000 K
- Neutral white
Technical specifications
- Sensor technology: High frequency (HF) 5.8 GHz
- Twilight setting (light sensitivity): Adjustable
- Mounting type: Wall or ceiling mounting
- IK08 shock resistance
- Product type
LED outdoor wall light (+ motion detector)
- Operating voltage
230 V DC/AC
- No. of bulbs
8
- Bulb type
LED (monochrome)
- Rating per bulb
1 W
8 W
- Energy consumption
8 kWh/1000h
5000 K
- Colour
Neutral white
100 lm
- Total luminous flux
800 lm
- PIR detection angle (horizontal)
240°
- Coverage max. (width)
8 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
25 min
- Light features
Incl. dimmer
Suitable for wall mounting
- Radiation angle
120°
- Protection class
II
IP55
- Factory colour
Graphite
- Material
Polycarbonate (PC)
Aluminium
- Weight
600 g
- Dim
(W x H x D) 160 x 239.5 x 109 mm
n.rel.
- Type
Round, with integrated HF-motion sensor
- Type
Rectangular
- Width
160 mm
- Height
239.5 mm
- Depth
109 mm
Documents & Downloads
Datasheet
Datasheet 3828173 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450N LED outdoor wall light (+ motion d
User & Safety Instructions
User & Safety Instructions 3828173 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450N LED outdoor wall light (+ motion d
Description
Surface mounting on the wall with protection class IP 55 against penetration of dust and water. Allows the beam and detector to be aligned to the desired lighting and detection areas. Real luminous flux of 1,234 lm with inserted diffuser and a color temperature of 5000-6300K.
This text is machine translated.
This text is machine translated.
Features
- HF sensor (high frequency) for complete motion detection
- Adjustable light sensitivity
- Adjustable switch-on duration (switch-off delay)
- Integrated LED board
- UV and weather-resistant diffuser/casing
Scope of delivery
- 1x Orbis PROXILED 8 GRAFITO
- Fasteners (screws and plugs)
- operating and installation instructions
