Building Technology & Smart LivingLightingLight BulbsLED Fluorescent Tubes

OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 11 W = 22 W Cool white (Ø x L) 312 mm x 212 mm 1 pc(s)

A white, circular fluorescent ring of a lamp with a central connection point.

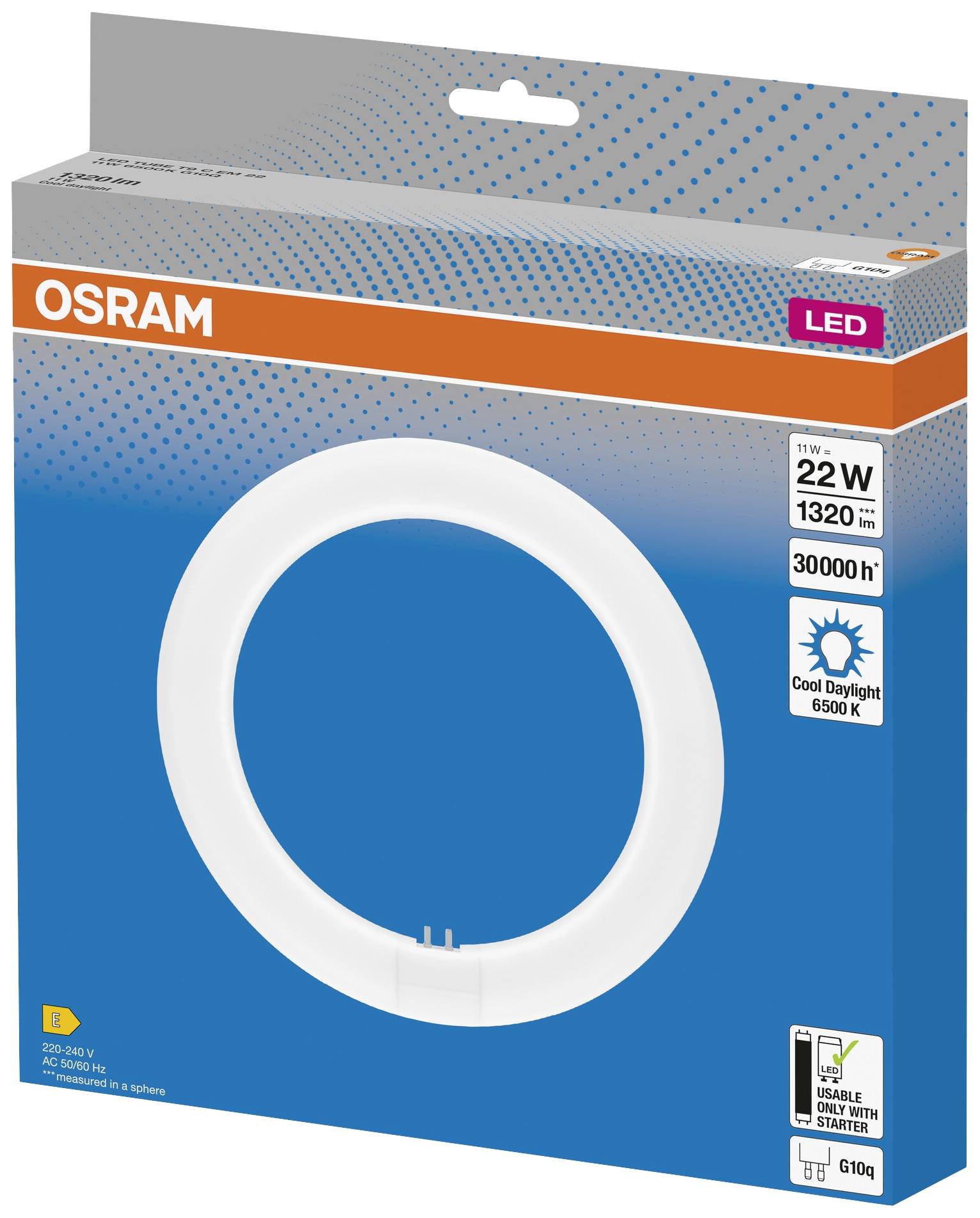

Osram LED Ring-Shaped Light in Packaging. 22W, 1320 Lumens, 6500K, 30,000 Hours Lifespan. Energy-Efficient, Blue Packaging.

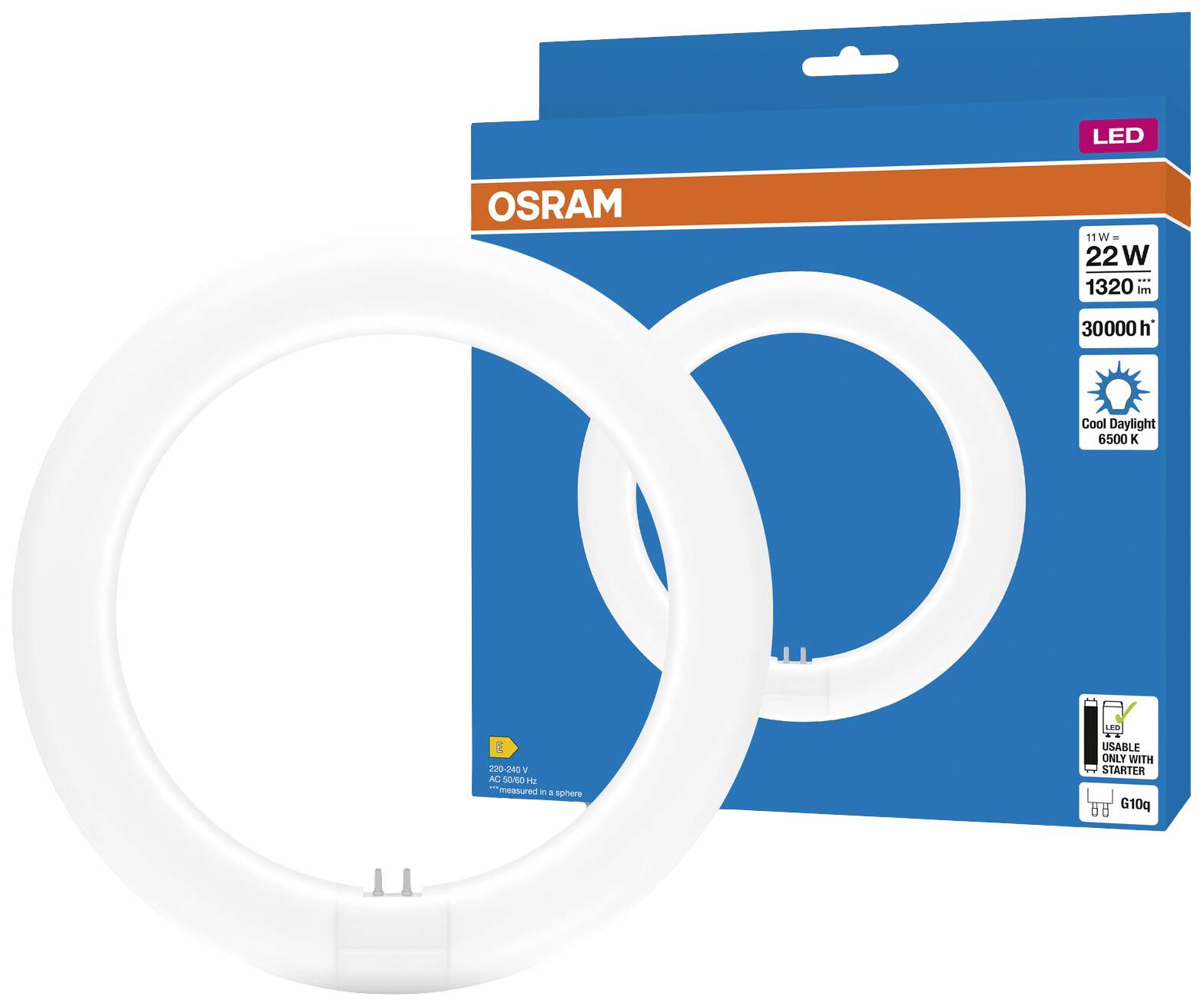

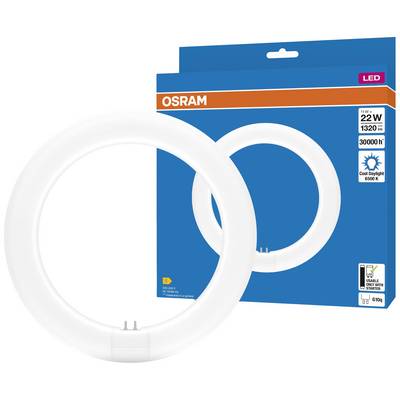

A round LED lamp from OSRAM with 22 watts. The packaging shows technical details: 1320 lumens, 30,000 hours lifespan, light colour 'Cool Daylight' 6500 K.

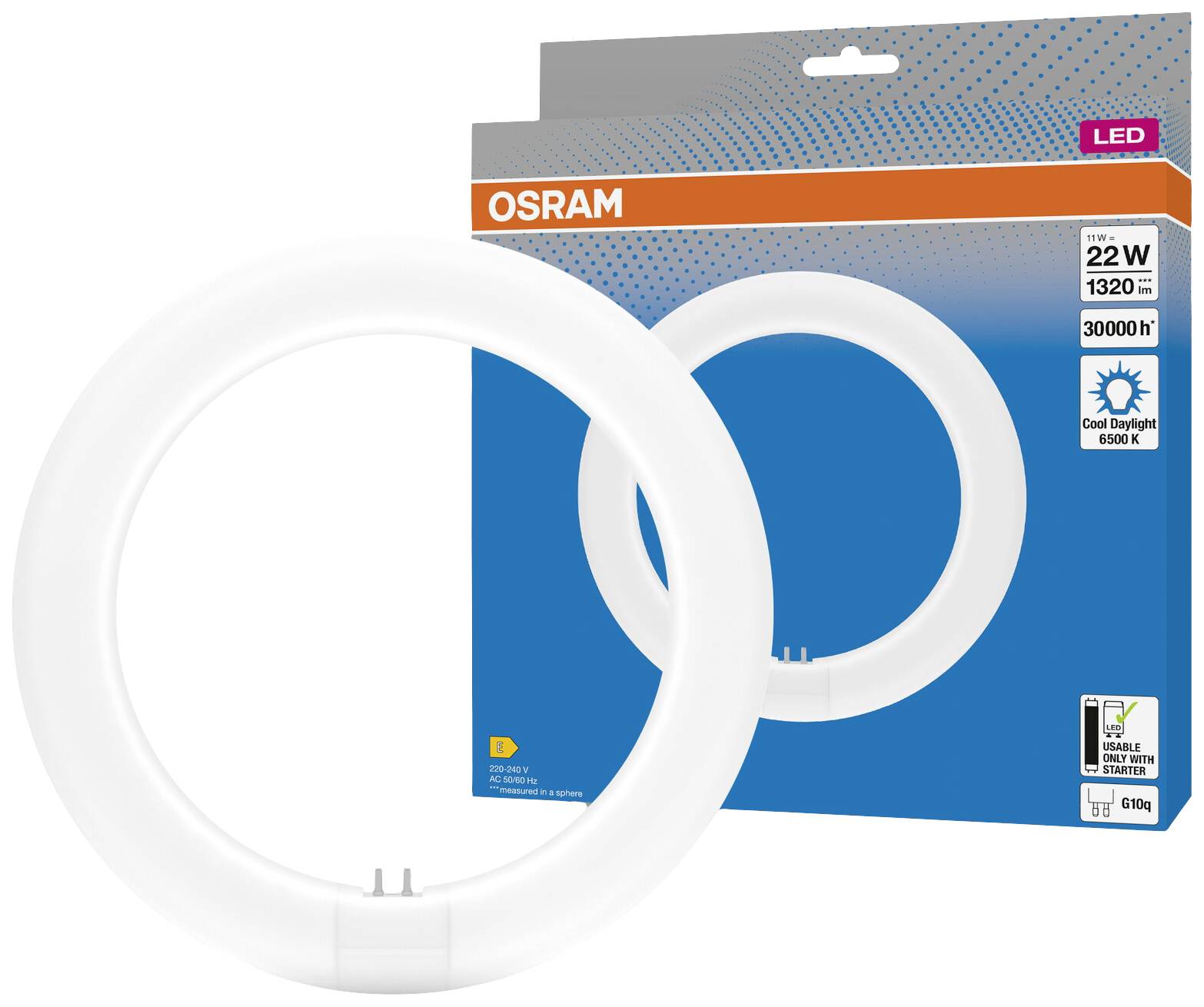

Osram LED lamp in ring form. Packaging indicates 'Cool Daylight' with 6500K, 22W, 1320 lumens and 30,000 hours of lifespan.
A man and a woman are playing cards at a table. A teapot and biscuits are on the table. Both appear relaxed and cheerful.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
89 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED tube G10q 11 W = 22 W Cool white EEC: E (A - G) CB

  • Power= 11 W
  • Total luminous flux= 1320 lm
  • Colour temperature= 6500 K
  • Cool white

Technical specifications

Product type

LED tube

Ring shape

G10q

11 W

Power range

10 W - 19.9 W

22 W

Colour

Cool white

≙ power rating of a light bulb (range)

10 W - 24.9 W

Operated via

CB

Total luminous flux

1320 lm

6500 K

Colour temperature range

6500 K

30.000 h

Circuits

200000

Power factor

0.9

EOL luminous flux retention

90 %

Operating voltage

230 V

Length

212 mm

(Ø)

312 mm

Content

1 pc(s)

E (A - G)

Energy consumption

11.00 kWh/1000h

Dim

(Ø x L) 312 mm x 212 mm

No. of bulbs

1

Durability rating

30000 h

Weight

158 g

Bulb shape

T9

Material

Plastic

IP20

Max. temperature

+45 °C

Min. temperature

-20 °C

Factory colour

White

Radiation angle

110°

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2866536 OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 11 W = 22 W Cool white (Ø x L) 312 mm x 212 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2866536 OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 11 W = 22 W Cool white (Ø x L) 312 mm x 212 mm 1 pc(s)

Description

LED tubes in ring form for electromagnetic ballasts (conventional/VVG)

This text is machine translated.

Features

  • LED tubes in ring form for electromagnetic ballasts (conventional/VVG)
  • LED alternative for classic T9 fluorescent lamps in conventional lamps
  • Homogeneous illumination
  • Lifecycle up to 50 30,000 hrs
  • Mercury-free and RoHS compliant
  • Simple, fast and safe replacement of lamps without rewiring
  • Energy savings of up to 50 (compared to T9 fluorescent lamp)
  • Also suitable for low temperature operation
  • General lighting in ambient temperatures of -20…+45 °C.
  • Corridors, stairways and car parks
  • Domestic applications
  • Decorative applications.
