OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 24 W = 40 W Neutral white (Ø x L) 400 mm x 400 mm 1 pc(s)

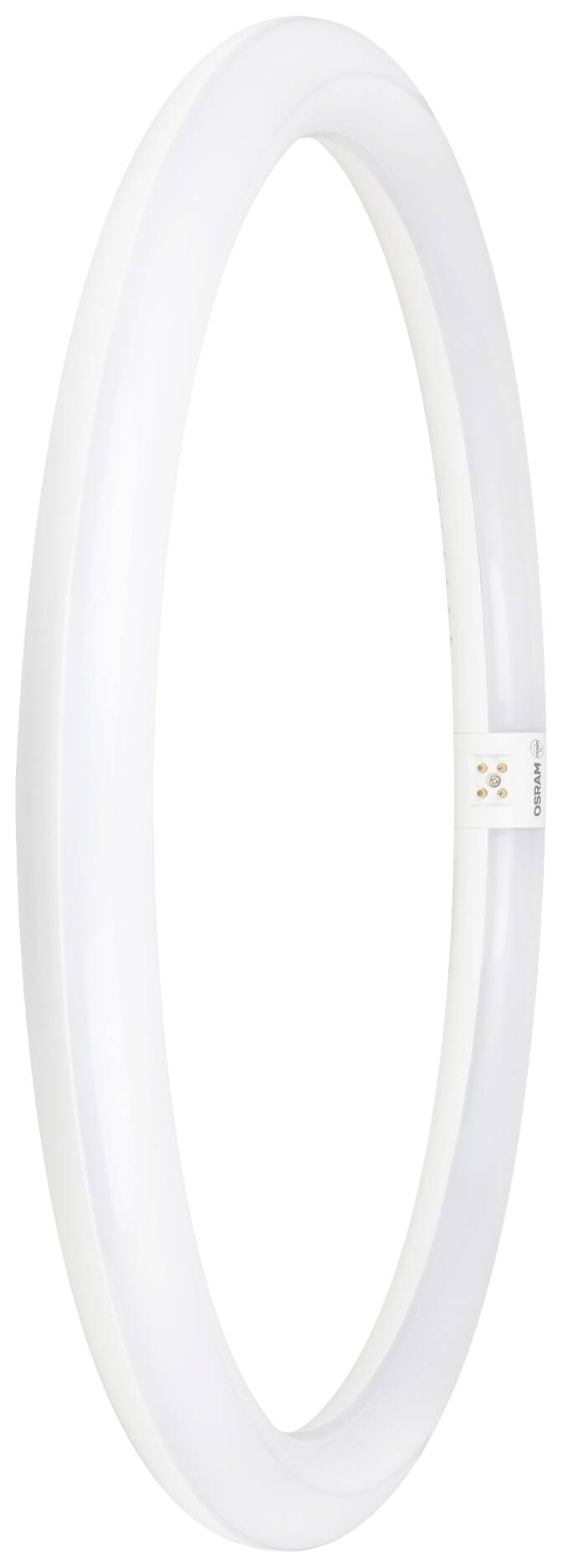

A white, oval fluorescent ring that glows smoothly and evenly.
'OSRAM LED Ring'. 40W, 2900 Lumens, 3000 Kelvin. In packaging. Energy-saving lighting solution for interior spaces.
'Two round, white LED light tubes by Osram on a blue background. 40 W, 2200 lumens, 3000 K, energy-efficient lighting.'

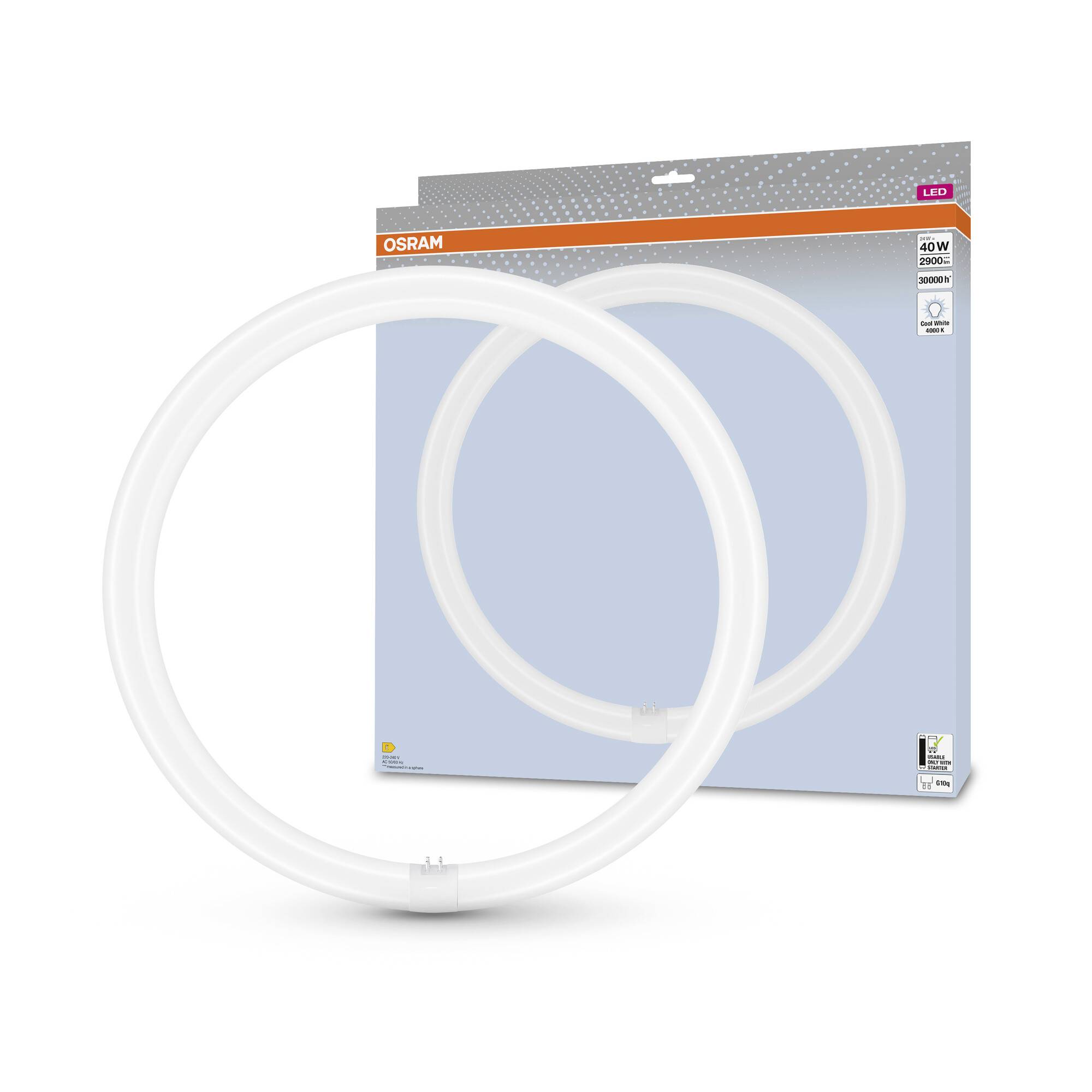

A round LED fluorescent tube from OSRAM with 40W power, displayed on the packaging. The packaging also shows technical details.
A woman and a man are sitting at a table playing cards. A teapot with cups is placed in front of them.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
53 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 24.99 / piece)
€ 24.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED tube G10q 24 W = 40 W Neutral white EEC: E (A - G) CB

  • Power= 24 W
  • Total luminous flux= 2900 lm
  • Colour temperature= 4000 K
  • Neutral white

Technical specifications

Product type

LED tube

Ring shape

G10q

24 W

Power range

20 W - 39.9 W

40 W

Colour

Neutral white

≙ power rating of a light bulb (range)

40 W - 59.9 W

Operated via

CB

Total luminous flux

2900 lm

4000 K

Colour temperature range

4000 - 4000 K

Circuits

200000

Power factor

0.9

EOL luminous flux retention

90 %

Operating voltage

230 V

Length

400 mm

(Ø)

400 mm

Content

1 pc(s)

E (A - G)

Energy consumption

24.00 kWh/1000h

Dim

(Ø x L) 400 mm x 400 mm

No. of bulbs

1

Durability rating

30000 h

Weight

290 g

Bulb shape

T9

Colour temperature (max.)

4000 K

Colour temperature (min.)

4000 K

Material

Plastic

IP20

Max. temperature

45 °C

Min. temperature

-20 °C

Factory colour

White

Radiation angle

110°

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2866540 OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 24 W = 40 W Neutral white (Ø x L) 400 mm x 400 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2866540 OSRAM HOMELIGHTING LED tube EEC: E (A - G) G10q Ring shape CB 24 W = 40 W Neutral white (Ø x L) 400 mm x 400 mm 1 pc(s)

Description

LED tubes in ring form for electromagnetic ballasts (conventional/VVG)

This text is machine translated.

Features

  • LED tubes in ring form for electromagnetic ballasts (conventional/VVG)
  • LED alternative for classic T9 fluorescent lamps in conventional lamps
  • Homogeneous illumination
  • Lifecycle up to 50 30,000 hrs
  • Mercury-free and RoHS compliant
  • Simple, fast and safe replacement of lamps without rewiring
  • Energy savings of up to 50 (compared to T9 fluorescent lamp)
  • Also suitable for low temperature operation
  • General lighting in ambient temperatures of -20…+45 °C.
  • Corridors, stairways and car parks
  • Domestic applications
  • Decorative applications.
