Buy Panasonic ACT112 Automotive relay 12 V DC 20 A 1 change-over

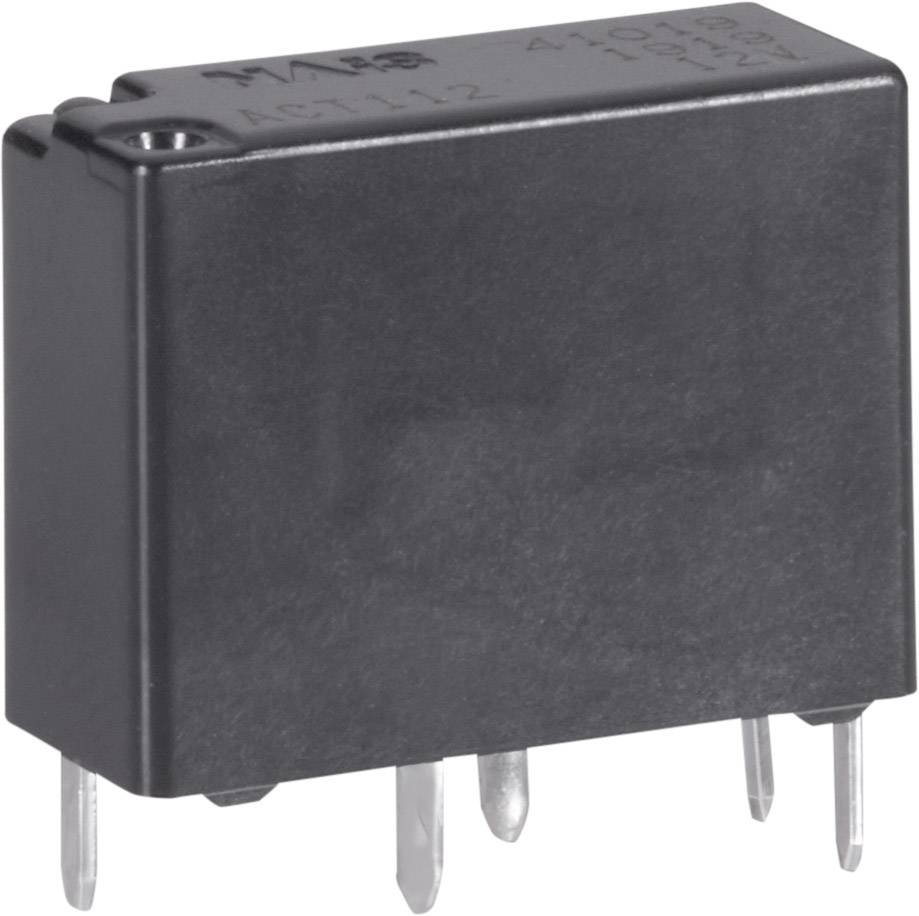

A black electronic relay with four metal pins.

Image similar

Panasonic ACT112 Automotive relay 12 V DC 20 A 1 change-over-1

Technical drawing with component dimensions in millimetres; showing front, side, and top views of an electronic component.

Relay Circuit Diagram: Shows contacts 'COM', 'NO', 'NC', symbolising open and closed electrical circuits with an LED indicator.

1/4

Image similar

Product type

Automotive relay

Coil nominal voltage

12 V DC

Contact type

1 change-over

Connection

Switching voltage (max.)

14 V DC

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Technical specifications

Contact voltage drop (at 2 X 6 A) max. 0.25 V

Product type: Automotive relay

Type: ACT112

Features: w/o elbow mount

Coil nominal voltage: 12 V DC

Contact type: 1 change-over

Contact material: Silver alloy

Connection: Print

Switching voltage (max.): 14 V DC

Switching current (max.): 20 A

NO switching current (max.): 20 A

Resistance (coil): 180 Ω

Durability: 1 x 107

Min. temperature: -40 °C

Max. temperature: +85 °C

Width: 7.2 mm

Height: 13.5 mm

Length: 17.4 mm

Dim: (L x W x H) 17.4 x 7.2 x 13.5 mm

Type: 1 changeover contact, 1 coil

Power consumption: 800 mW

Nominal voltage (details): 12 V DC

Switching capacity: (NO) 20 A/14 V / DC, (NC) 10 A/14 V DC

Type: ACT112

Ambient temperature: -40 - +85 °C

Documents & Downloads

Datasheet

Datasheet 504988 Panasonic ACT112 Automotive relay 12 V DC 20 A 1 change-over

User & Safety Instructions

User & Safety Instructions 504988 Panasonic ACT112 Automotive relay 12 V DC 20 A 1 change-over

Description

Narrow miniature automotive relay in sealed enclosure. Available as single or double coil relay. CT2-relay with an integrated H-bridge for motor reversing circuit. Application: comfort electronics, power windows, central locking, seat adjustment, sunroofs, fans, outer mirrors adjustment, lighting.
