Buy Panasonic Reflective light barrier PM-K65-P PM-K65-P K Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

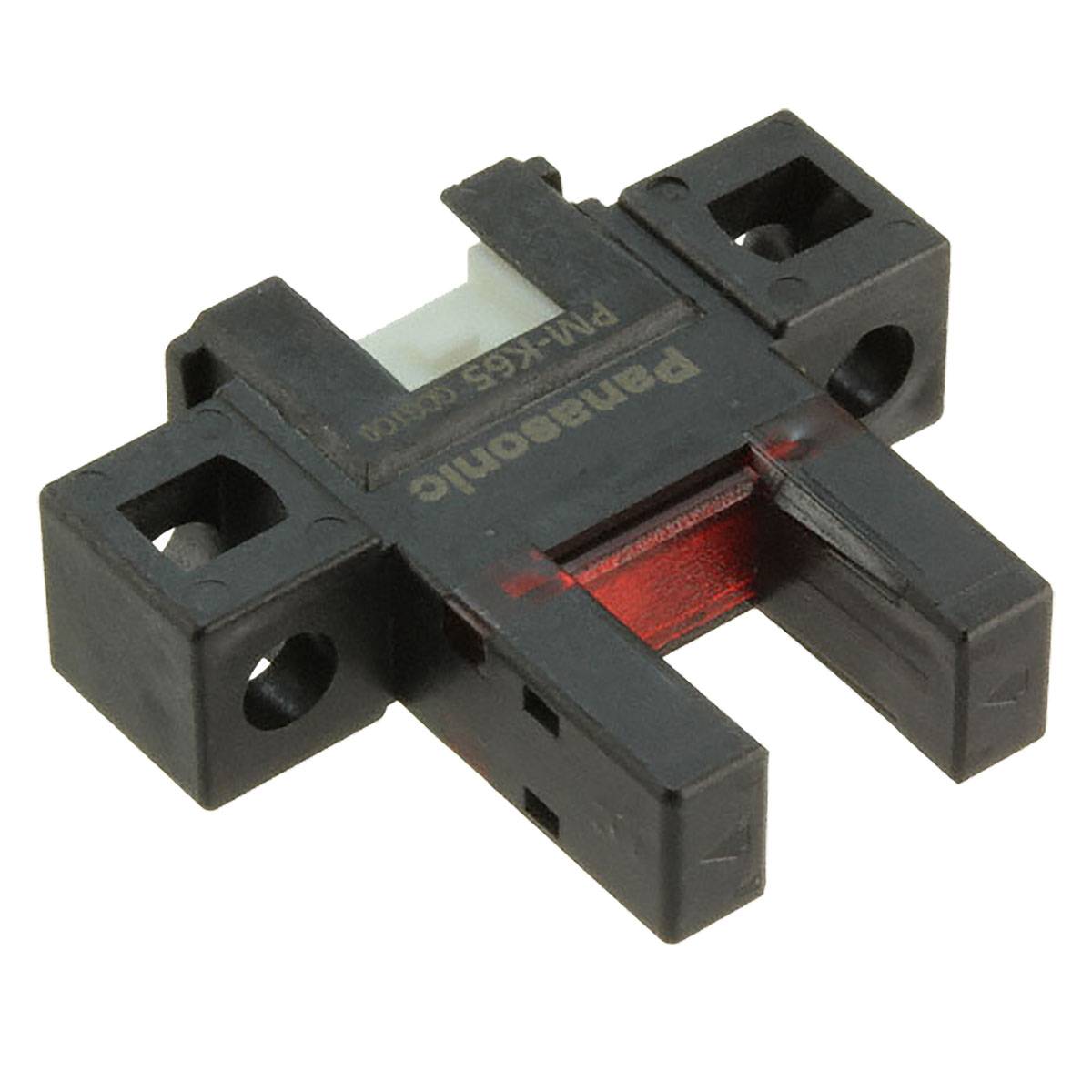

'Panasonic PM-K65' sensor with black plastic housing, rectangular shape, two square openings, red and white markings.

Image similar

Technical drawing of a rectangular connector with dimensions: 26mm x 22.4mm x 7mm. Dimensions are specified in mm and inches.

1/2

Image similar

Product type

Reflective light barrier

Model

Functions

Light-ON

Dark-ON

Max. operating voltage

24 V DC

Connector

Plug (4-pin)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 20.16 / piece)

€ 24.36

-17 %

€ 20.16

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Fork light barrier, Series PM (65)

Fork width: 6mm
Short response time of 20 μs bright-on
Response time 80 μs dark-on
Foreign Light independent
Reverse polarity protection

Technical specifications

Product type: Reflective light barrier

Type: PM-K65-P

Model: K

Functions: Light-ON
Dark-ON

Min. operating voltage: 5 V DC

Max. operating voltage: 24 V DC

Operating voltage: 5 - 24 V DC

Outputs: PNP

Connector: Plug (4-pin)

Enclosure material: PBT

Transmitter type: LED IR

Wavelength: 855 nm

: IP40

Min. temperature: -25 °C

Max. temperature: +55 °C

Length: 26 mm

Width: 7 mm

Height: 22.4 mm

Dim: (L x W x H) 26 x 7 x 22.4 mm

Documents & Downloads

Datasheet

Datasheet 1547426 Panasonic Reflective light barrier PM-K65-P PM-K65-P K Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Description

Fork light beam in very small size. Two transistor outputs bright-on and dark-on. LED display of switching status Jet markings for easy adjustment. Insensitive to vibrations and shocks.
Applications: contactless switch, object detection (e.g. coins), position detection, scanning (e.g. register marks), Coding disc query, speed and speed detection, band crack testing.
