TRU COMPONENTS Reflective light barrier SK-202NA-W TC-10329320 F Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€
Highlights & Details
Micro Photoelectric Sensor F-Form 5-24V/DC 5mm IR-LED 940nm NPN 2m
- Shape: F
- Slot width: 5 mm
- Response frequency: 3 KHz
- Surge protection
- Reverse polarity protection
- 2 m cable
Technical specifications
- Type
SK-202NA-W
- Model
F
- Functions
Light-ON
Dark-ON
- Min. operating voltage
5 V DC
- Max. operating voltage
24 V DC
- Operating voltage
5 - 24 V DC
- Outputs
NPN
- Connector
Cable, open end
- Cable length
2 m
- Enclosure material
ABS plastic
- Transmitter type
LED IR
IP50
- Min. temperature
-25 °C
- Max. temperature
+55 °C

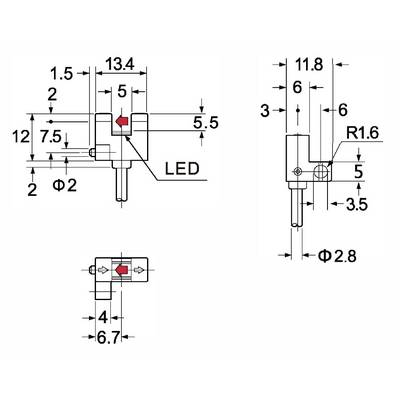

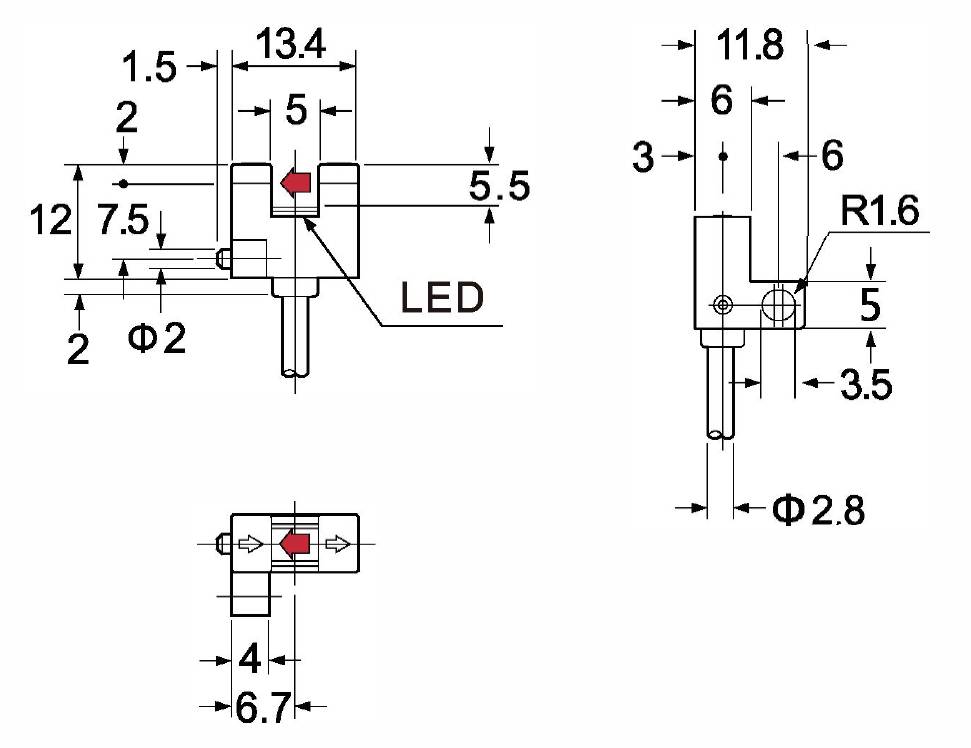

- Length
13.4 mm
- Width
11.8 mm
- Height
12 mm
- Dim
(L x W x H) 13.4 x 11.8 x 12 mm
- Plastic free packaging
Plastic-free packaging
- Product type
Reflective light barrier
Documents & Downloads
Datasheet
Datasheet 2582330 TRU COMPONENTS Reflective light barrier SK-202NA-W TC-10329320 F Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2582330 TRU COMPONENTS Reflective light barrier SK-202NA-W TC-10329320 F Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)
Description
Hints
For more information on this TC-10329320, please refer to its datasheet under 'downloadable documents'
