Buy Panasonic Reflective light barrier PM-L25 PM-L25 L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

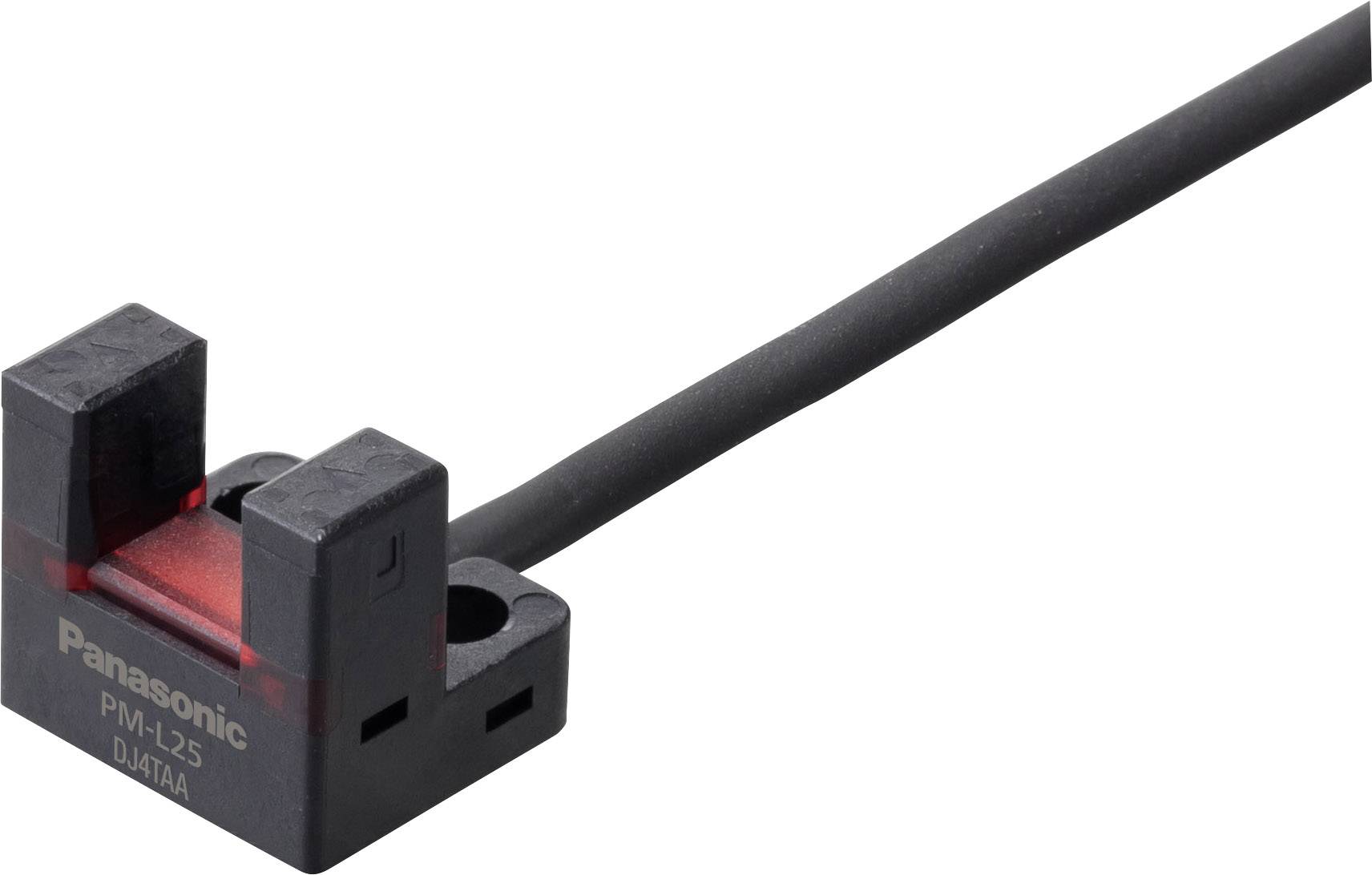

A black, rectangular sensor from Panasonic with a red light element. Model number 'PM-L25' is visible. Sensor is connected.

Image similar

Technical drawing of a component with dimensions: Width 13.4 mm, Height 12 mm. Additional markings: 0.528 and 0.472 at various locations.

1/2

Image similar

Product type

Reflective light barrier

Model

Functions

Light-ON

Dark-ON

Max. operating voltage

24 V DC

Connector

Cable, open end

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 22.68 / piece)

€ 22.68

plus VAT.

Report legal concerns

Highlights & Details

Fork light barrier, Series PM (25)

Fork width: 6mm
Short response time of 20 μs bright-on
Response time 80 μs dark-on
Foreign Light independent
Reverse polarity protection

Technical specifications

Product type: Reflective light barrier

Type: PM-L25

Model: L

Functions: Light-ON
Dark-ON

Min. operating voltage: 5 V DC

Max. operating voltage: 24 V DC

Operating voltage: 5 - 24 V DC

Outputs: NPN

Connector: Cable, open end

Cable length: 1.00 m

Enclosure material: PBT

Transmitter type: LED IR

Wavelength: 855 nm

: IP64

Min. temperature: -25 °C

Max. temperature: +55 °C

Length: 13.4 mm

Width: 12 mm

Height: 12 mm

Dim: (L x W x H) 13.4 x 12 x 12 mm

Documents & Downloads

Datasheet

Datasheet 1547471 Panasonic Reflective light barrier PM-L25 PM-L25 L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Certificate

Certificate 1547471 Panasonic Reflective light barrier PM-L25 PM-L25 L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Description

Fork light beam in very small size. Two transistor outputs bright-on and dark-on. LED display of switching status Jet markings for easy adjustment. Insensitive to vibrations and shocks.
Applications: contactless switch, object detection (e.g. coins), position detection, scanning (e.g. register marks), Coding disc query, speed and speed detection, band crack testing.
