Name: Panasonic Reflective light barrier PM-R25 PM-R25 R Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)
Brand: Panasonic
SKU: 1547452
Availability: OutOfStock

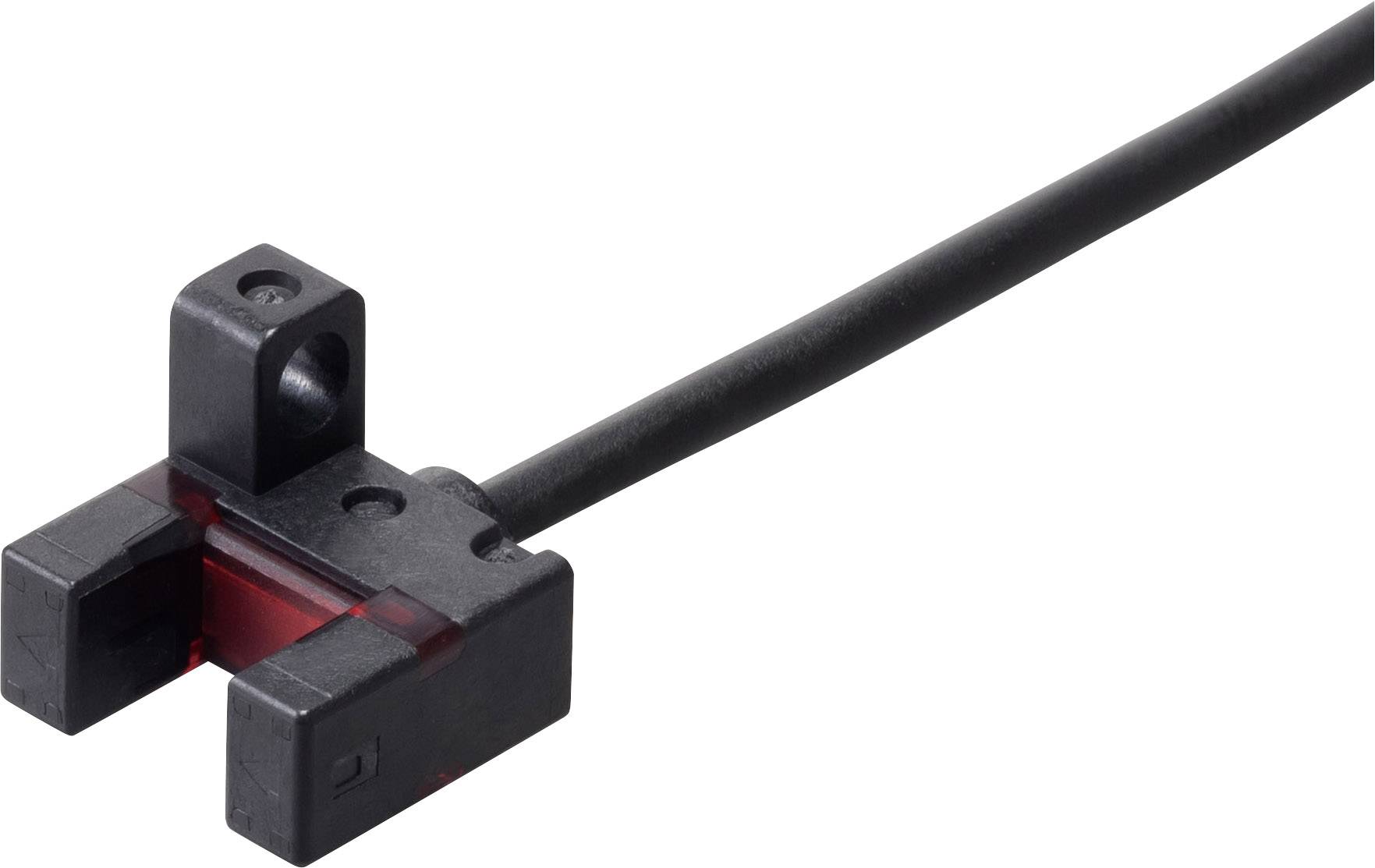

A black optical sensor with cable, used for detecting objects in electronic devices.

Technical drawing of a sensor with dimensions: length 13.4 mm, width 11.7 mm, height 12.5 mm. Dimensions are marked in blue.

1/2

Image similar

Product type

Reflective light barrier

Model

Functions

Light-ON

Dark-ON

Max. operating voltage

24 V DC

Connector

Cable, open end

Datasheet (PDF)

EAN:

Part number:

Item no:

Currently not available

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fork light barrier, Series PM (25)

Fork width: 6mm
Short response time of 20 μs bright-on
Response time 80 μs dark-on
Foreign Light independent
Reverse polarity protection

Technical specifications

Product type: Reflective light barrier

Type: PM-R25

Model: R

Functions: Light-ON
Dark-ON

Min. operating voltage: 5 V DC

Max. operating voltage: 24 V DC

Operating voltage: 5 - 24 V DC

Outputs: NPN

Connector: Cable, open end

Cable length: 1.00 m

Enclosure material: PBT

Transmitter type: LED IR

Wavelength: 855 nm

: IP64

Min. temperature: -25 °C

Max. temperature: +55 °C

Length: 13.4 mm

Width: 11.7 mm

Height: 12.5 mm

Dim: (L x W x H) 13.4 x 11.7 x 12.5 mm

Variants(All information include VAT, plus shipping costs)

Model

Panasonic Reflective light barrier PM-R25 PM-R25 R Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547452

Currently not available

Conrad Electronic

This article

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Panasonic Reflective light barrier PM-F25-P PM-F25-P F Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547443

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-K25-P PM-K25-P K Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547435

Fast track dispatch on Thu 29 Oct

67 Piece(s)Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-L25 PM-L25 L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547471

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-L25-C3 PM-L25-C3 L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547437

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Panasonic Reflective light barrier PM-L25-P PM-L25-P L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547478

Fast track dispatch on Thu 29 Oct

120 Piece(s)Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-L25-R PM-L25-R L Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547438

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

Panasonic Reflective light barrier PM-R25-P PM-R25-P R Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547457

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-U25 PM-U25 U Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547473

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Panasonic Reflective light barrier PM-U25-P PM-U25-P U Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Item no:1547450

Available soon

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Documents & Downloads

Datasheet

Datasheet 1547452 Panasonic Reflective light barrier PM-R25 PM-R25 R Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Description

Fork light beam in very small size. Two transistor outputs bright-on and dark-on. LED display of switching status Jet markings for easy adjustment. Insensitive to vibrations and shocks.
Applications: contactless switch, object detection (e.g. coins), position detection, scanning (e.g. register marks), Coding disc query, speed and speed detection, band crack testing.
