Name: Panasonic Semiconductor Relay
Brand: Panasonic
SKU: 504900
Availability: InStock

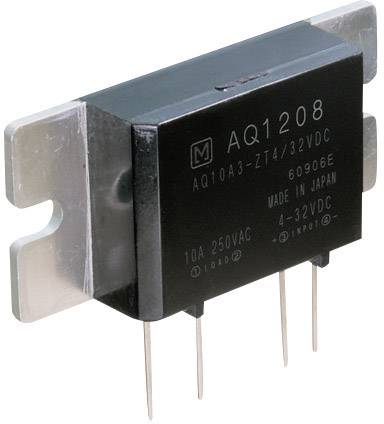

A black relay with the inscription 'AQ1208' and technical specifications, including '10A 250VAC' and 'Made in Japan'. Rectangular shape with metal tags.

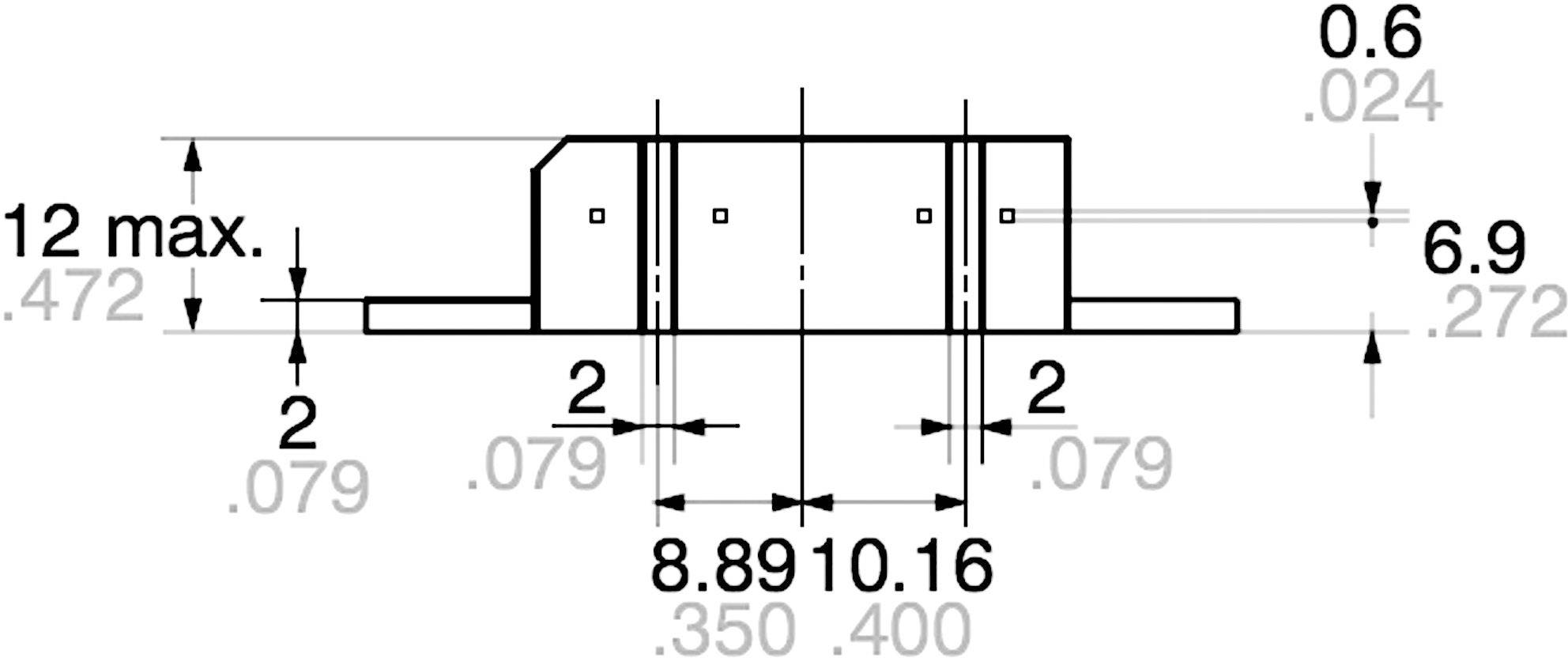

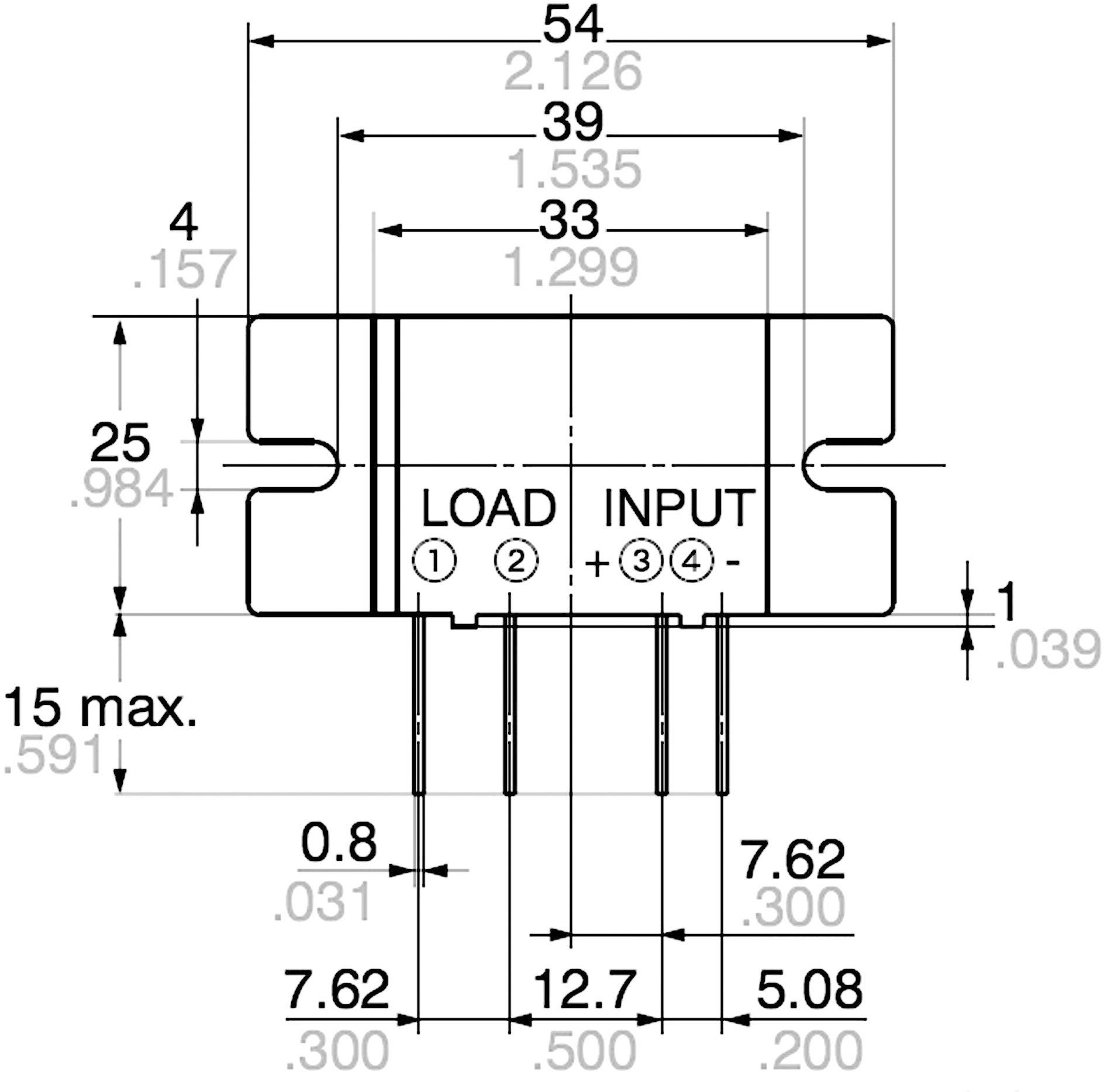

Diagram of an electronic component with dimensions in millimetres, showing connections for 'Load' and 'Input', with specific spacings.

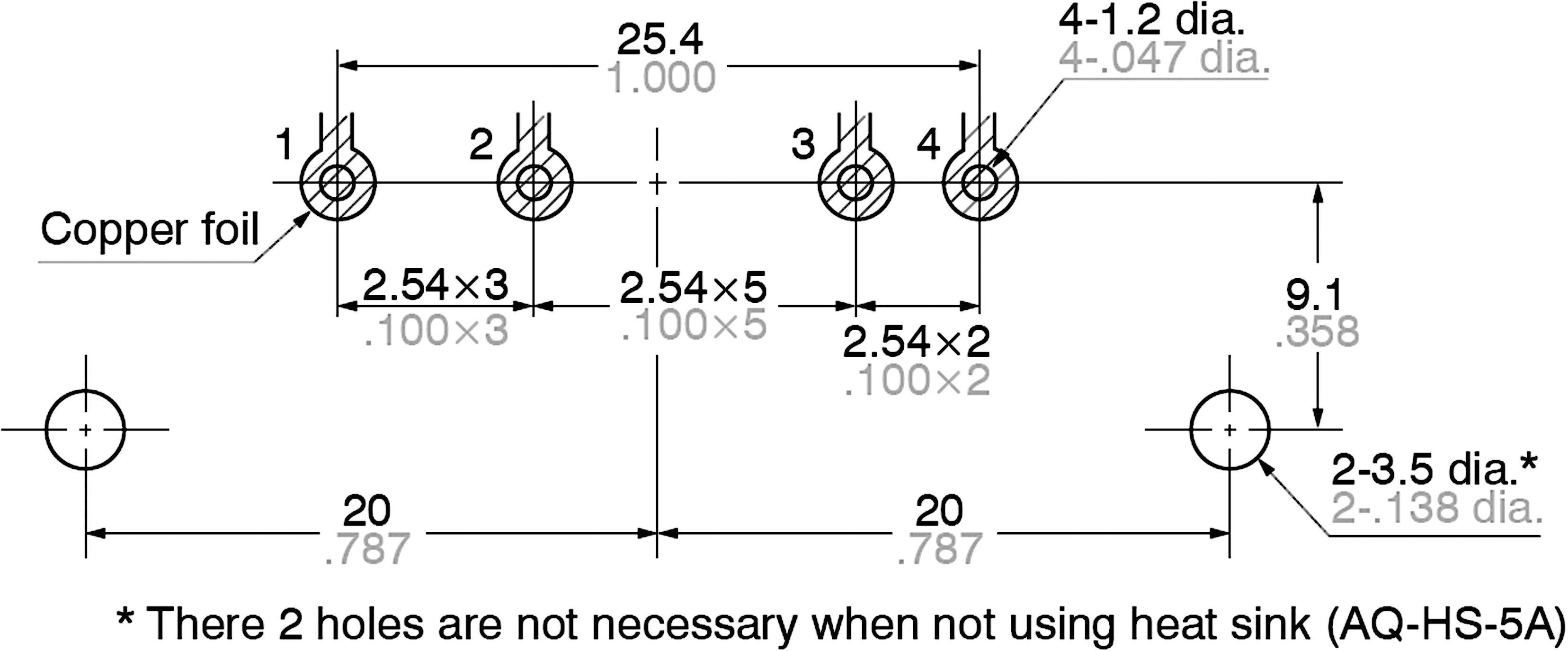

Technical Drawing: Drill Holes on Copper Foil, Dimensions Specified in Millimetres. Note on Unnecessary Holes without Heat Sink.

1/4

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

250 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Insulation voltage: 3 kV

Packaging type: Piece

Product type: SSR

Type: AQ10A2ZT432

Switching type: Zero crossing

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 250 V AC

Switching voltage (max.): 250 V AC

Current load (max.): 5 A

Output voltage (max.): 250 V AC

Max. output current: 5 A

Contact type: 1 maker

Min. temperature: -30 °C

Max. temperature: +80 °C

Permanent current (max.): 5 A

Content: 1 pc(s)

Type: Zero-cross

Nominal voltage (details): 4 - 32 V DC

Switching voltage: 250 V AC

Type: AQ10A2ZT432

Insulation voltage: 4 kV

Current load: (without/with heatsink) 5 A/10 A

Temperature range: -30 - +80 °C

Documents & Downloads

Datasheet

Datasheet 504900 Panasonic Semiconductor Relay

User & Safety Instructions

User & Safety Instructions 504900 Panasonic Semiconductor Relay

Description

One-channel semi-conductor relay in slim SIL-casing. Application: Control and industry technology, fan control, light technology.

Hints

Approvals: UL, CSA, VDE, TÜV.

Description

One-channel semi-conductor relay in slim SIL-casing. Application: Control and industry technology, fan control, light technology.

Hints

Approvals: UL, CSA, VDE, TÜV.
