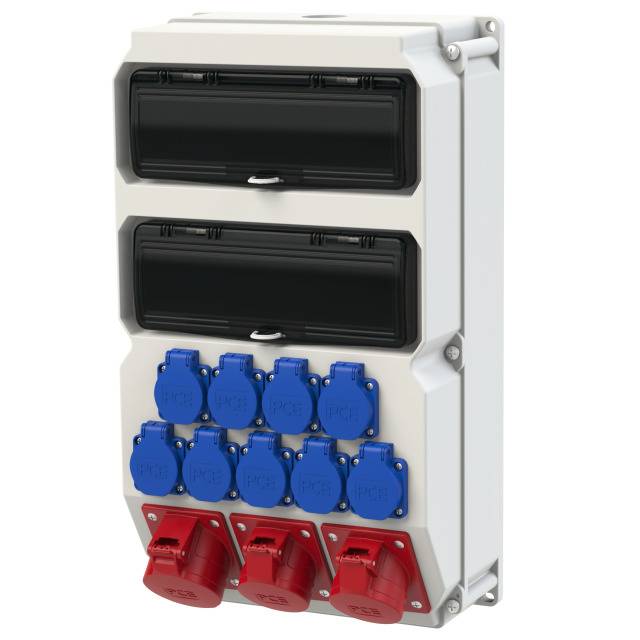

PCE CEE power distributor Delta Sölden 9028883 400 V 32 A
EAN:
Part number:
Item no:
Total (€ 715.00 / piece)
€ 715.00
incl. VAT
14-day return policy included
Highlights & Details
Plastic junction sölden 32 A
- IP54
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
Screw terminals
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- No. of PG sockets
9
- Inputs
Screw terminals
- Outputs
1 CEE-socket 32A, 5-pin, 2 doses of CEE 16 A, 5-pin, 9 outlets 16 A (230 V)
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP54
- Protection
1 line safety switch C 32 A 3-pin, 2 line circuit breaker C16 A 3-pin, 9 Line safety switch C 16 A 1-pin, 1 FI-circuit breaker 63 A (30 mA)
- Weight
9.000 kg

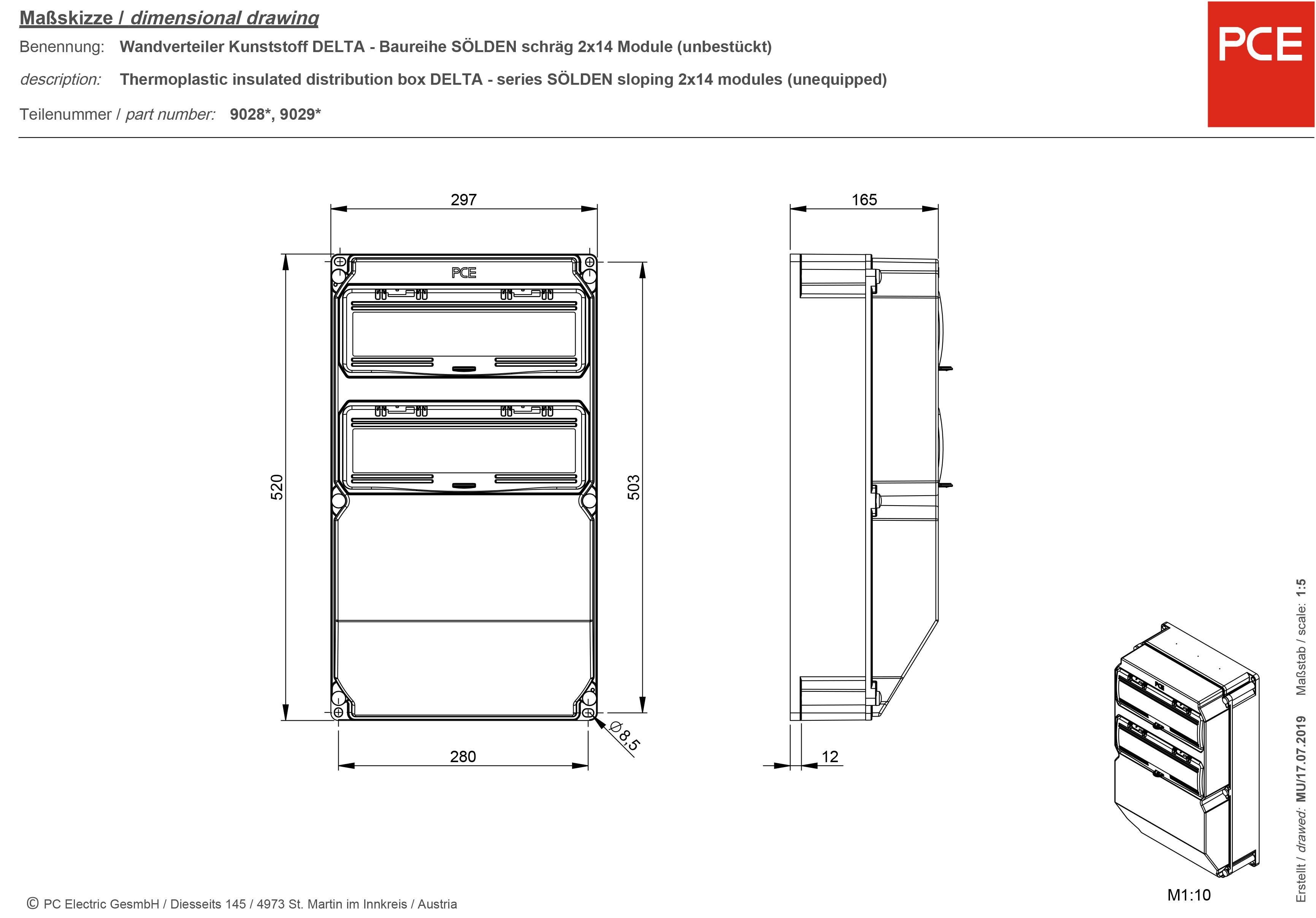

- Dim
(W x H x D) 297 x 520 x 165 mm
- Width
297 mm
- Height
520 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- Content
1 pc(s)
- Depth
165 mm
Description
Wall distributor made of plastic series DELTA with 2 x 14 part units in the folding window.
This text is machine translated.
This text is machine translated.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
