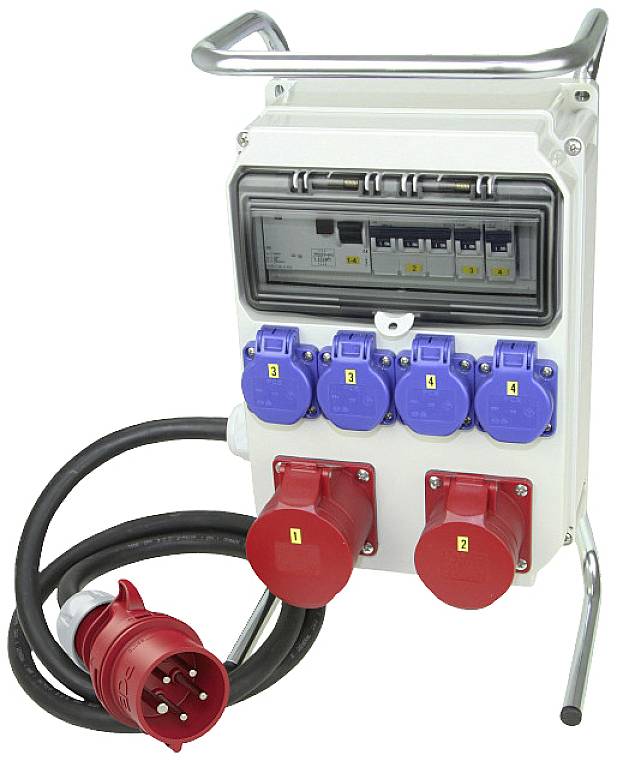

PCE CEE power distributor DELTA Anif4 9134175 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 394.12 / piece)
€ 394.12
plus VAT.
14-day return policy included
Highlights & Details
Plastic junction ebbs 4 32 A
- IP44
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- No. of PG sockets
4
- Inputs
CEE plug, 32 A, 5-pole
- Outputs
1 CEE-socket 32A, 5-pin, 1 CEE-socket 16A, 5-pin, 4 outlets 16 A (230 V)
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2.00 m
- Cable standard
H07RN-F 5G 6 mm²
- Protection
1 line safety switch C 16 A 3-pole, 2 Line safety switch C 16 A 1-pole; 1 FI-circuit breaker 63 A 4-pin 0.03 A
- Dim
(W x H x D) 222 x 320 x 114 mm
- Width
222 mm
- Height
320 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
114 mm
Documents & Downloads
Datasheet
Datasheet 393203 PCE CEE power distributor DELTA Anif4 9134175 400 V 32 A
Datasheet 393203 PCE CEE power distributor DELTA Anif4 9134175 400 V 32 A
User & Safety Instructions
User & Safety Instructions 393203 PCE CEE power distributor DELTA Anif4 9134175 400 V 32 A
Description
Mobile Distributor made from plastic of the series DELTA with 10 units in the folding window.
This text is machine translated.
This text is machine translated.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
