PCE e325-f eMobility charging port Type 2 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 121.84 / piece)
€
Only 2 Piece(s) available
Highlights & Details

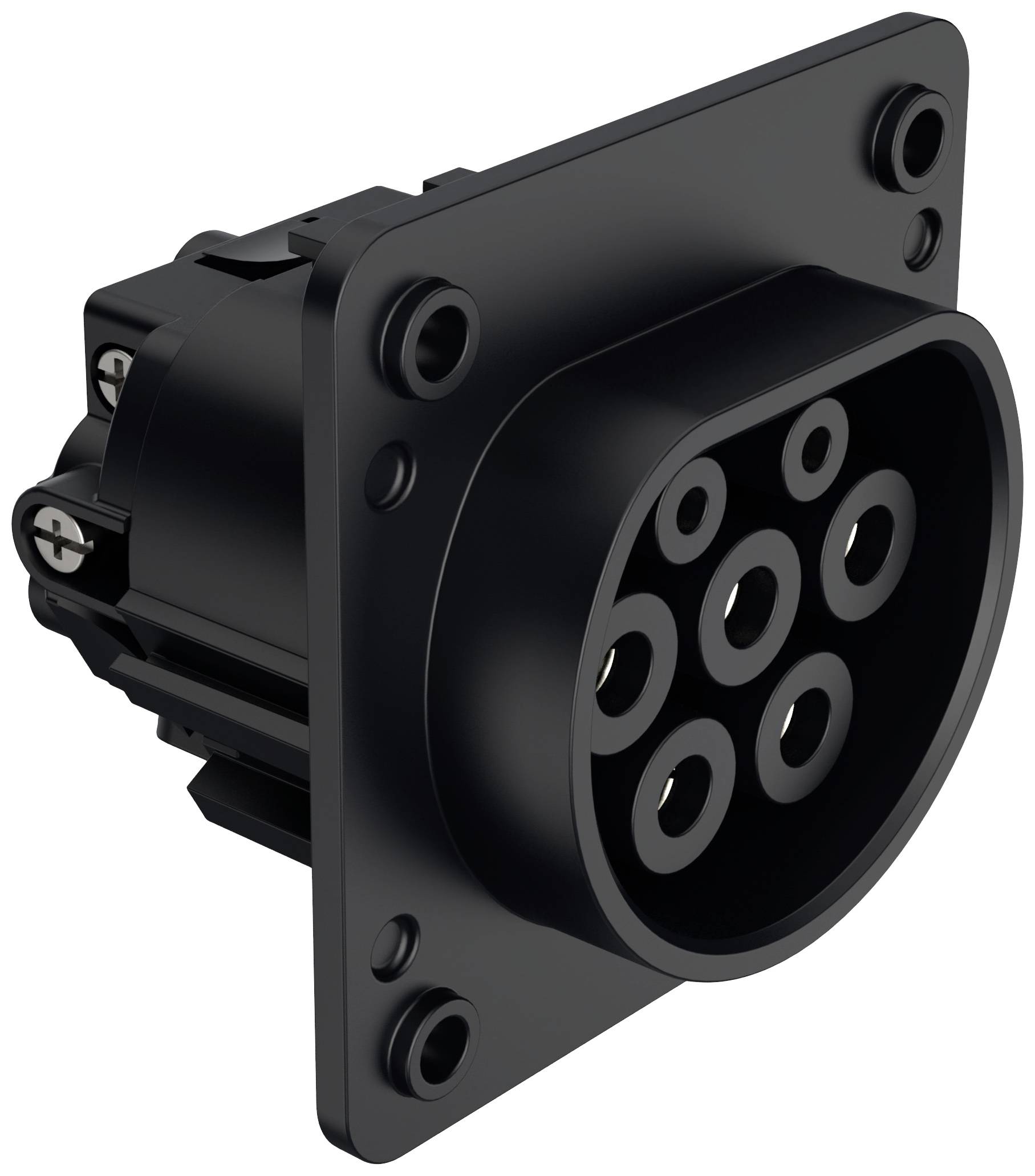

EMobility charging port type 2
- Mounting socket Typ2Front panel mountingProtection class IP44/54
Technical specifications
- Current type: AC 3-phaseNumber of communication contacts: 2Cross section of the power contacts mm²: 2.5 – 6Contact material: CuZnSurface treatment Contacts: Nickel-plated
- Product type
eMobility charging port
- Charger connectors
Type 2
- Nominal voltage
480 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Factory colour
Black
- Certification marks
IEC/EN 62196
IP44
- Length
90 mm
- Width
85 mm
- Height
92 mm
- Depth
70.0000 mm
Documents & Downloads
Datasheet
Datasheet 2575542 PCE e325-f eMobility charging port Type 2 32 A
User & Safety Instructions
User & Safety Instructions 2575542 PCE e325-f eMobility charging port Type 2 32 A
Description

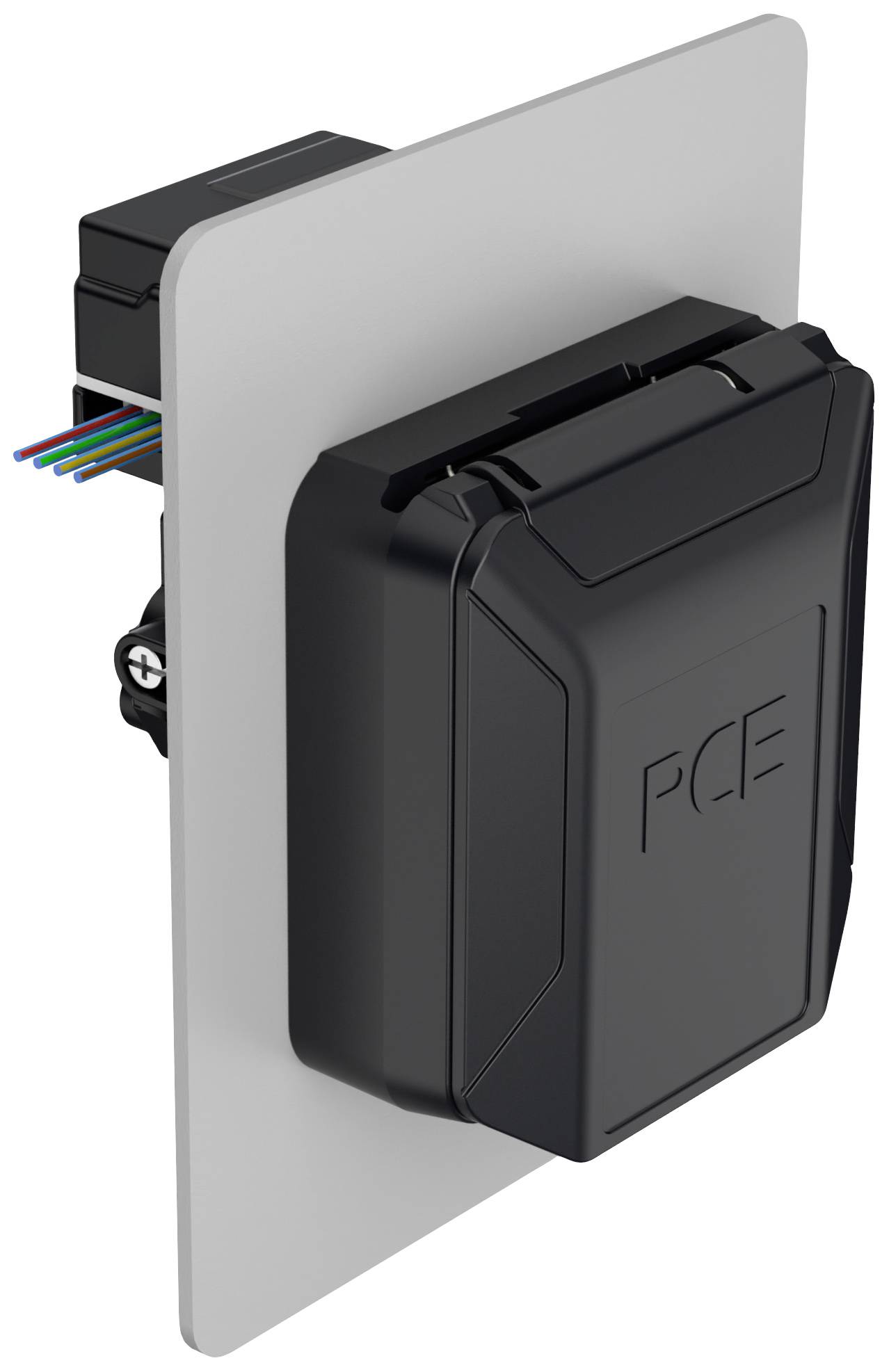

Typ2 infrastructure add-on socket for charging electric vehicles (EV) with alternating current (AC) consisting of:Mounting socket Typ2 (AC 32 A), contacts: Screw connection, nickel-plated brassInterlock actuator (DC 9 - 16 V)Frame with self-closing hinged lidIntermediate flange (front panel fitting)Flange sealMounting screws.According to IEC/EN 62196, test mark: Oil and VDE.
