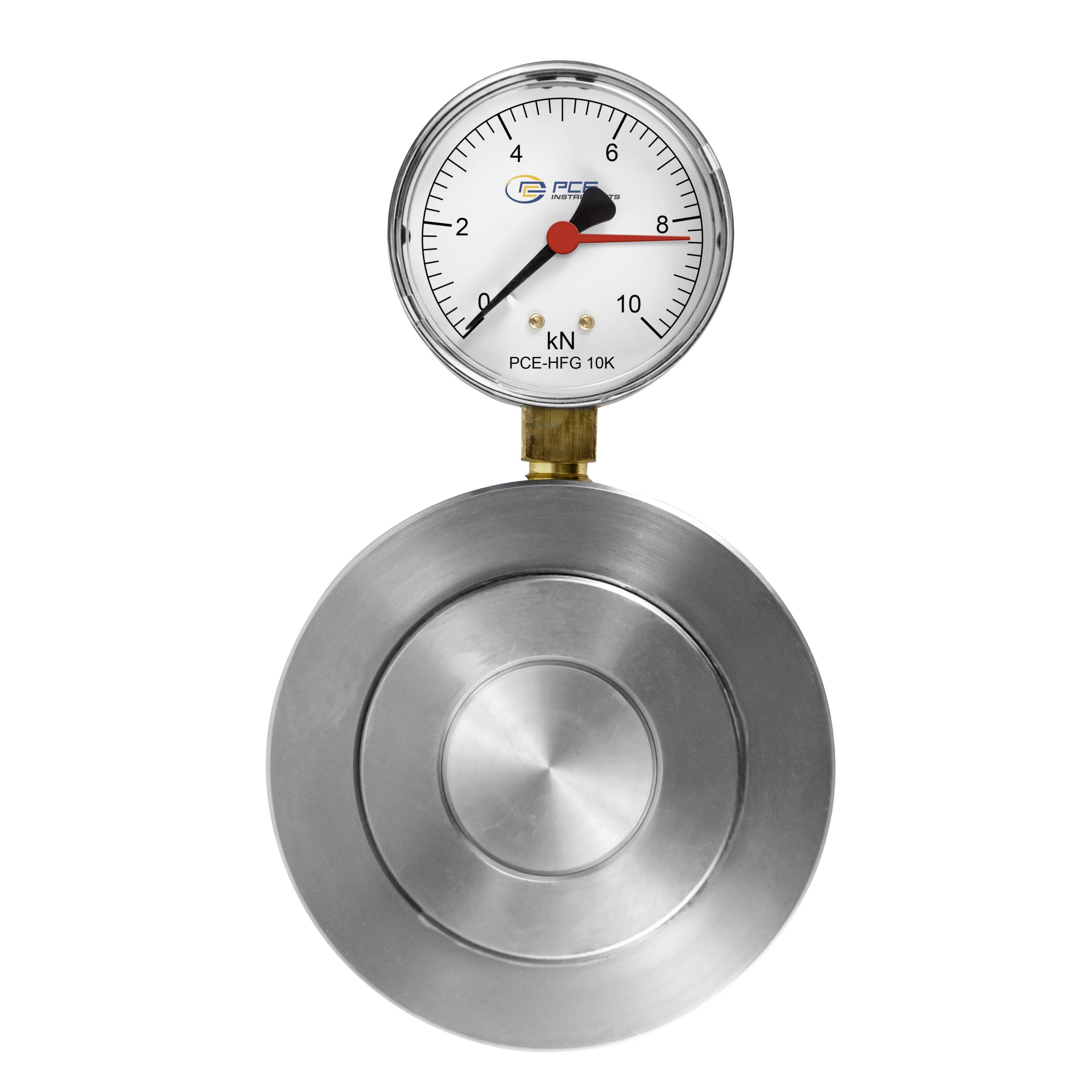

Analog force gauge marked in kN on a circular metal sensor, showing about 8 kN.

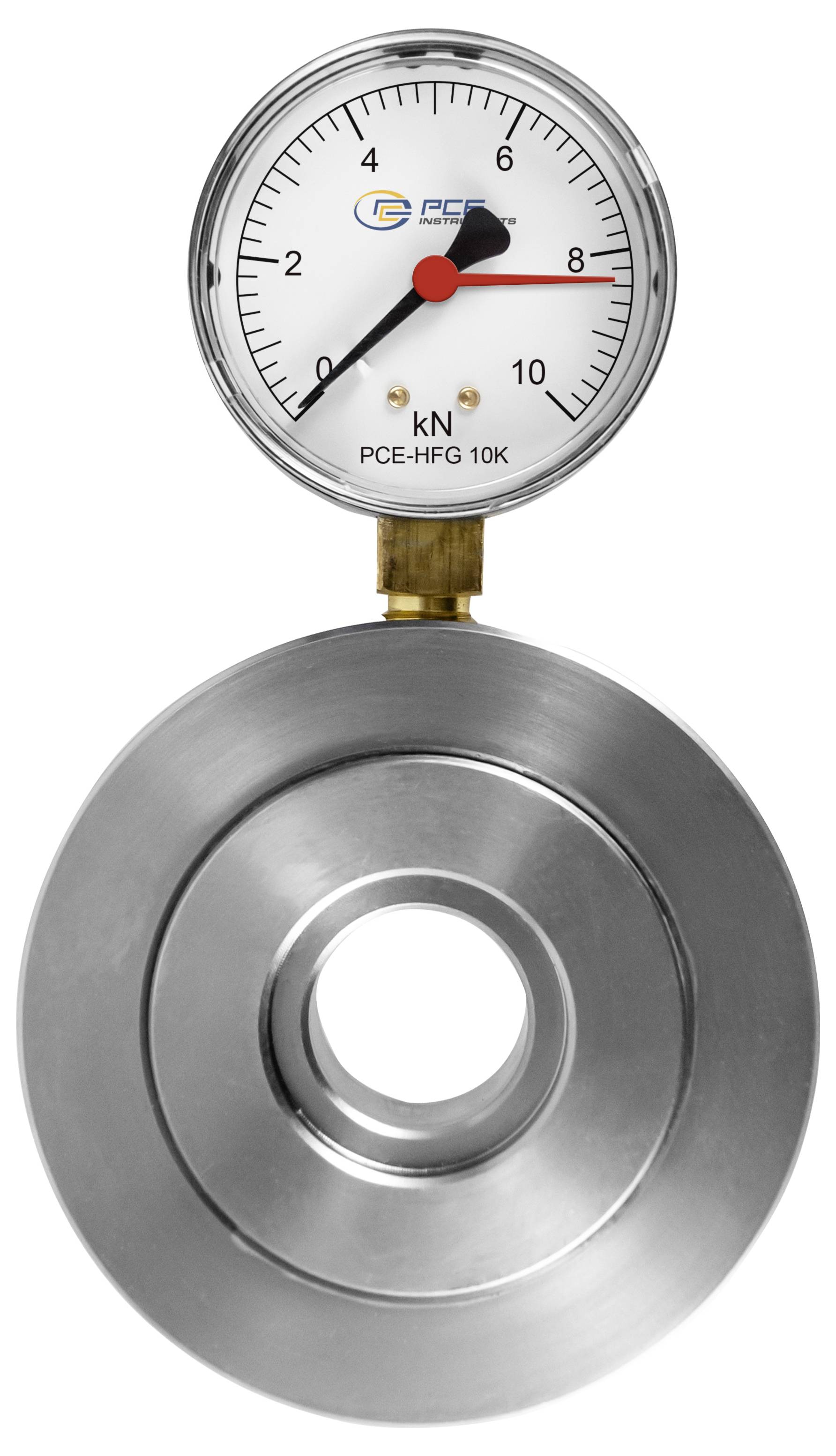

Analog force gauge labeled in kN attached to a circular metal load cell, with the needle pointing near 8.

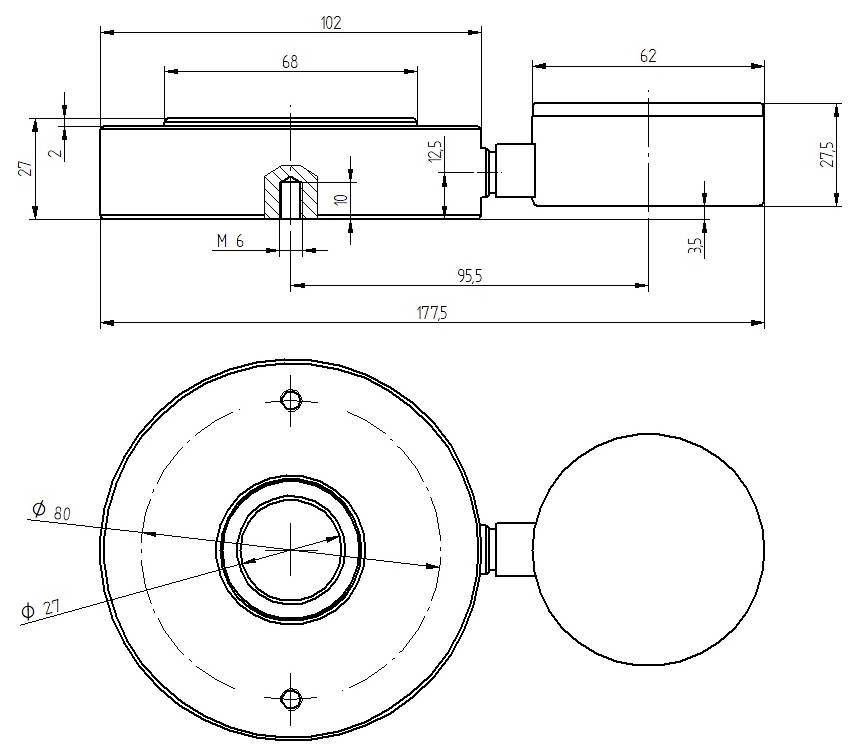

Technical drawing of a round mechanical component with attached cylindrical knob, showing top and front views with dimensions marked in millimeters.

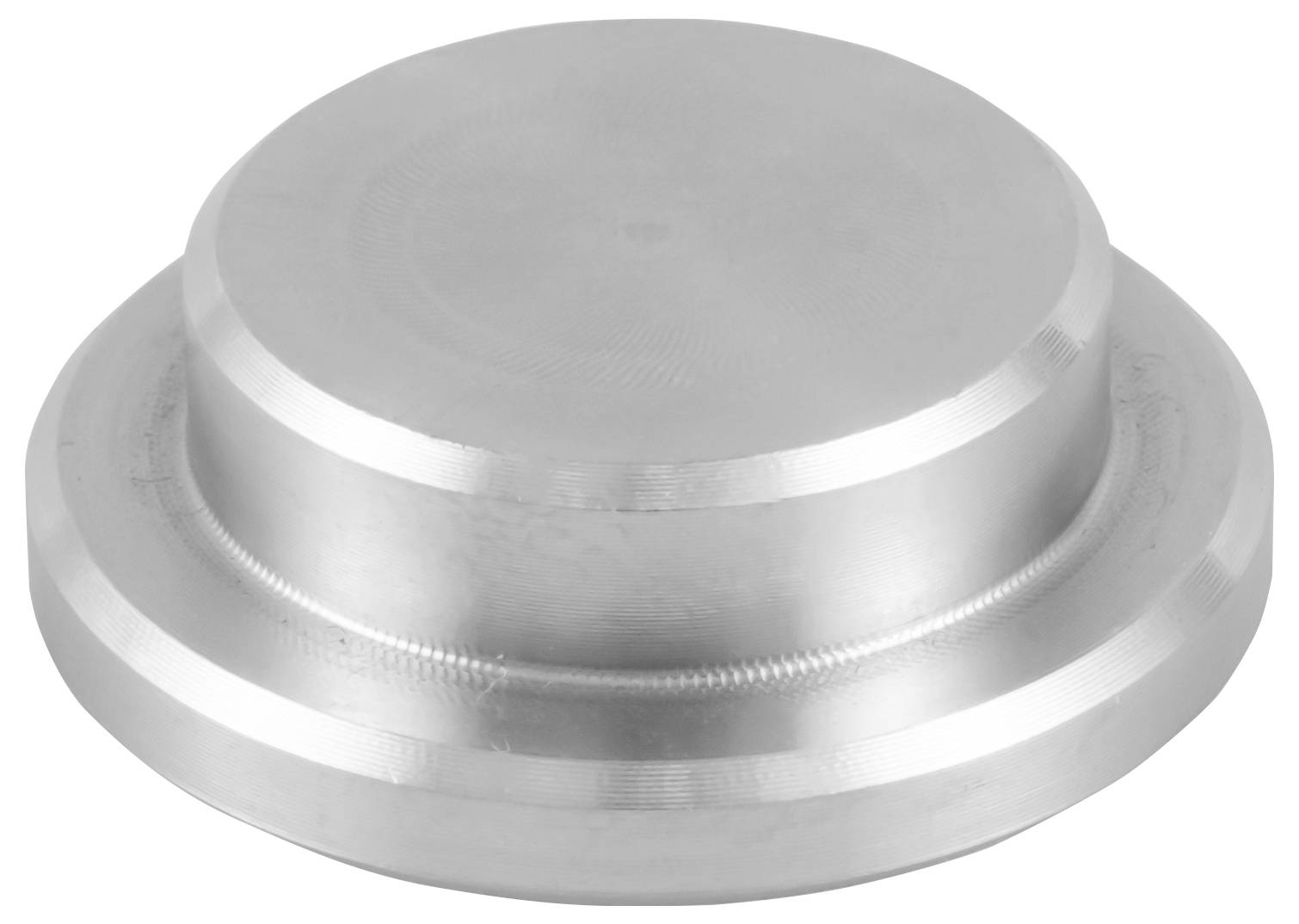

A silver metal cylindrical cap or machined spacer with a stepped, rounded base on a white background.

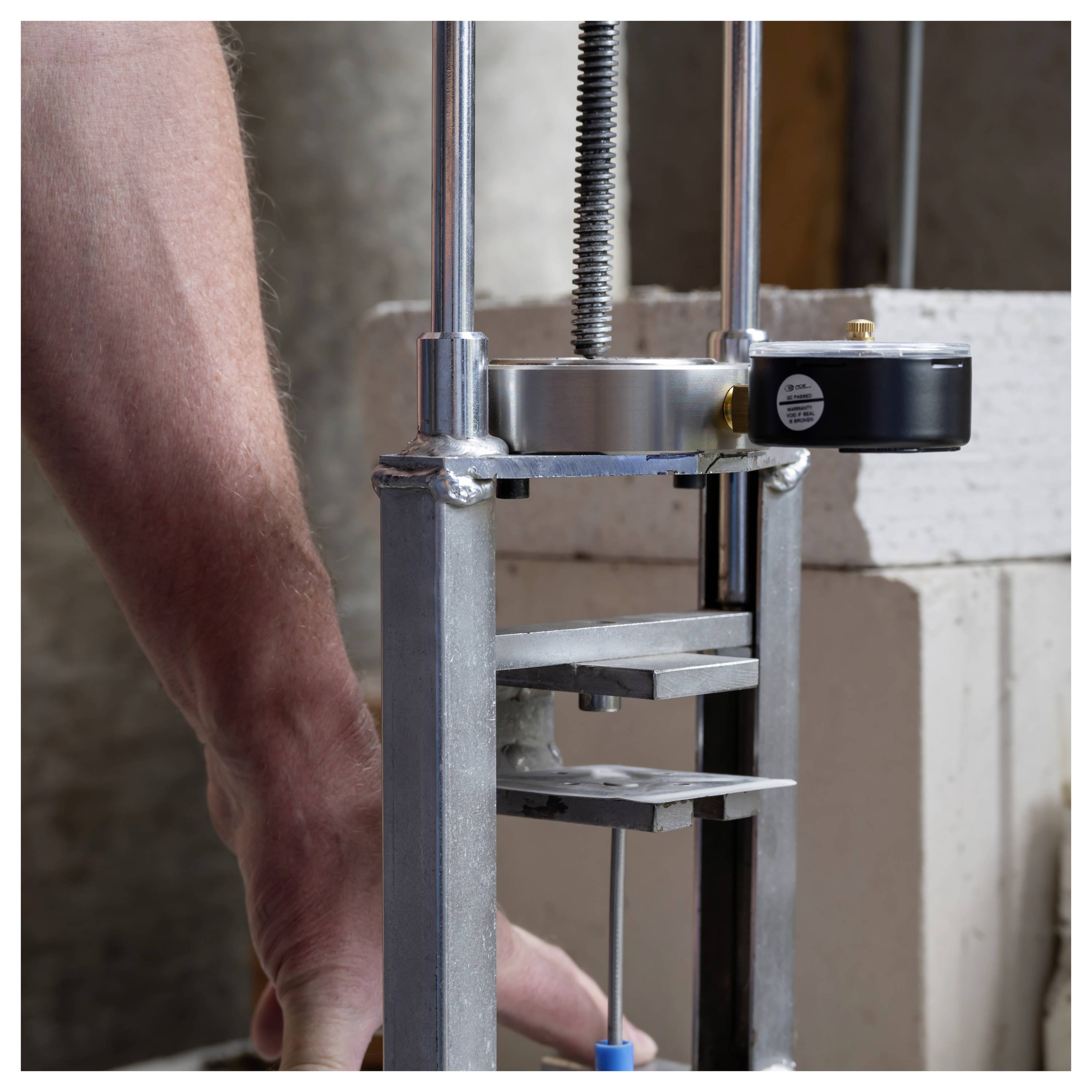

Person operating a metal testing press compressing a concrete sample in a lab or workshop.

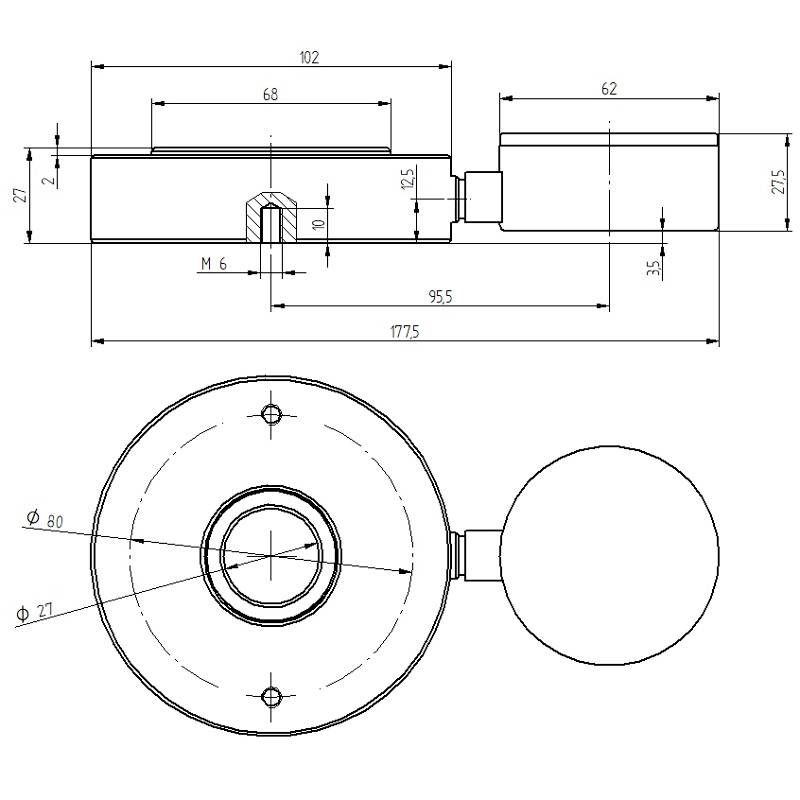

Technical drawing of a mechanical component with dimensional specifications. Upper view shows side details, lower view shows top-down perspective.

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 533.61 / piece)

€ 533.61

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

PCE Instruments PCE-HFG 10K Force gauge 0 - 10000 N Manufacturer's standards (no certificate)

Force transducer made of stainless steelMeasurement of static pressure forcesRing force transducer and pressure stampScrew attachment for axial mountingIntegrated drag indicatorPressure gauge in Newton [N]

Technical specifications

Measuring range 0 10,000 NResolution 200 NMeasuring accuracy ±1.85 % of the measuring range Measuring range of the display Ø55 mmMounting holes 2 x M6Umgebungsbedingungen 0 50 °C.

Weight: 1.6 kg

Force reading range: 0 - 10000 N

: Manufacturer's standards (no certificate)

Display: Analogue

Basic accuracy: 1.85 %

Force reading range (max.): 10000 N

Force reading range (min.): 0 N

Product type: Force gauge

Documents & Downloads

Datasheet

Datasheet 2620707 PCE Instruments PCE-HFG 10K Force gauge 0 - 10000 N Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2620707 PCE Instruments PCE-HFG 10K Force gauge 0 - 10000 N Manufacturer's standards (no certificate)

Description

Hydraulic force meter with analogueue scale / compact for small spaces / drag indicator / with mounting holes / 27 mm size ring opening A hydraulic force meter is based on the principle that the force acting on the pressure stamp is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force gauge on a scale in Newton. With the integrated drag indicator, our hydraulic force meter can display the respective maximum measured value. Another special feature of the hydraulic force meter is the 27 mm ring opening. With this ring opening, the hydraulic force measuring device can be used to measure, for example, guide rails, shafts and also bolts from a hydraulic press. The hydraulic force measuring device can be converted from a ring force measuring device into a pressure stamp force measuring device in seconds using the plug adapter that can be used. Thus, the hydraulic force meter can be used flexibly. A hydraulic force measuring device is used wherever forces that are to be measured act. A hydraulic force gauge can therefore be used optimally for maintenance measurements and adjustment work of industrial machines, for example.
