Buy Sauter FH 5 Force Gauge N/A

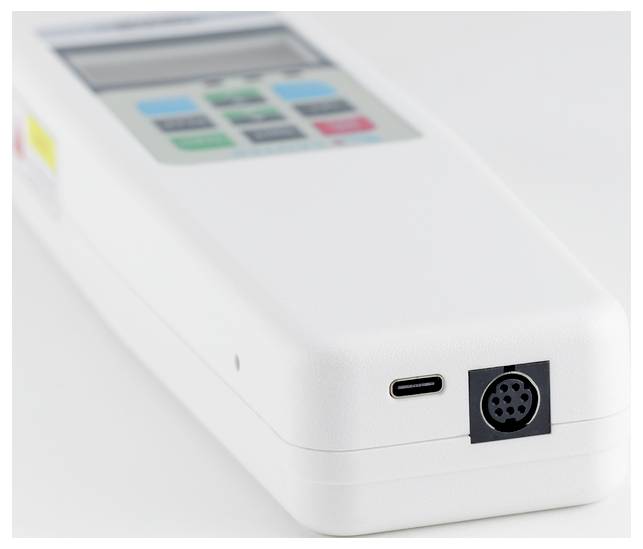

A white electronic device with a small screen, several coloured buttons, and a USB port on the front.

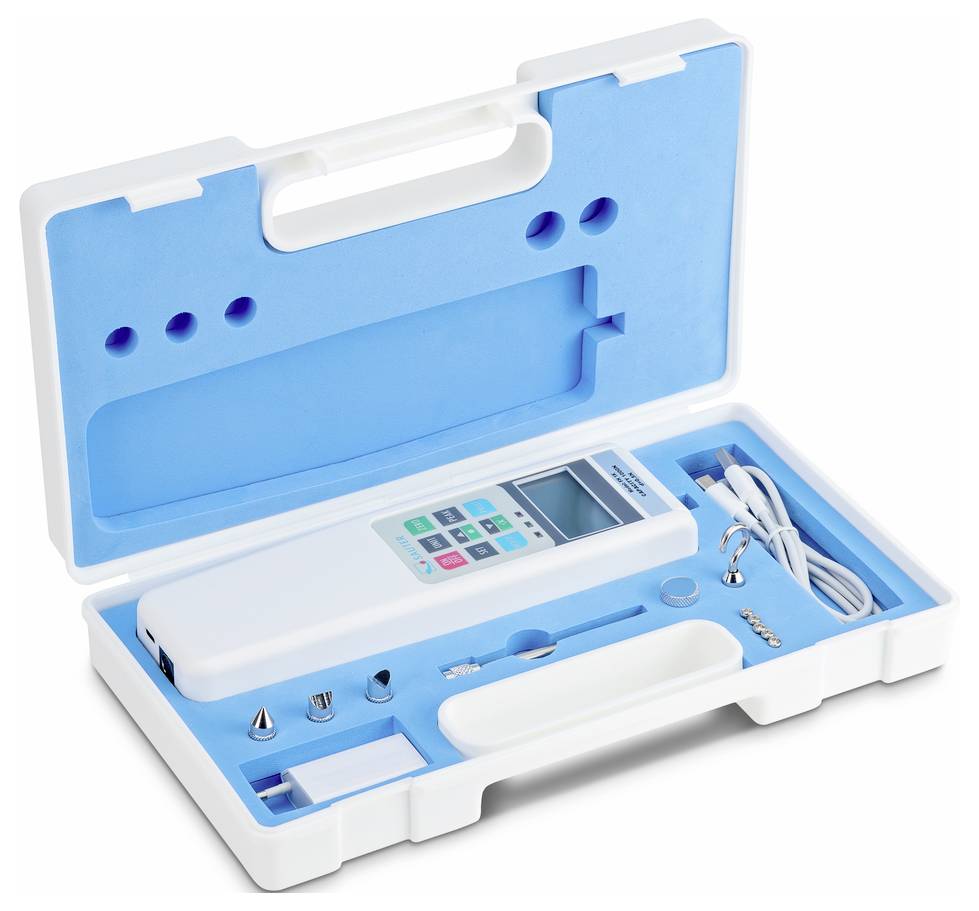

A portable measuring device set with an LCD screen in an open white case with blue interior lining, containing accessories and cables.

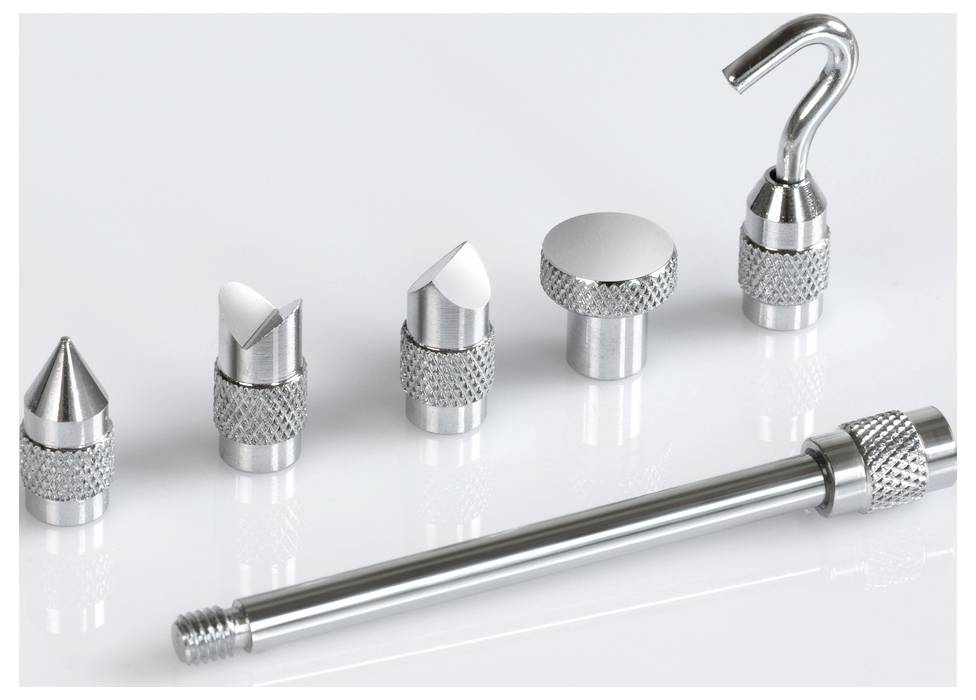

Five different metal nozzles and a long rod on a white surface, used for patisserie work or model making.

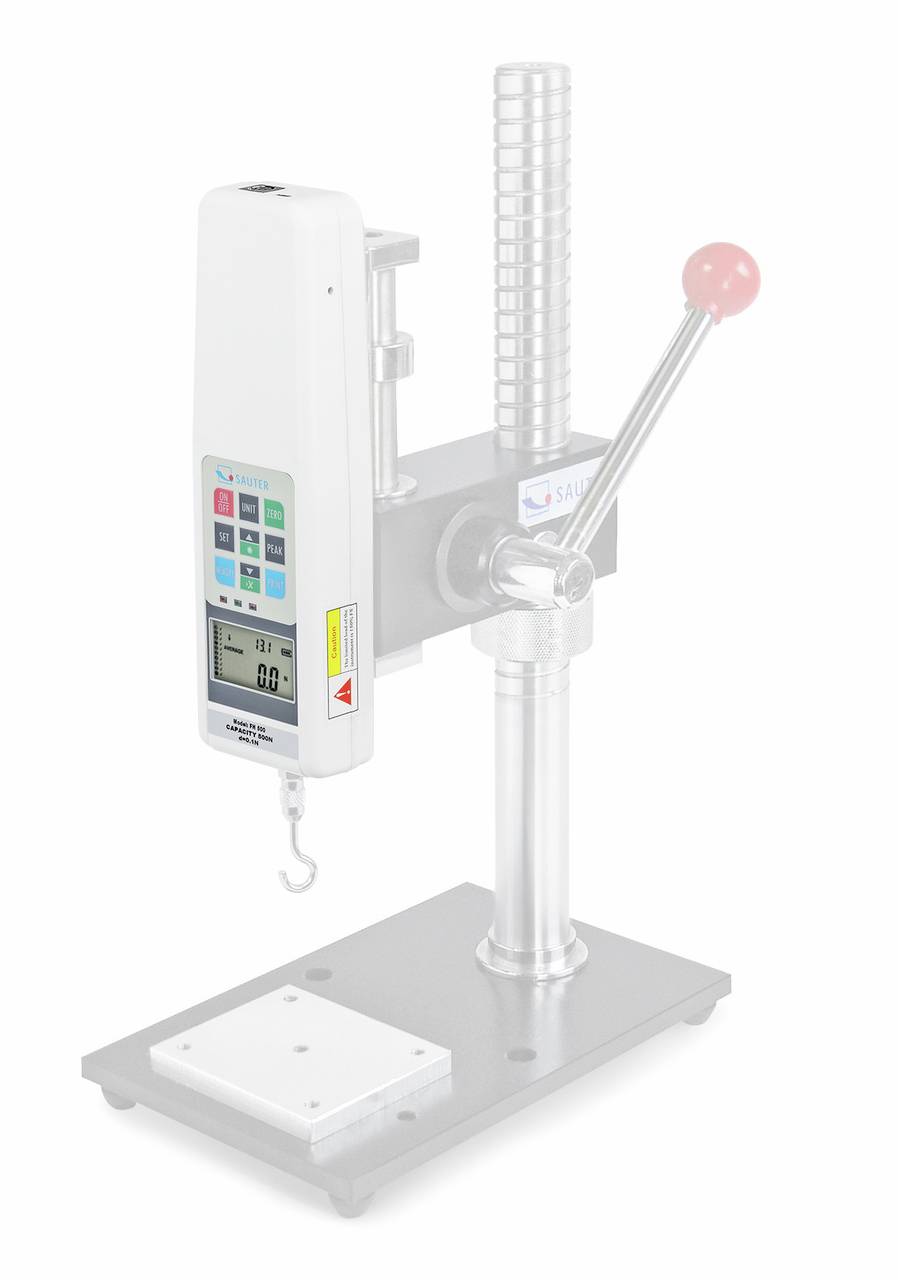

Electronic force measuring device with digital display and suspension hook, mounted on a stable stand with a red hand lever.

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 621.01 / piece)

€ 621.01

plus VAT.

Report legal concerns

Highlights & Details

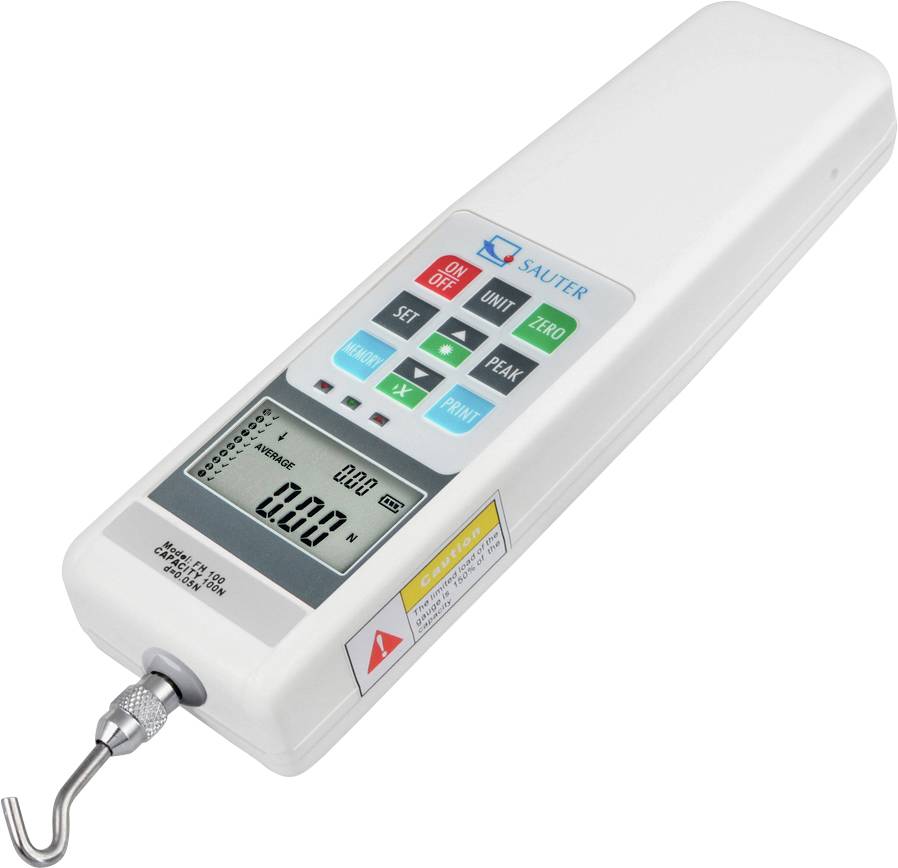

Digital Force Gauge| Force Gauge 5 N,internal sensor

Universal digital force gauge (Push / Pull) with Peak-Hold function with RS-232

Technical specifications

Power supply (details): In-built rechargeable batteries

Dim: (L x W x H) 70 x 230 x 40 mm

Weight: 0.55 kg

Height: 40 mm

Length: 70 mm

Width: 230 mm

Force reading range: 5 N (max.)

: Manufacturer's standards (no certificate)

Display: LCD

Interfaces: RS232
USB device

Basic accuracy: 0.5 %

Force reading range (max.): 5 N

Resolution (force): 0.001 N

Reading frequency: 2000 Hz

Product type: Force gauge

Documents & Downloads

Datasheet

Datasheet 755626 Sauter FH 5 Force Gauge N/A

User & Safety Instructions

User & Safety Instructions 755626 Sauter FH 5 Force Gauge N/A

Information

Information 755626 Sauter FH 5 Force Gauge N/A

Description

Digital power measuring device for traction and pressure detection with grasping of peak value Professional measuring performance: 2000 Hz (Measurement/s) measuring speed and 0.2% max. Measuring accuracy e.g. for highly precise outline tests. The Measured force is continuously indicated in the display in the Track mode Peak Mode: Max. Force within a search is recorded in the display Display reversal and background lighting is possible. In-built rechargeable batteries for mobile measurements

Features

Turnable display with backlight
Can be mounted on all manual test stands
Digital force gauge with internal sensor
Data interface RS-232, included
Standard attachments: as shown below, extension rod: 90 mm
Delivered in a hard carrying case
Selectable measuring units: N, lb, kg
Real time or Peak Hold Mode to observe transcients or capture peaks
Function to set limits: Programmable high / low setpoints for go/no-go testing. Light and sound signal output
Auto-Power-Off
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
