1/10
Sauter Force gauge Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Highlights & Details

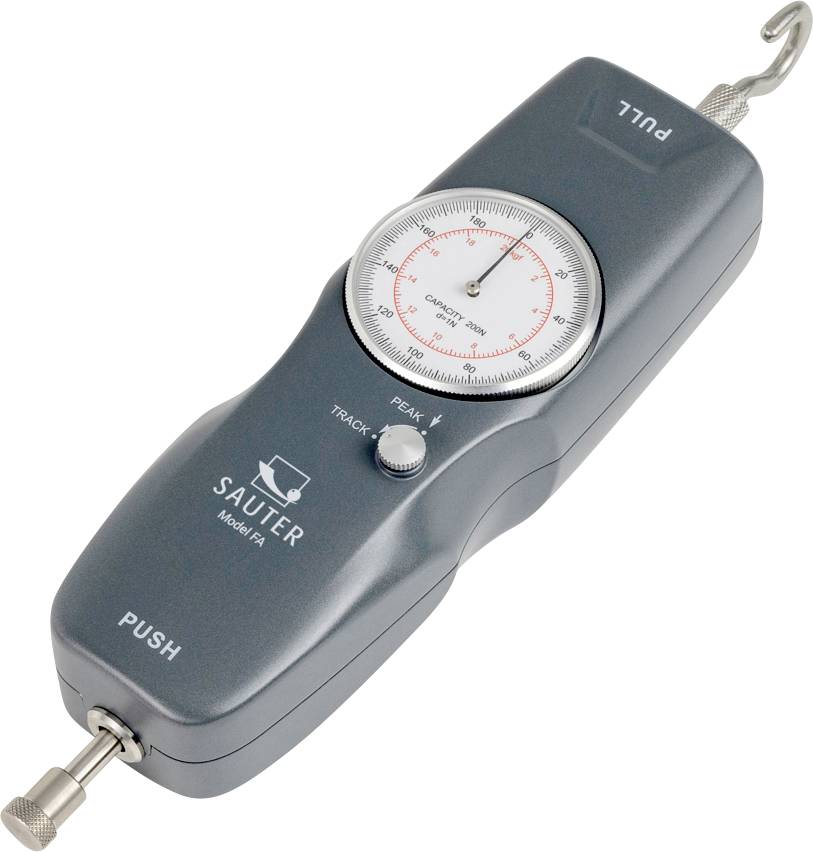

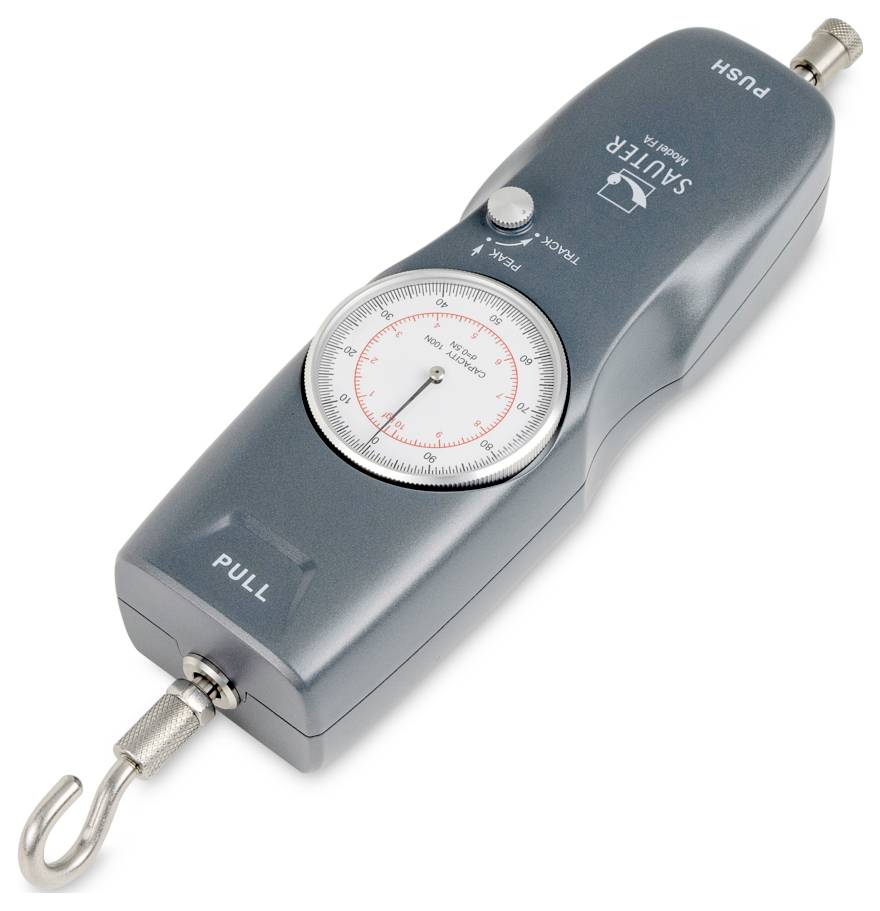

Sauter Force gauge Manufacturer's standards (no certificate)
- Mechanical force meter with peak-hold function, new with sturdy aluminum housing and modern design
- This text is machine translated.
Technical specifications
- Dim
(W x H x D) 233 x 53 x 66 mm
- Depth
66 mm
- Height
53 mm
- Width
233 mm
Manufacturer's standards (no certificate)
- Enclosure material
Aluminium
- Series
FA
- Tolerance
1.00 %
- Max. ambient temperature
40 °C
- Min. ambient temperature
0 °C
- Product type
Force gauge
Documents & Downloads
Datasheet
Datasheet 3702145 Sauter Force gauge Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3702145 Sauter Force gauge Manufacturer's standards (no certificate)
Description
Features
- Mechanical force meter for train and compression force measurements
- Sturdy aluminum housing to protect the mechanical system in case of impacts or falls
- Modern, functional design
- Dual scale: Newton and kg can be read in parallel
- Rotating graduated dial for easy zero reset of the device

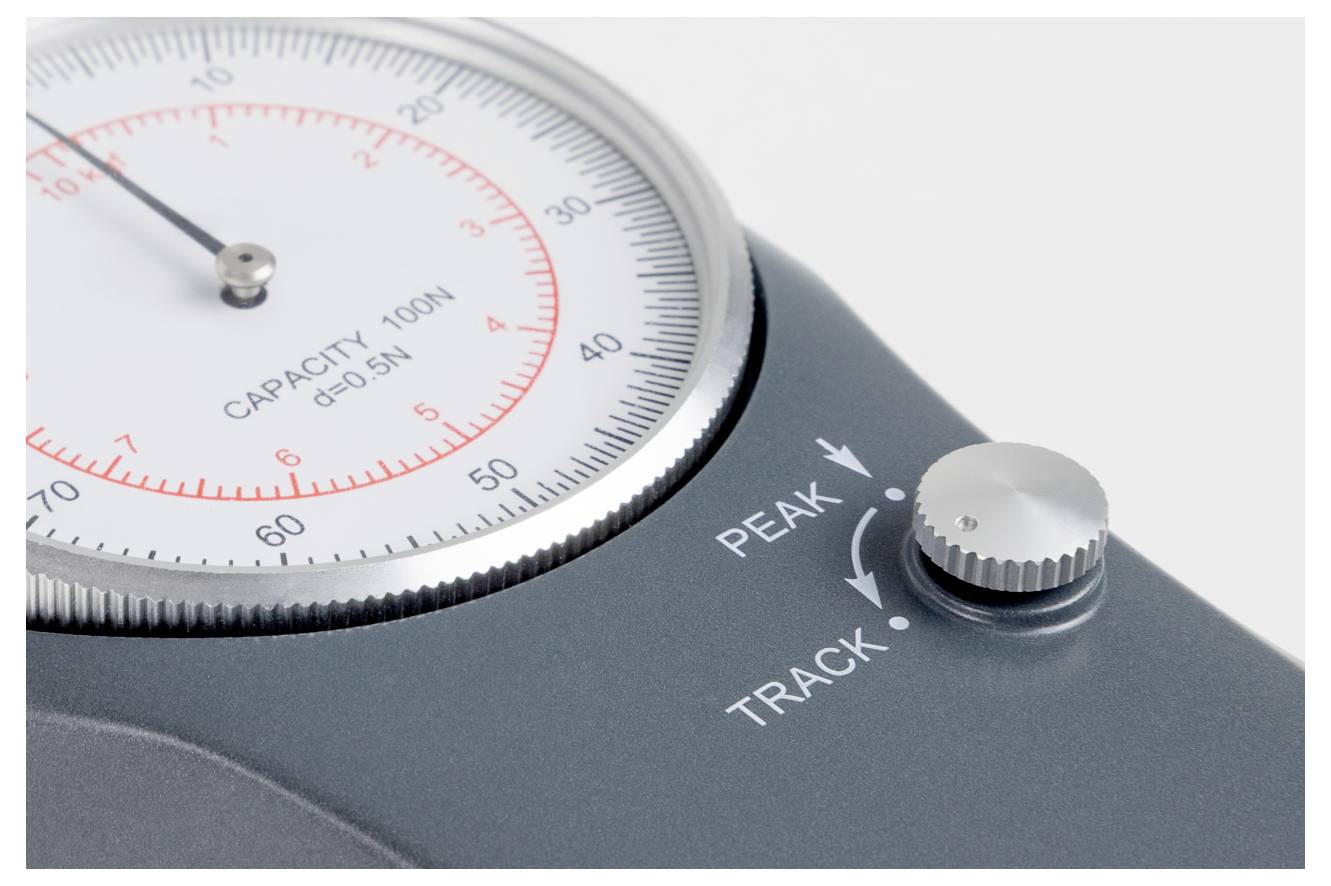

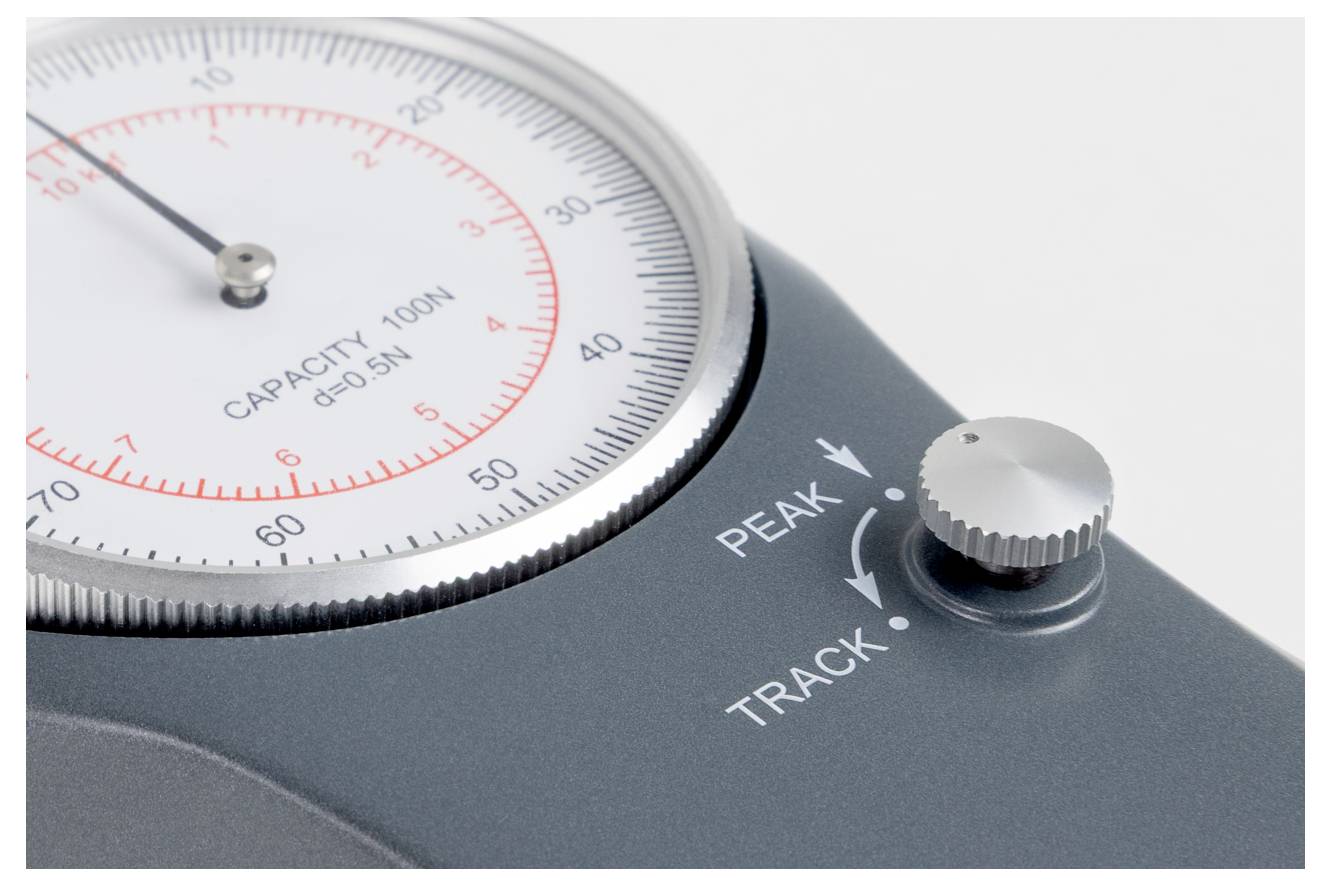

- Peak-hold function by drag indicator
- Can be fitted to all manual test stands
- Display has been reset at the touch of a button

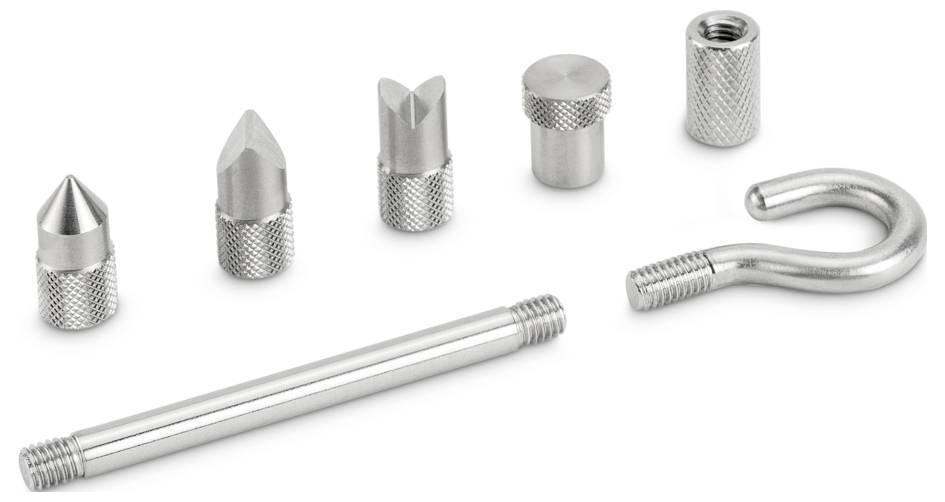

- Standard attachments: As shown, extension bar: 90 mm;
