Buy Sauter FH 10 Force Gauge N/A

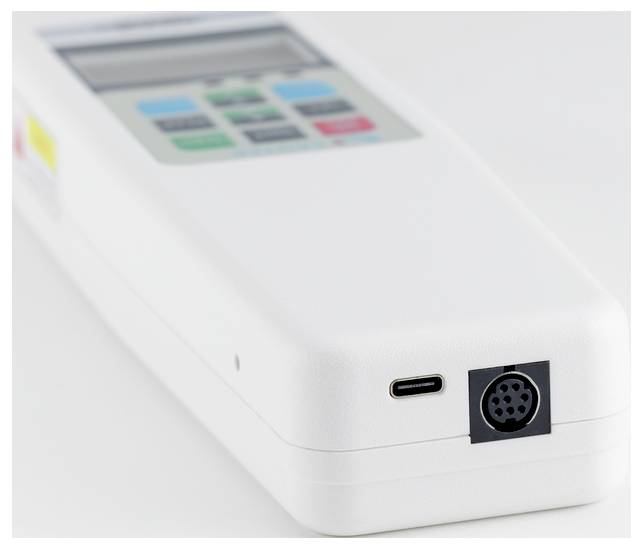

A digital handheld measuring device with a keypad and display, which charges via a USB port. Suitable for precise data measurement.

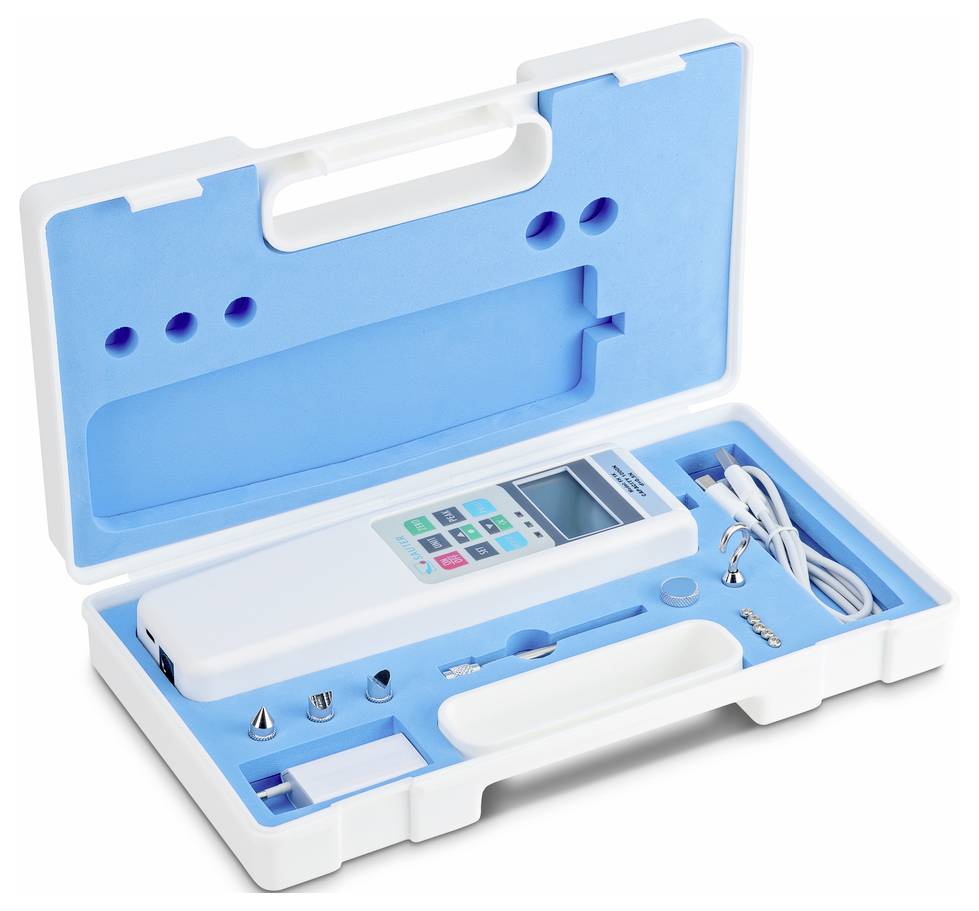

Instrument for measuring hardness in an open blue case. Includes accessories such as cables and attachments.

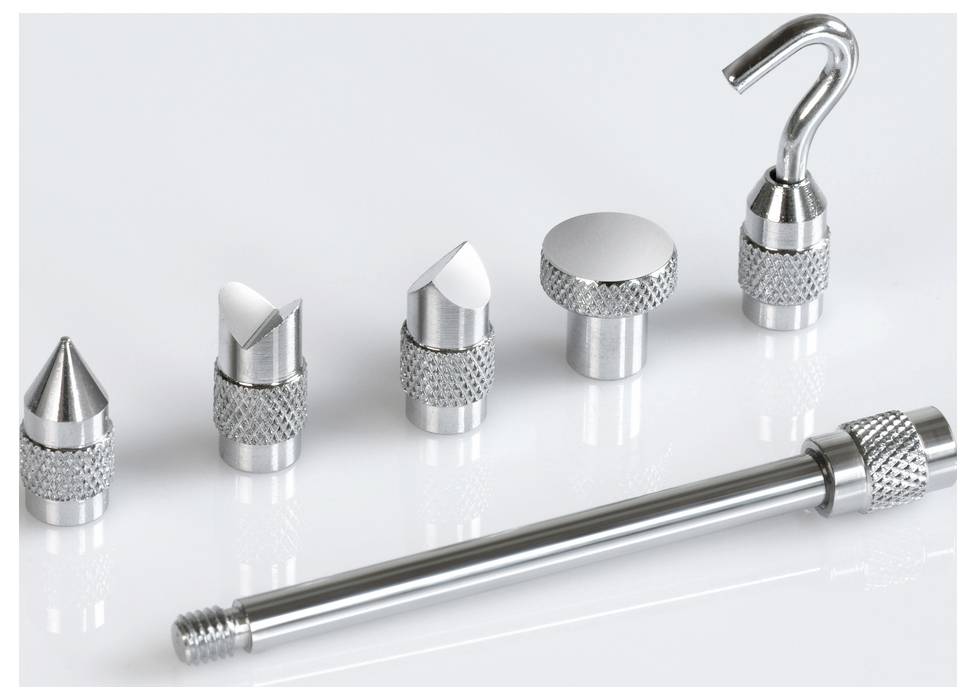

Five different metal attachments and a long metal pin on a smooth, white surface. They appear functional and industrial.

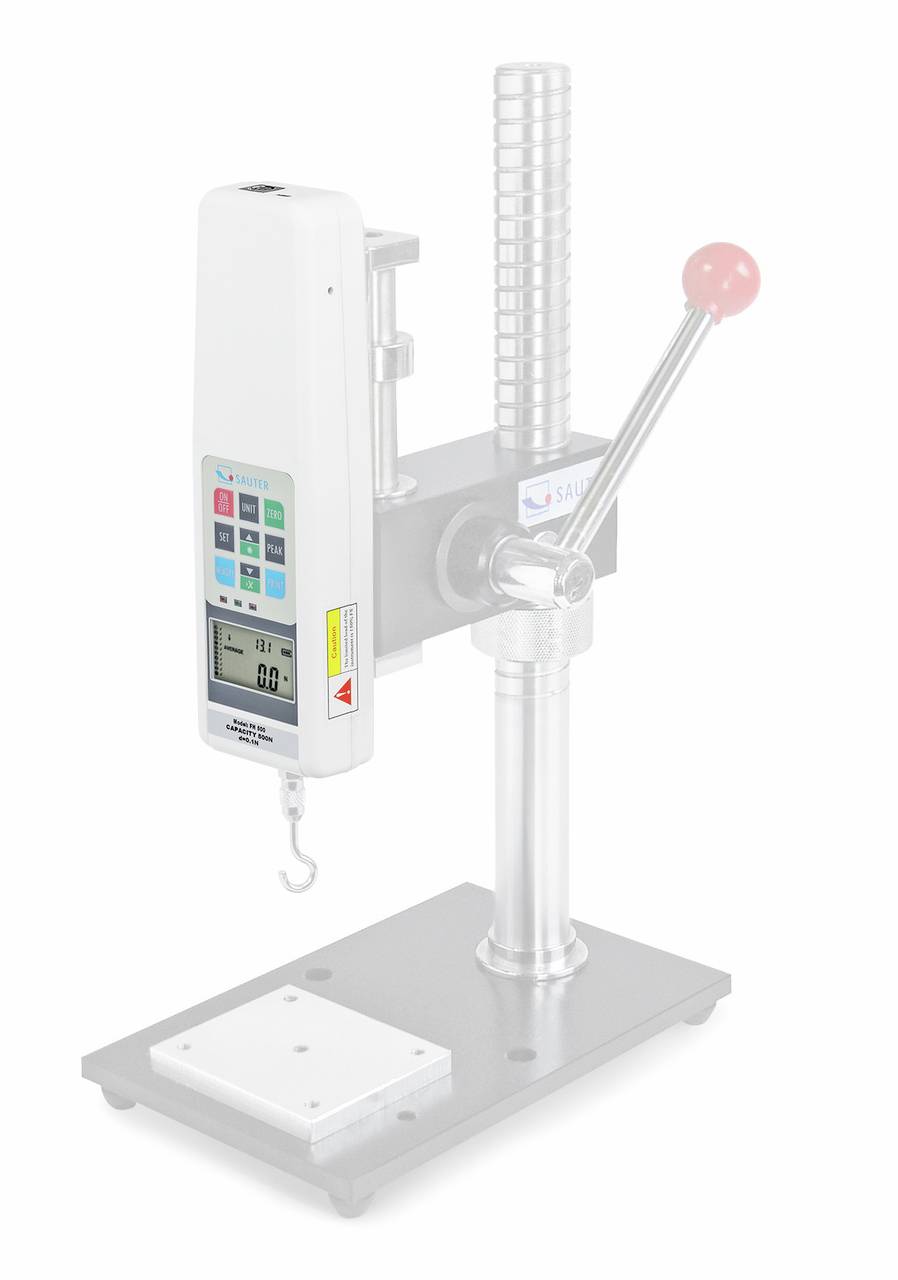

A digital force measuring device on a tripod, displaying readings on a screen. Suitable for measuring tensile and compressive forces.

1/5

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 604.20 / piece)

€ 604.20

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

Digital Force Gauge| Force Gauge 10 N, internal sensor

Universal digital force gauge (Push / Pull) with Peak-Hold function with RS-232

Technical specifications

Product type: Force gauge

Display: LCD

Force reading range (max.): 10 N

: Manufacturer's standards (no certificate)

Power supply (details): In-built rechargeable batteries

Dim: (L x W x H) 66 x 230 x 36 mm

Weight: 0.6 kg

Resolution (force): 0.005 N

Basic accuracy: 0.5 %

Force reading range: 10 N (max.)

Reading frequency: 2000 Hz

Width: 230 mm

Height: 36 mm

Length: 66 mm

Interfaces: RS232
USB device

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 755612 Sauter FH 10 Force Gauge N/A

User & Safety Instructions

User & Safety Instructions 755612 Sauter FH 10 Force Gauge N/A

Information

Information 755612 Sauter FH 10 Force Gauge N/A

Description

Digital power measuring device for traction and pressure detection with grasping of peak value Professional measuring performance: 2000 Hz (Measurement/s) measuring speed and 0.2% max. Measuring accuracy e.g. for highly precise outline tests. The Measured force is continuously indicated in the display in the Track mode Peak Mode: Max. Force within a search is recorded in the display Display reversal and background lighting is possible. In-built rechargeable batteries for mobile measurements

Features

Turnable display with backlight
Can be mounted on all manual test stands
Digital force gauge with internal sensor
Data interface RS-232, included
Standard attachments: as shown below, extension rod: 90 mm
Delivered in a hard carrying case
Selectable measuring units: N, lb, kg
Real time or Peak Hold Mode to observe transcients or capture peaks
Function to set limits: Programmable high / low setpoints for go/no-go testing. Light and sound signal output
Auto-Power-Off
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
