Sauter FH 100K Force gauge 100000 N (max.) Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,726.89 / piece)
€ 1,726.89
plus VAT.
Highlights & Details
Sauter FH 100K Force gauge 100000 N (max.) Manufacturer's standards (no certificate)
- RS-232 interface
- External measuring cells
- Reversible display with backlighting
Technical specifications
- Readability [D]: 50 N.
- Power supply (details)
12 V 400 mA
- Dim
(L x W x H) 130 x 180 x 55 mm
- Weight
10 kg
- Height
55 mm
- Length
130 mm
- Width
180 mm
- Force reading range
100000 N (max.)
Manufacturer's standards (no certificate)
- Display
LCD

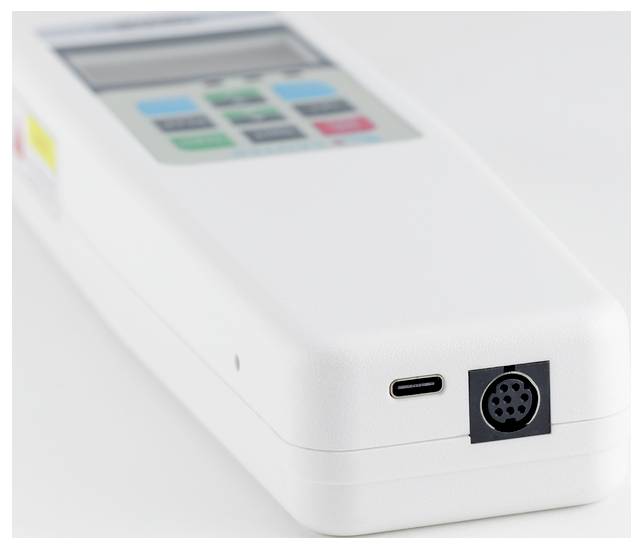

- Interfaces
RS232
USB device
- Basic accuracy
0.5 %
- Force reading range (max.)
100000 N
- Resolution (force)
50 N
- Reading frequency
2 kHZ
- UKCA
yes
- Product type
Force gauge
Documents & Downloads
Datasheet
Datasheet 1733153 Sauter FH 100K Force gauge 100000 N (max.) Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 1733153 Sauter FH 100K Force gauge 100000 N (max.) Manufacturer's standards (no certificate)
Information
Information 1733153 Sauter FH 100K Force gauge 100000 N (max.) Manufacturer's standards (no certificate)
Description
The Limit value function programming of max/min in tensile and compressive direction with output of an acoustic and optical signal, the force measuring devices in the series FH-M ideal for efficient and error-free testing of serial parts.
This text is machine translated.
This text is machine translated.
Features
- Digital force meter with external force transducer
- Selectable units: N, lb, kg, kN, t
- Peak Hold function for capturing the peak value or track function for continuous measurement display
- Auto power-off
- Mini Statistics Package: average education from up to 10 stored measured values as well as Min, Max, n

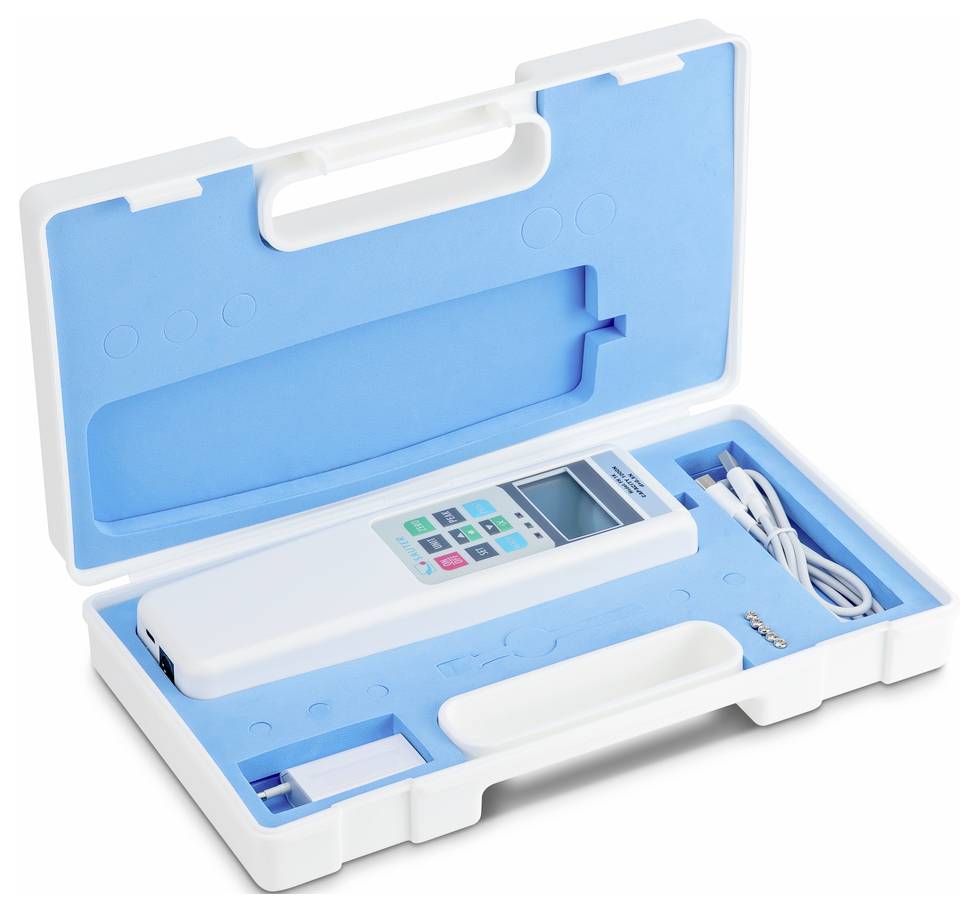

Scope of delivery
- Battery charger
- Carrying case
- 5 M3 x 8 screws for attachment to SAUTER test benches
