Name: Sauter FL 200 Force gauge 200 N (max.) Manufacturer's standards (no certificate)
Brand: Sauter
SKU: 755690
Availability: InStock

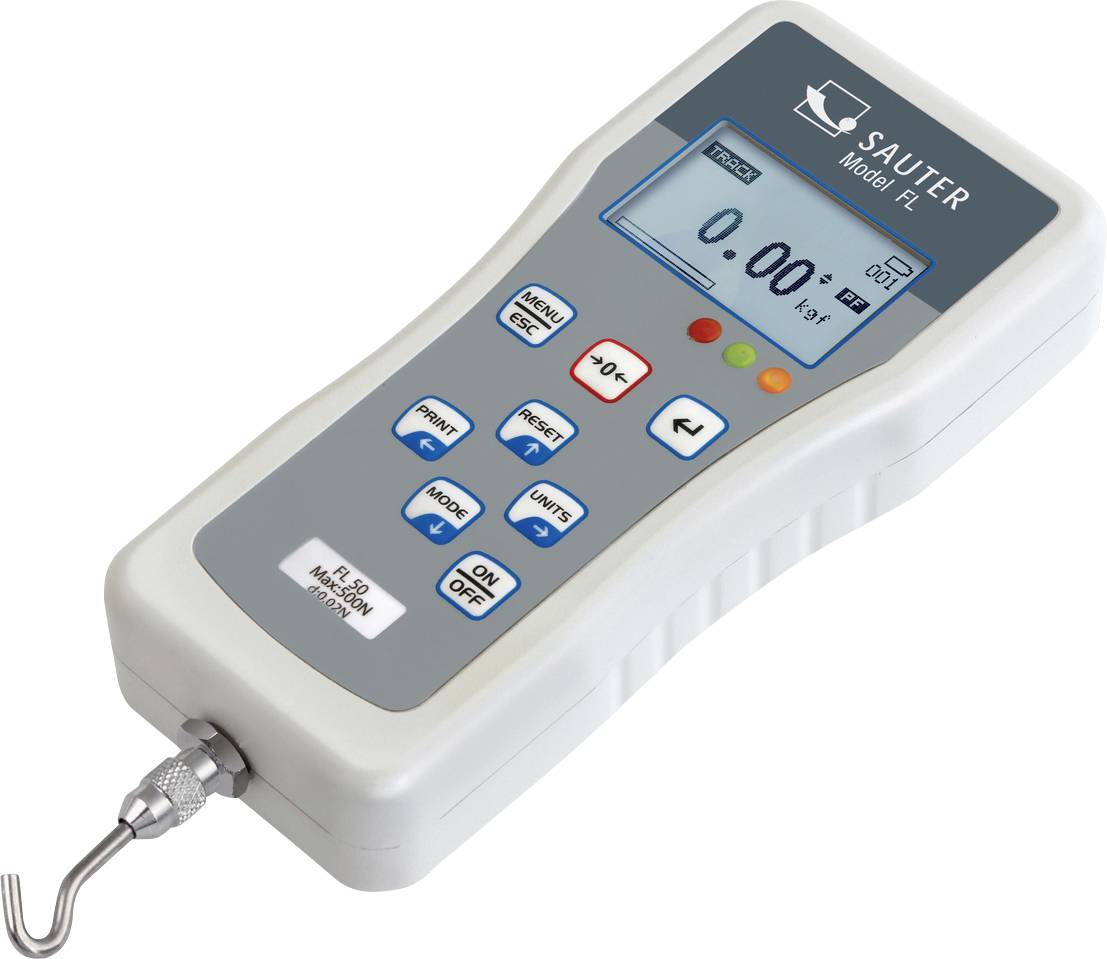

Portable digital force measuring device by Sauter, model FL, with display for showing force values, keypad interface, and hook.

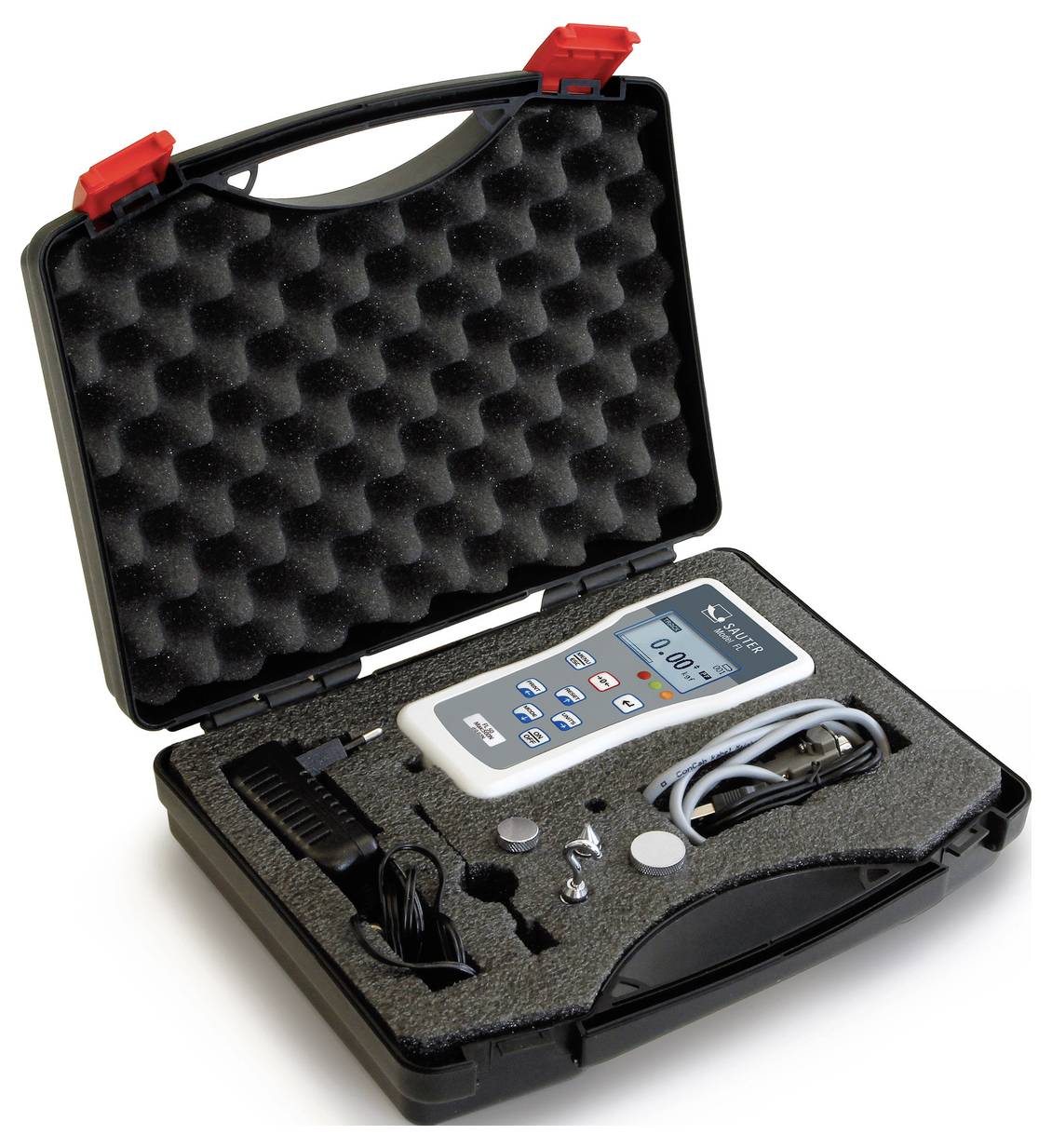

Open suitcase with electronic device, cables, and accessories. Device displays '0.00' on the screen. Case protective foam custom-moulded.

Three metallic screw-on attachments on a white surface: a pointed nozzle, a round flat head, and a hook attachment.

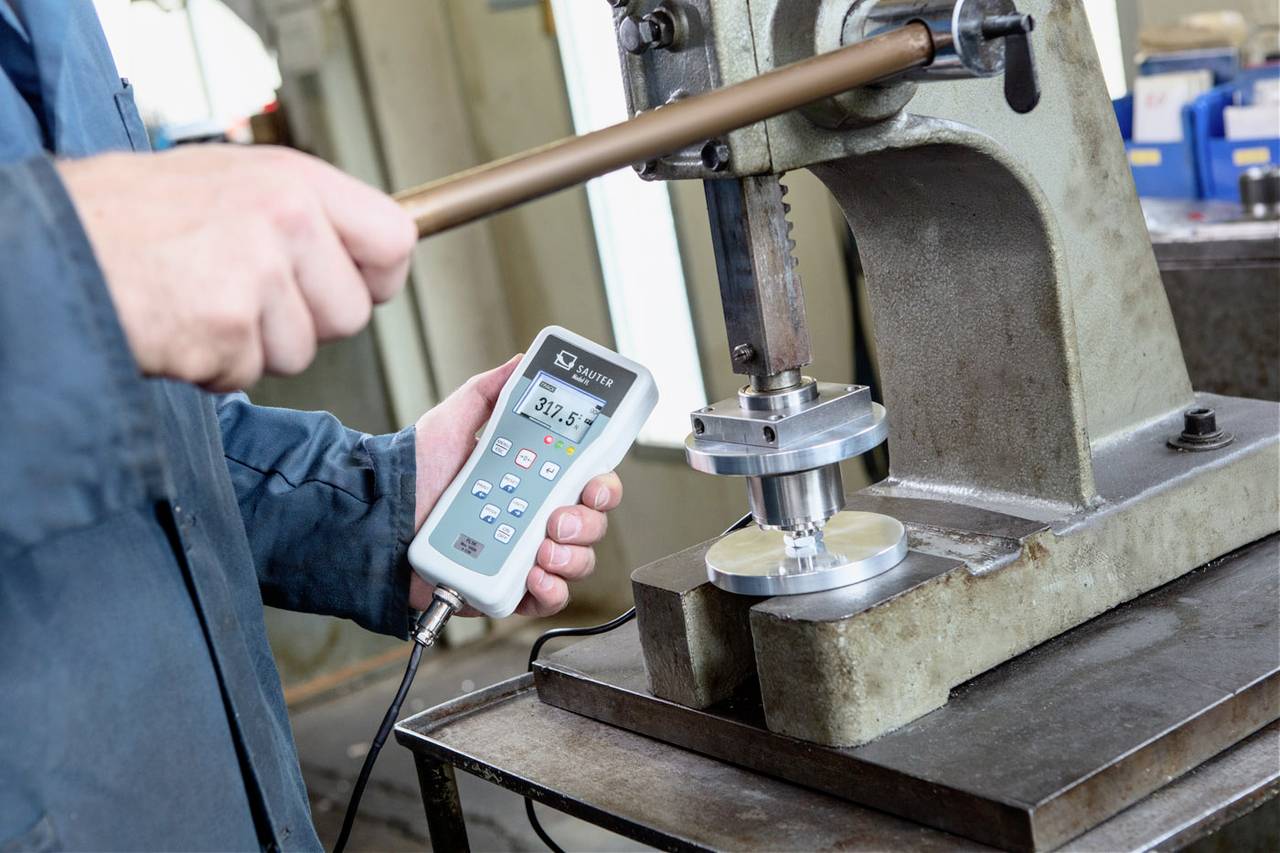

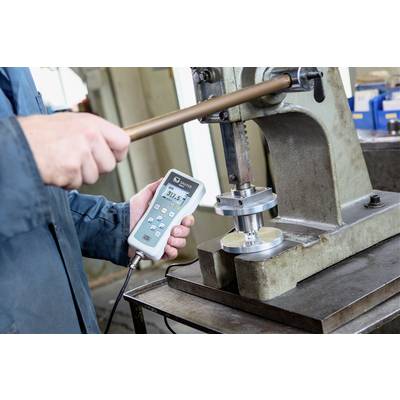

A person is conducting a hardness test on a metal piece using a testing device. A digital measuring instrument displays '312.5'.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 699.00 / piece)

€ 699.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Digital Force Gauge| Force Gauge 200 N

Premium force measuring instrument with graphic-assisted display

Technical specifications

Product type: Force gauge

Display: LCD

Force reading range (max.): 200 N

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 270 x 230 x 80 mm

Weight: 1250 g

Resolution (force): 0.1 N

Force reading range: 200 N (max.)

Width: 230 mm

Height: 80 mm

Length: 270 mm

Interfaces: USB

Calibratable: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 755690 Sauter FL 200 Force gauge 200 N (max.) Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 755690 Sauter FL 200 Force gauge 200 N (max.) Manufacturer's standards (no certificate)

Information

Information 755690 Sauter FL 200 Force gauge 200 N (max.) Manufacturer's standards (no certificate)

Description

- Reversible display with backlighting-Peak Hold function for capturing the peak value or track function for continuous measurement display-metal casing for permanent use in rugged ambient conditions - can be mounted on all SAUTER - Test Benches capacity indicator: an increasing light strip shows the remaining measurement range limit function (programming of Max/Min) with acoustic and optical signals - the ideal operating mode for efficient and error-free testing of serial parts-internal data storage for up to 999 values - continuous analog output: linear voltage signal depending on the load (0 - 2 V), supplied in a robust carrying case standard attachments: as shown-Selectable units: N, kN, Kgf, özf, Lbf

This text is machine translated.

Features

Turnable display with backlight
Real time or Peak Hold Mode to observe transcients or capture peaks
Metal housing for durable usage in harsh environmental conditions
Can be mounted on all SAUTER test benches
Capacity display: A bar lights up to show how much of the measuring range is still available
Function to set limits: Programmable high / low setpoints for go/no-go testing. Light and sound signal output - ideal mode for efficient and accurate testing of standard parts
Internal memory up to 999 values
Continuous analogue output: Linear voltage signal in relation to the load (0 - 2 V)
Delivered in a hard carrying case
Standard attachments: as shown below (not for SAUTER FL-K)
Selectable measuring units: N, kN, kgf, ozf, lbf

Scope of delivery

4 NiMH AA rechargeable batteries · Battery charger · 3 standard attachment (sharp, flat, hook) · Hard case · User manual.
This text is machine translated.

Related products can be found here

Scales Accessories Force Gauge Accessories

Description

Features

Turnable display with backlight
Real time or Peak Hold Mode to observe transcients or capture peaks
Metal housing for durable usage in harsh environmental conditions
Can be mounted on all SAUTER test benches
Capacity display: A bar lights up to show how much of the measuring range is still available
Function to set limits: Programmable high / low setpoints for go/no-go testing. Light and sound signal output - ideal mode for efficient and accurate testing of standard parts
Internal memory up to 999 values
Continuous analogue output: Linear voltage signal in relation to the load (0 - 2 V)
Delivered in a hard carrying case
Standard attachments: as shown below (not for SAUTER FL-K)
Selectable measuring units: N, kN, kgf, ozf, lbf

Scope of delivery

4 NiMH AA rechargeable batteries · Battery charger · 3 standard attachment (sharp, flat, hook) · Hard case · User manual.
This text is machine translated.
