Buy Sauter FH 5K Force Gauge N/A

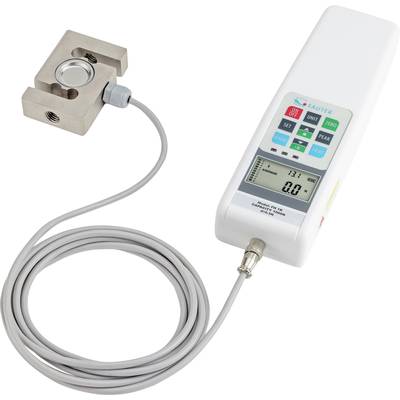

'Digital force measuring device with external sensor, display shows zero value. Suitable for precision measurements in laboratory or industrial settings.'

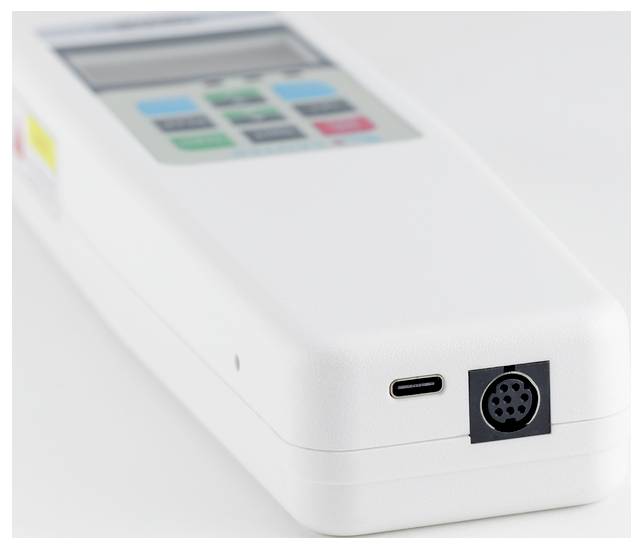

A white portable digital device with various coloured buttons and two ports on the underside, placed on a white surface.

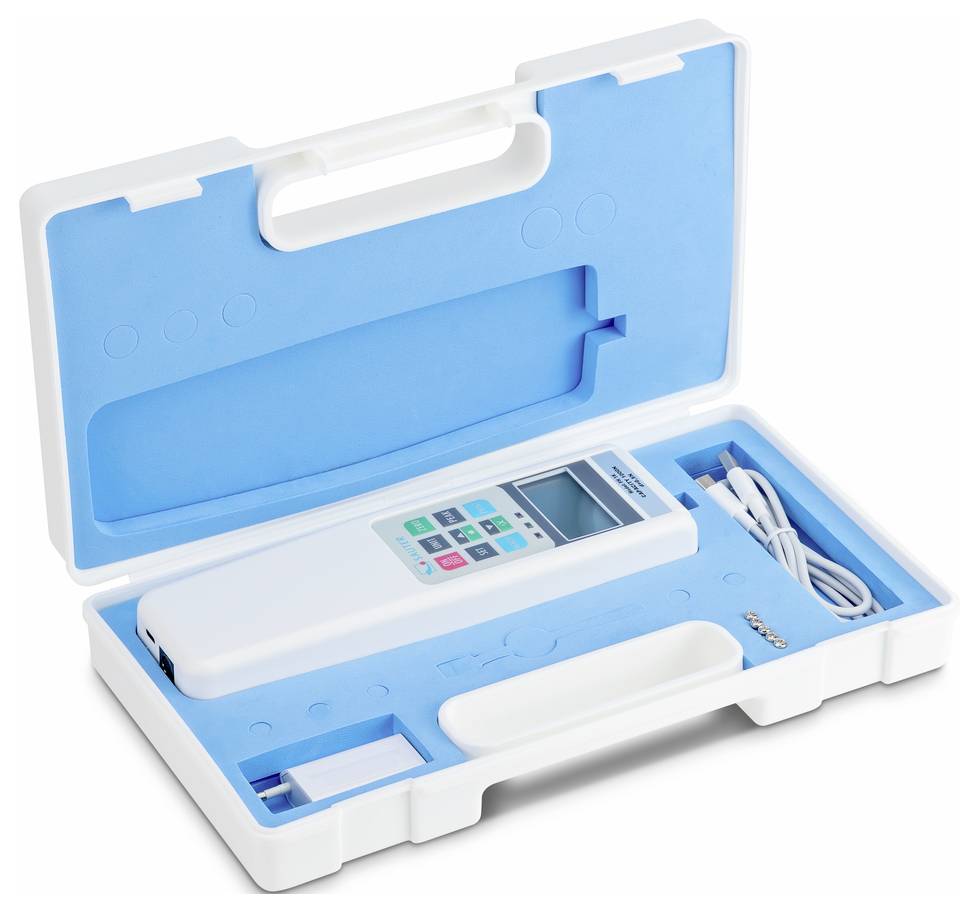

Portable digital measuring device in an open blue and white case with accessory parts such as cables and batteries.

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 970.59 / piece)

€ 970.59

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Professional force measuring device FH 5000

Limit value function for good/bad testing
RS-232 port
Mini-Statistic package

Technical specifications

Load: Swivel head
Housing material: Plastic
Battery charging time 120 min
Battery life (backlighting on): 24 hours
Battery life (backlight off): 40 hours
Auto-off interval(s) via battery/rechargeable battery mode: 1 - 60 min.
Ambient temperature: 10 - 40 °C
Overload 150%
Tolerance (% of [Max]): 0.5%
Force directions: Train, pressure
Power supply input voltage 100 - 240 V
Cable length 3 m
Dimensions when fully assembled (W x D x H) 180 × 55 × 30 mm

Power supply (details): In-built rechargeable batteries

Dim: (L x W x H) 55 x 80 x 30 mm

Weight: 1.4 kg

Height: 30 mm

Length: 55 mm

Width: 80 mm

Force reading range: 5000 N (max.)

: Manufacturer's standards (no certificate)

Display: LCD

Interfaces: RS232
USB device

Basic accuracy: 0.5 %

Force reading range (max.): 5000 N

Resolution (force): 1 N

Resolution: 1.0 N

Reading frequency: 2 kHz

Calibration service: 963-163

Product type: Force gauge

Documents & Downloads

Datasheet

Datasheet 123924 Sauter FH 5K Force Gauge N/A

User & Safety Instructions

User & Safety Instructions 123924 Sauter FH 5K Force Gauge N/A

Information

Information 123924 Sauter FH 5K Force Gauge N/A

Description

Digital power measuring device for traction and pressure detection with grasping of peak value Professional measuring performance: 2000 Hz (Measurement/s) measuring speed and 0.2% max. Measuring accuracy e.g. for highly precise outline tests. The Measured force is continuously indicated in the display in the Track mode Peak Mode: Max. Force within a search is recorded in the display Display reversal and background lighting is possible. In-built rechargeable batteries for mobile measurements
