Buy Sauter FH 100 EXT Force Gauge N/A

A digital device for measuring overpressure, with a display for showing measurement values and multiple control elements.

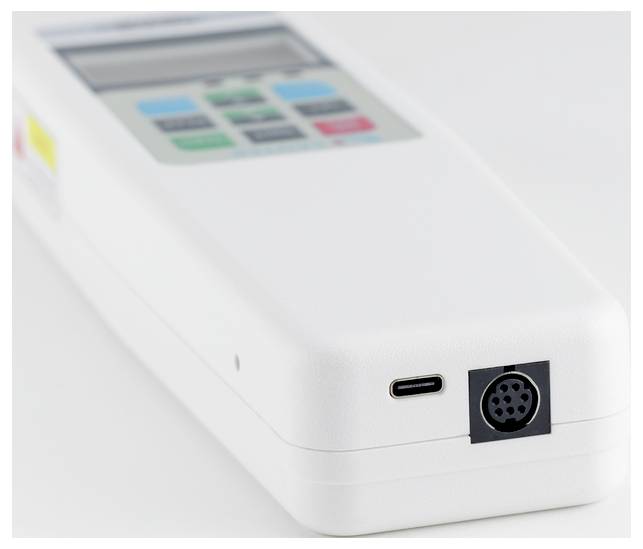

A white, portable electronic device with a screen and several coloured buttons. It has ports on its underside.

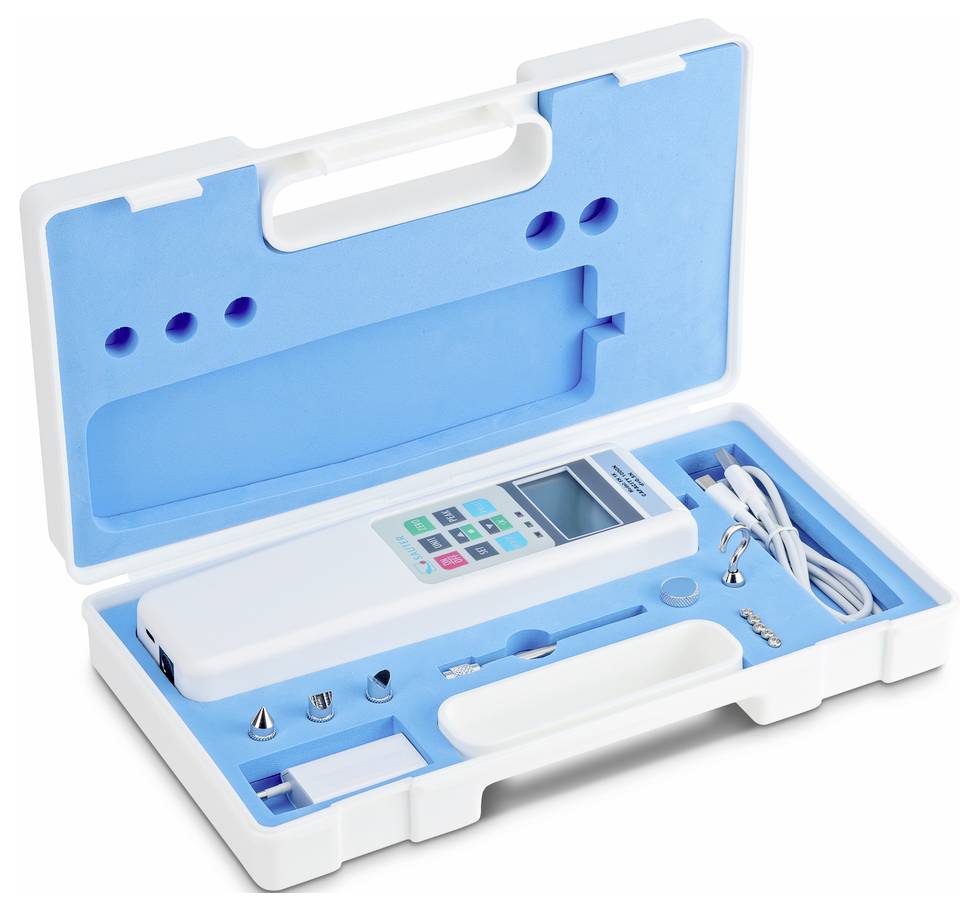

Digital measuring device set in a white case with blue interior lining, includes cables, adapters and accessories, organised and ready for use.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,029.41 / piece)

€ 1,029.41

plus VAT.

Report legal concerns

Highlights & Details

Digital Force Gauge| Force Gauge 100 N, external sensor

Force-measurement devices with external
high-resolution measuring cells for small loads

Technical specifications

Power supply (details): In-built rechargeable batteries

Dim: (L x W x H) 315 x 170 x 60 mm

Weight: 2000 g

Height: 60 mm

Length: 315 mm

Width: 170 mm

Calibratable: No

: Manufacturer's standards (no certificate)

Display: LCD

Reading frequency: 2000 Hz

UKCA: yes

Product type: Force gauge

Documents & Downloads

Datasheet

Datasheet 755613 Sauter FH 100 EXT Force Gauge N/A

User & Safety Instructions

User & Safety Instructions 755613 Sauter FH 100 EXT Force Gauge N/A

Description

Digital power measuring device for traction and pressure detection with grasping of peak value Professional measuring performance: 2000 Hz (Measurement/s) measuring speed and 0.2% max. Measuring accuracy e.g. for highly precise outline tests. The Measured force is continuously indicated in the display in the Track mode Peak Mode: Max. Force within a search is recorded in the display Display reversal and background lighting is possible. In-built rechargeable batteries for mobile measurements

Features

Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
Ideal for force measurement of very slight forces or loads in machines and plants
Real time or Peak Hold Mode to observe transcients or capture peaks
Push & Pull function to capture tensile and compressive forces
Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
Rechargeable battery pack internal, battery charger included
Depending on the display unit, only one measuring cell can be connected
Suitable for all SAUTER test stands (When ordering a test stand please state)|Technical data
External sensor: Dimensions LxWxH 76x65x22 mm, net weight approx. 0,3 kg (without sensor)
Cable length for display unit approx. 2 m
Tolerance 1 % of
Selectable measuring units: N, kg, lb
Overload protection: 150 % of |
